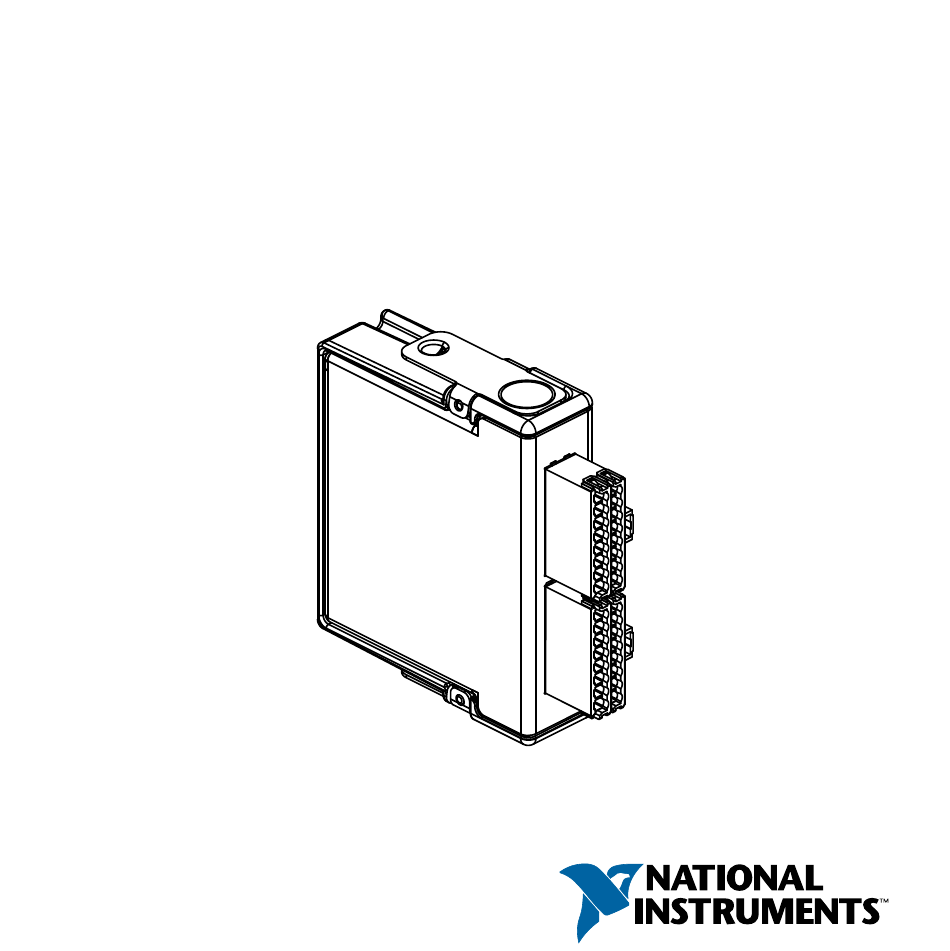

- Page 1 GETTING STARTED GUIDE NI 9470 5 V DC to 30 V DC, 8-Channel (Sourcing Output), 2 kHz C Series Digital Module...
-
Page 2: Related Documentation
This document explains how to connect to the NI 9470. Before you begin, read the NI 9470 Safety, Note Environmental, and Regulatory Information document ni.com/manuals and complete the software and hardware installation procedures in your chassis documentation. The guidelines in this document are specific to Note the NI 9470. -
Page 3: Cables And Accessories
2 M Cable 132410A-02 5 M Cable 132410A-05 If you would like to build your own cables for the NI 9470, you will need to purchase the following crimp tools or their equivalents. Refer to the manufacturer's documentation on molex.com for more information on building your own cables. - Page 4 The Ultra-Fit housing leaves the crimps exposed at the rear of the housing. NI recommends insulating the back of the connector with 25 mm (1.0 in.) diameter heat shrink. 4 | ni.com | NI 9470 Getting Started Guide...
- Page 5 Ultra-Fit Tangless 1722536112 22 AWG to 20 Crimp Terminal, Female, 0.76µm Gold (Au) Plating, 20-22 Ultra-Fit Tangless 1722536012 18 AWG to 16 Crimp Terminal, Female, 0.76µm Gold (Au) Plating, 16-18 NI 9470 Getting Started Guide | © National Instruments | 5...
- Page 6 NI 9470 Pinout DO0– Vsup0 DO0+ DO1– Vsup1 DO1+ DO2– Vsup2 DO2+ DO3– Vsup3 DO3+ DO4– Vsup4 DO4+ DO5– Vsup5 DO5+ DO6– Vsup6 DO6+ DO7– DO7+ Vsup7 6 | ni.com | NI 9470 Getting Started Guide...
- Page 7 Table 4. Signal Descriptions Signal Description Common reference connection for the power supply Digital output return (negative) connection Digital output source (positive) connection DC voltage power supply connection NI 9470 Block Diagram NI 9470 Getting Started Guide | © National Instruments | 7...
- Page 8 Connecting the NI 9470 You can connect a variety of industrial devices, such as solenoids, valves, motors, actuators, relays, and lamps to the NI 9470. Connect the device between the DO+ and DO- pins, and connect the external power supply. Use cables 20 m or shorter for connections from DO- and DO+ to the load.
- Page 9 V et COM est sous tension. Complete the following steps to connect an external power supply to the NI 9470. Use cables 10 m or shorter for connections from V to COM to the supply to reduce voltage noise and ripple.
- Page 10 2,200 µF of bulk capacitance close to the NI 9470 module. 1. Connect the positive lead of the power supply to V 2. Connect the negative lead of the power supply to COM. I/O Protection Each DO+ channel of the NI 9470 has short-circuit protection.
- Page 11 Refer to the product Declaration of Conformity (DoC) for additional regulatory compliance information. To obtain product certifications and the DoC for NI products, visit ni.com/product- certifications, search by model number, and click the appropriate link. NI 9470 Getting Started Guide | © National Instruments | 11...
-
Page 12: Where To Go Next
NI 9470 Datasheet NI 9470 Datasheet NI-RIO Help NI-DAQmx Help LabVIEW FPGA Help LabVIEW Help RELATED INFORMATION C Series Documentation Services ni.com/services & Resources ni.com/info cseriesdoc Located at ni.com/manuals Installs with the software 12 | ni.com | NI 9470 Getting Started Guide... -
Page 13: Worldwide Support And Services
1 866 ASK MYNI (275 6964). For support outside the United States, visit the Worldwide Offices section of ni.com/ niglobal to access the branch office websites, which provide up- to-date contact information. NI 9470 Getting Started Guide | © National Instruments | 13... - Page 14 For patents covering NI products/technology, refer to the appropriate location: Help»Patents in your software, file on your media, or the National Instruments Patent Notice at patents.txt ni.com/ . You can find information about end-user license agreements (EULAs) and third-party patents legal notices in the readme file for your NI product.
