Specification

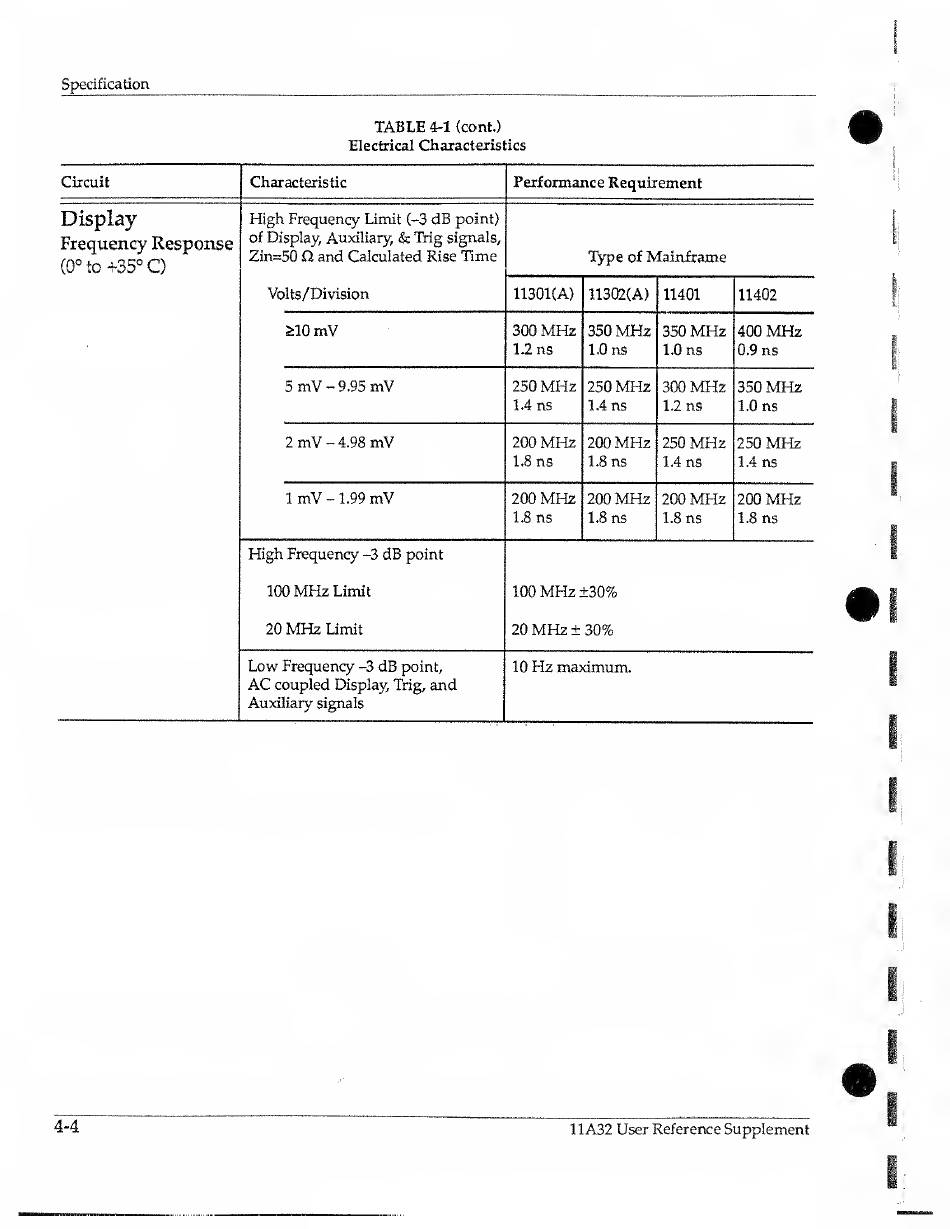

TABLE 4-1 (cont.)
Electrical Characteristics
Circuit Characteristic Performance Requirement
Display
Frequency Response
(0° to +35° C)
High Frequency Limit (-3 dB point)
of Display, Auxiliary, & Trig signals,
Zin=50 Q, and Calculated Rise Time
Type of Mainframe
Volts/Division 11301(A) 11302(A)
11401 11402
>10 mV 300 MHz
1.2 ns
350 MHz
1.0 ns
350 MHz
1.0 ns
400 MHz
0.9 ns
5 mV-9.95 mV
250 MHz
1.4 ns
250 MHz
1.4 ns
300 MHz
1.2 ns
350 MHz
1.0 ns
2 mV - 4.98 mV 200 MHz
1.8 ns
200 MHz
1.8 ns
250 MHz
1.4 ns
250 MHz
1.4 ns
1 mV -1.99 mV 200 MHz
1.8 ns
200 MHz
1.8 ns
200 MHz
1.8 ns
High Frequency -3 dB point
100 MHz Limit
100 MHz ±30%
20 MHz Limit 20 MHz ± 30%
Low Frequency -3 dB point,
AC coupled Display, Trig, and
Auxiliary signals
10 Hz maximum.
