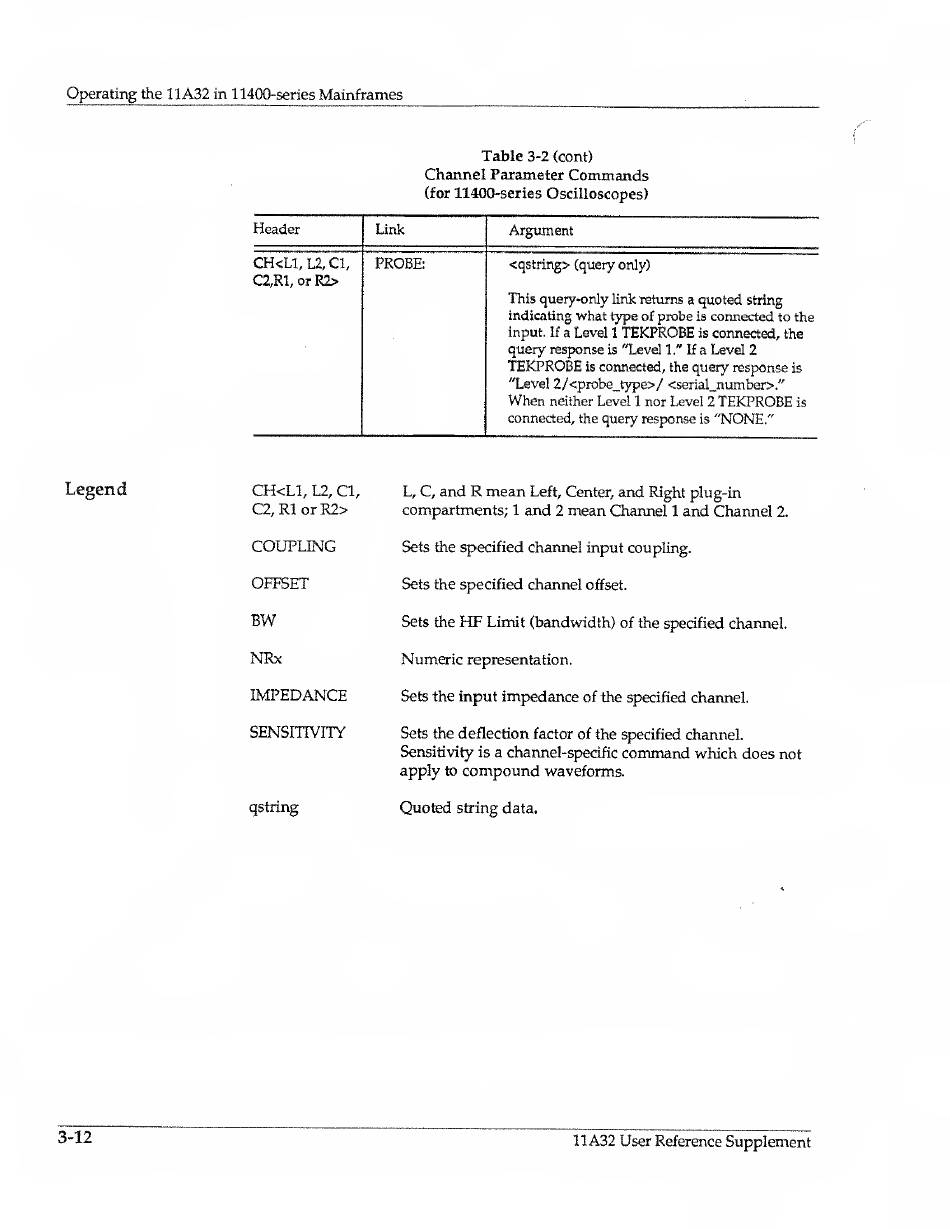

Operating the 11A32 in 11400-series Mainframes
Table 3-2 (cont)
Channel Parameter Commands
(for 11400-series Oscilloscopes)
Header Link Argument
CHcLl, L2, Cl,
C2,R1, or R2>
PROBE:
<qstring> (query only)
This query-only link returns a quoted string
indicating what type of probe is connected to the
input. If a Level 1 TEKPROBE is connected, the
query response is "Level 1." If a Level 2
TEKPROBE is connected, the query response is
"Level 2/<probe_type>/ <serial_number>
When neither Level 1 nor Level 2 TEKPROBE is
connected, the query response is "NONE."
Legend
CHcLl, L2, Cl,
C2, R1 or R2>
L, C, and R mean Left, Center, and Right plug-in
compartments; 1 and 2 mean Channel 1 and Channel 2.
COUPLING
Sets the specified channel input coupling.
OFFSET
Sets the specified channel offset.
BW
Sets the HF Limit (bandwidth) of the specified channel.
NRx
Numeric representation.
IMPEDANCE
Sets the input impedance of the specified channel.
SENSITIVITY
Sets the deflection factor of the specified channel.
Sensitivity is a channel-specific command which does not
apply to compound waveforms.
qstring
Quoted string data.
