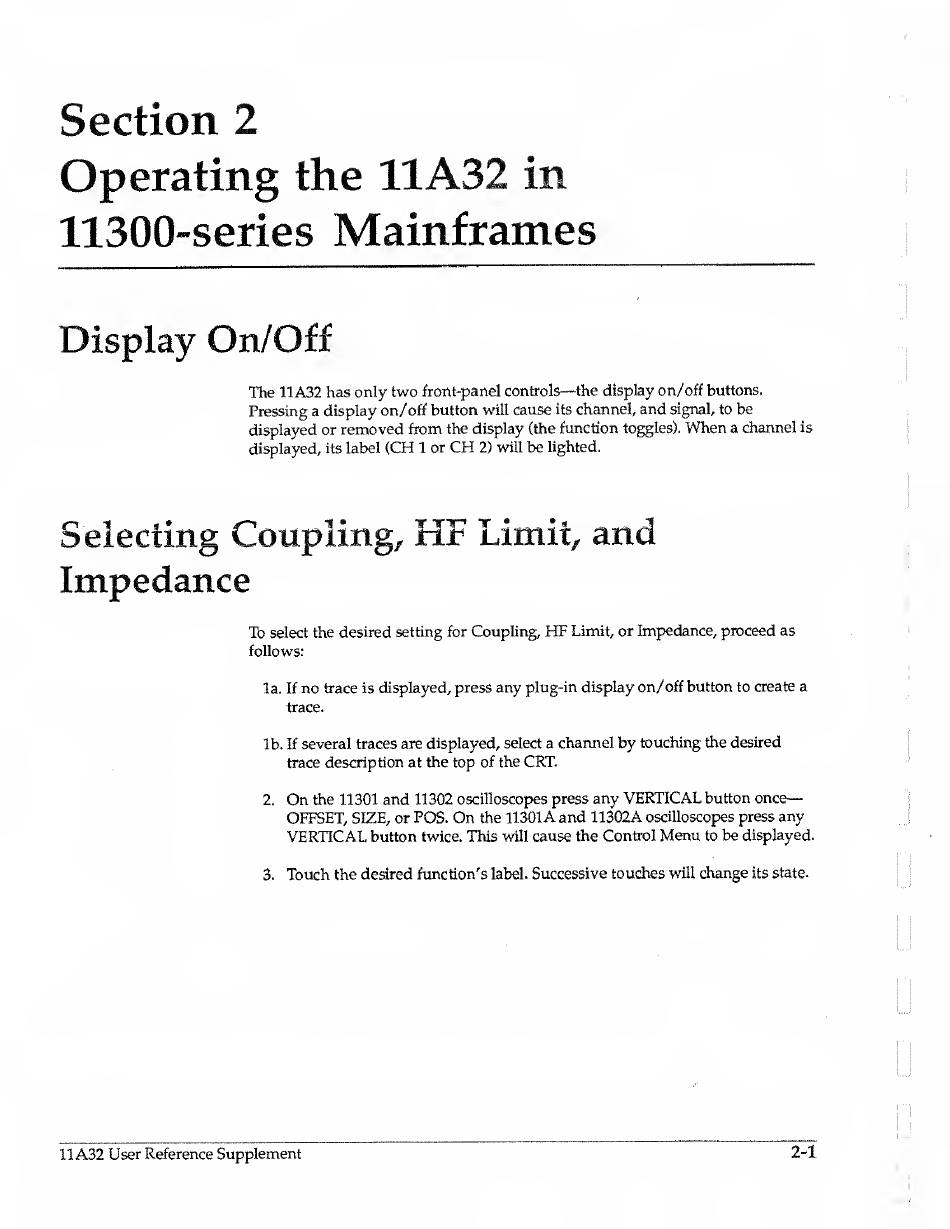

Operating the 11A32 in
11300-series Mainframes
Display On/Off
The 11A32 has only two front-panel controls—the display on/off buttons.
Pressing a display on/off button will cause its channel, and signal, to be
displayed or removed from the display (the function toggles). When a channel is
displayed, its label (CH 1 or CH 2) will be lighted.
To select the desired setting for Coupling, HF Limit, or Impedance, proceed as
follows:
la. If no trace is displayed, press any plug-in display on/off button to create a
trace.
lb. If several traces are displayed, select a channel by touching the desired
trace description at the top of the CRT.
2. On the 11301 and 11302 oscilloscopes press any VERTICAL button once—
OFFSET, SIZE, or POS. On the 11301A and 11302A oscilloscopes press any
VERTICAL button twice. This will cause the Control Menu to be displayed.
3. Touch the desired function's label. Successive touches will change its state.
11A32 User Reference Supplement
2-1
