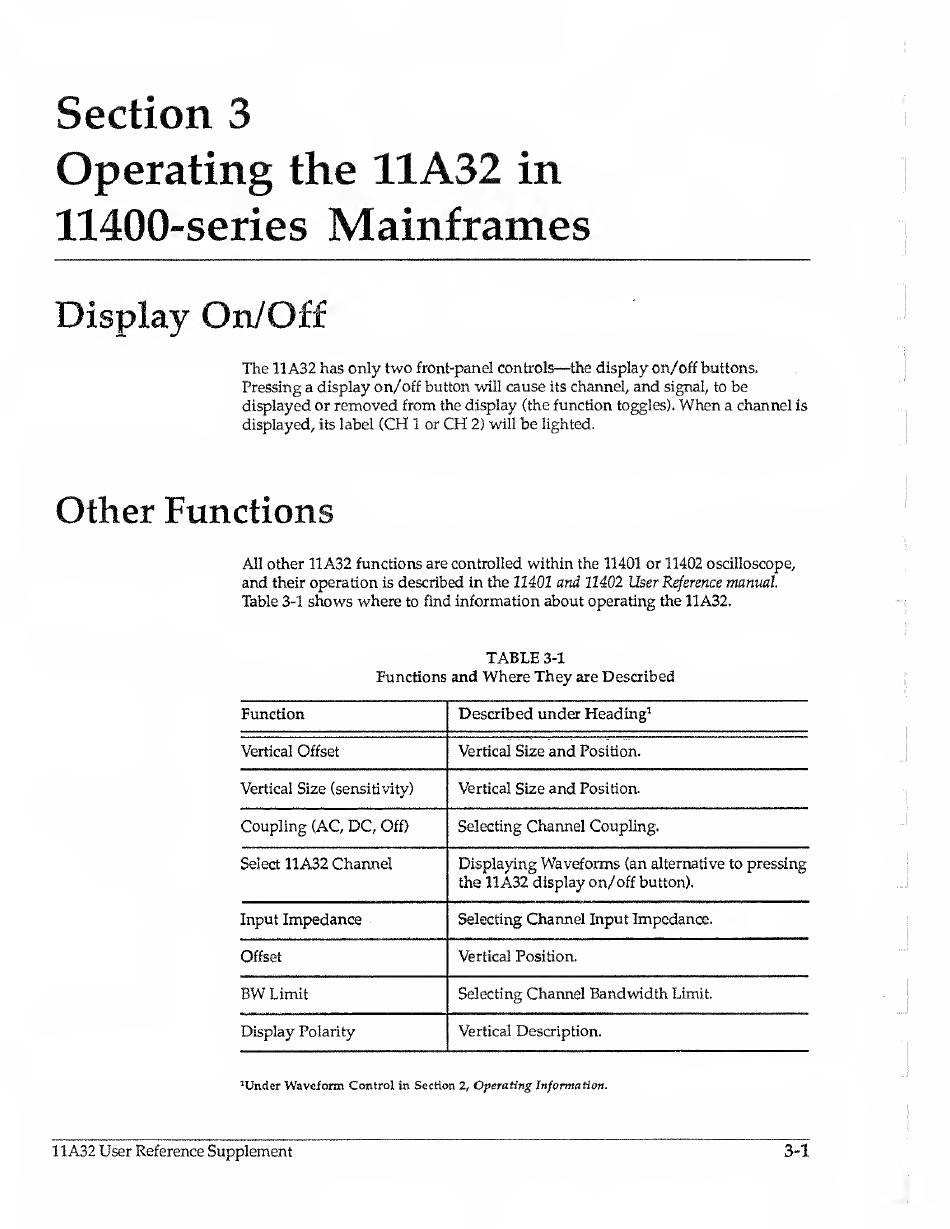

Operating the 11A32 in
11400-series Mainframes
The 11A32 has only two front-panel controls—the display on/off buttons.
Pressing a display on/off button will cause its channel, and signal, to be
displayed or removed from the display (the function toggles). When a channel is
displayed, its label (CH 1 or CH 2) will be lighted.
All other 11A32 functions are controlled within the 11401 or 11402 oscilloscope,
and their operation is described in the 11401 and 11402 User Reference manual.
Table 3-1 shows where to find information about operating the 11A32.
TABLE 3-1
Functions and Where They are Described
Function
Described under Heading1
Vertical Offset Vertical Size and Position.
Vertical Size (sensitivity) Vertical Size and Position.
Coupling (AC, DC, Off)
Selecting Channel Coupling.
Select 11A32 Channel Displaying Waveforms (an alternative to pressing
the 11A32 display on/off button).
Input Impedance
Selecting Channel Input Impedance.
Offset Vertical Position.
BW Limit
Selecting Channel Bandwidth Limit.
Display Polarity Vertical Description.
1Undcr Waveform Control in Section 2,
Operating Information.
11A32 User Reference Supplement
3-1
