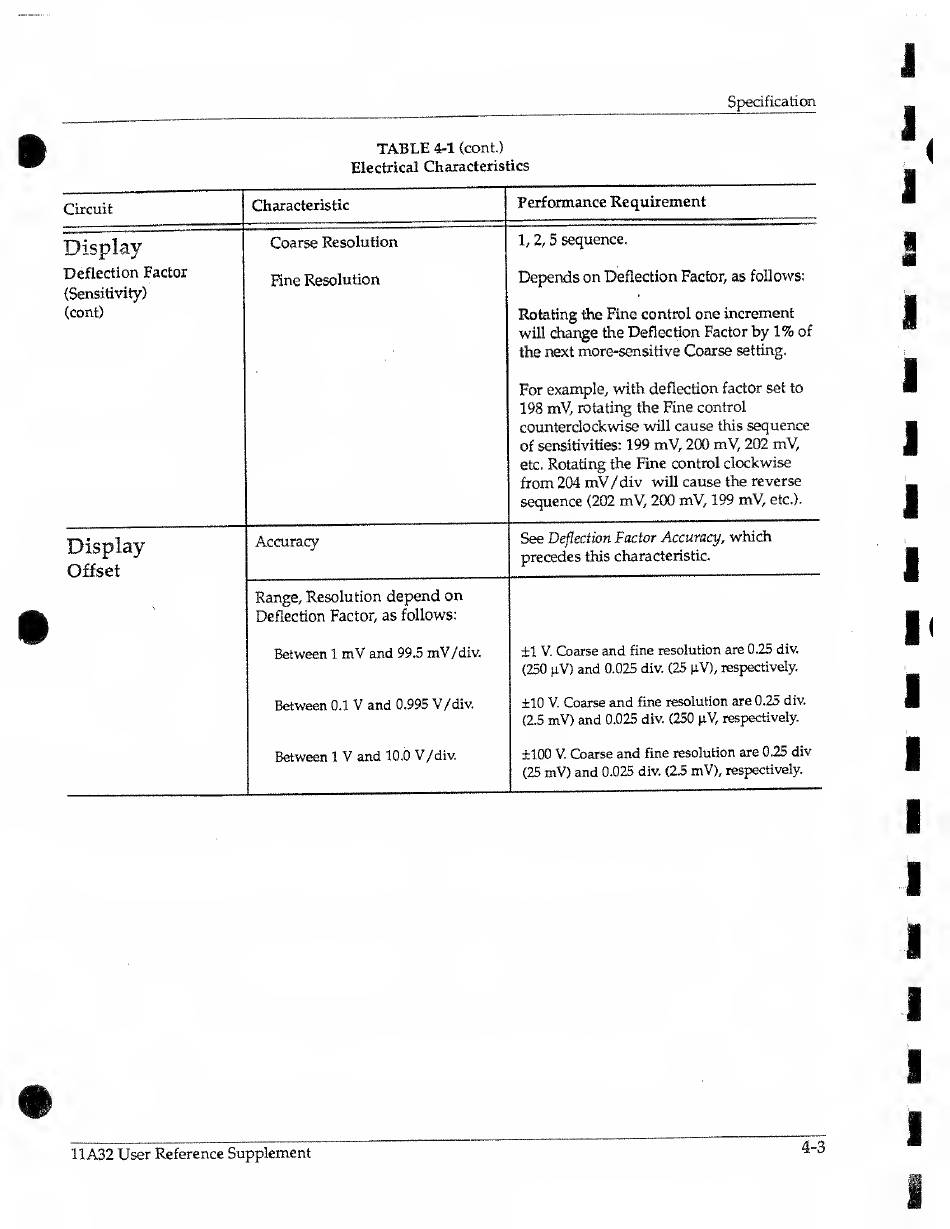

Tektronix 11A32 User's Reference Manual page 39

Specification
TABLE 4-1 (cont.)
Electrical Characteristics
Circuit
Characteristic
Performance Requirement
Display
Deflection Factor
(Sensitivity)
(cont)
Coarse Resolution
Fine Resolution
1, 2,5 sequence.
Depends on Deflection Factor, as follows:
Rotating the Fine control one increment
will change the Deflection Factor by 1% of
the next more-sensitive Coarse setting.
For example, with deflection factor set to
198 mV, rotating the Fine control
counterclockwise will cause this sequence
of sensitivities: 199 mV, 200 mV, 202 mV,
etc. Rotating the Fine control clockwise
from 204 mV/div will cause the reverse
sequence (202 mV, 200 mV, 199 mV, etc.).
Display
Offset
Accuracy
See Deflection Factor Accuracy, which
precedes this characteristic.
Range, Resolution depend on
Deflection Factor, as follows:
Between 1 mV and 99.5 mV/div.
±1 V. Coarse and fine resolution are 0.25 div.
(250 pV) and 0.025 div. (25 jiV), respectively.
Between 0.1 V and 0.995 V/div.
±10 V. Coarse and fine resolution are 0.25 div.
(2.5 mV) and 0.025 div. (250 pV, respectively.
Between 1 V and 10.0 V/div.
±100 V. Coarse and fine resolution are 0.25 div
(25 mV) and 0.025 div. (2.5 mV), respectively.
11A32 User Reference Supplement
