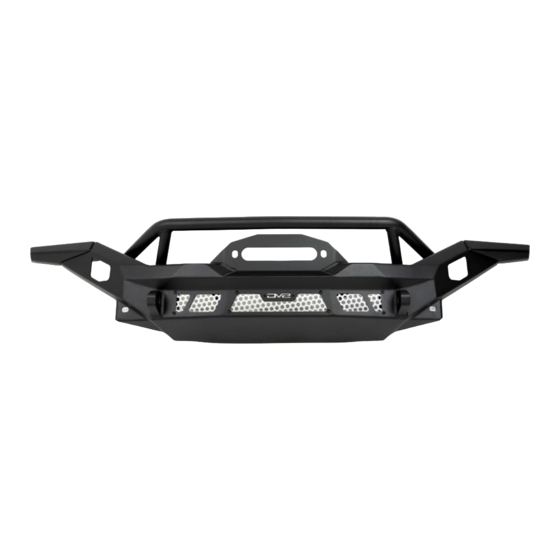

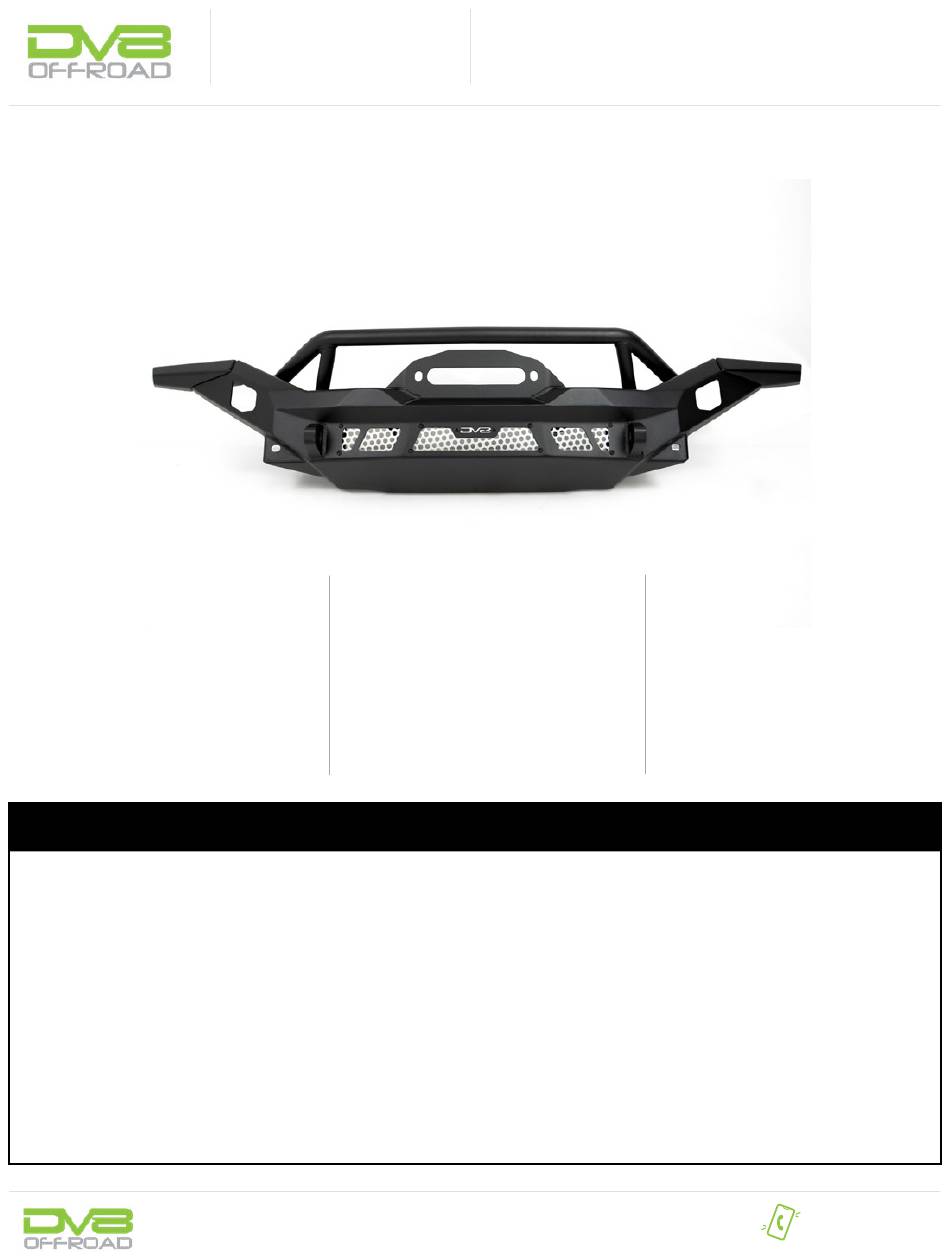

FULL WIDTH FRONT BUMPER
18+/20+ JEEP WRANGLER JL & GLADIATOR JT
FBJL-12
TOOLS
REQUIRED
- 19mm Deep Socket
- 13, 16mm Socket
- 17mm Wrench
- #6 Allen Bit
- Trim Clip Tool
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 2 persons
Little skill level required, however,
additional help is required for
removal and installation of
bumpers.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 3 Hours
Time to install this should
take about three hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Related Manuals for DVB FBJL-12
Summary of Contents for DVB FBJL-12
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM FULL WIDTH FRONT BUMPER 18+/20+ JEEP WRANGLER JL & GLADIATOR JT FBJL-12 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED - 19mm Deep Socket - Novice/Intermediate - 3 Hours - 13, 16mm Socket...
- Page 2 INSTALLATION MANUAL STEP 1 | UNINSTALL OF FRONT BUMPER Using a push pin removal tool, remove the two push pins securing the plastic trim piece under the grille and behind the bumper. NEED HELP? 855-680-9595...
- Page 3 INSTALLATION MANUAL STEP 2 | Using a 13mm socket, remove the seven bolts securing the skid plate to the vehicle, and set off to the side. NEED HELP? 855-680-9595...
- Page 4 INSTALLATION MANUAL STEP 3 | Disconnect the fog lights by unplugging the wiring connectors located on passenger frame rail directly behind the bumper. NEED HELP? 855-680-9595...
- Page 5 INSTALLATION MANUAL STEP 4 | Using a 19mm deep socket, remove the eight nuts securing the bumper, located directly behind it. Once all nuts are removed, pull bumper from the vehicle and set off to the side. Note: Once nuts are removed, bumper can become loose and fall.
- Page 6 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concerns, please contact the company the product was purchased from. Extra hardware may be included with the hardware kit. HARDWARE INCLUDED (18) M10x30 Hex (20) M10 Nylon Lock Nuts (2) M10x40 Allen (4) M10 Flat Nuts...
- Page 7 INSTALLATION MANUAL STEP 7 | Peel the provided foam and install it by pressing it into place on the wings. Repeat process for other side. STEP 8 | Install the wings using the provided M10x30 Hex Hardware with a 16mm socket and 17mm wrench. (Use hex head hardware unless specified.
- Page 8 INSTALLATION MANUAL STEP 9 | If you are installing a winch, do so at this time using the hardware provided with the winch. We provided cutouts in the winch plate to cleanly route wiring for a winch. NEED HELP? 855-680-9595...
- Page 9 INSTALLATION MANUAL STEP 10 | If you are installing a light bar, install the light bar mounts onto the light using the hardware provided with the light bar. Note: We are using a 20” single row elite series light bar for our install. Part Number: BE20SW105W STEP 12 | Install the light bar...
- Page 10 INSTALLATION MANUAL STEP 13 | If you are installing pod lights, do so at this time using the hardware provided with the light. Note: We are using 3” elite series pod lights for our install. Part Number: BE3EW40W STEP 14 | With assistance, lift the bumper to the vehicle while aligning the studs to the mounting holes.
- Page 11 INSTALLATION MANUAL STEP 15 | Secure the outer hardware using a 17mm wrench and #6 allen bit, and the inner hardware using a 16mm socket. 16mm 17mm STEP 16 | If you are installing a fairlead, do so at this time using the hardware provided with the fairlead.
- Page 12 INSTALLATION MANUAL STEP 17 | Congrats! You are finished with the install of the 18+/20+ JL/JT Wrangler/Gladiator Full Width Front Bumper. NEED HELP? 855-680-9595...
