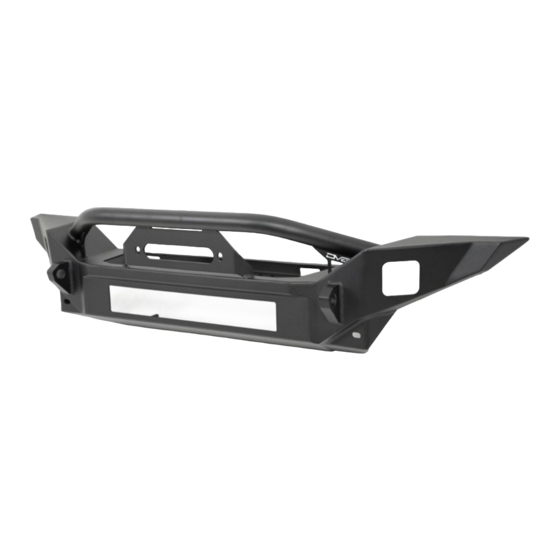

MID WIDTH FRONT BUMPER
18+/20+ JEEP WRANGLER JL & GLADIATOR JT
FBJL-07
TOOLS
REQUIRED
- 13mm, 16mm, 18mm, 19mm Socket
- 19mm Deep Socket
- 13mm Wrench (2x)
- 5mm, 6mm Allen Bit
- Trim Clip Tool
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Novice/Intermediate
- 2 persons
Little skill level required, you
can easily install it by yourself
however, additional help is required
for removal and installation of
bumpers.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 3 Hours
Time to install this should
take about three hours.
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
NEED HELP?
MANUAL
REQUIRED
855-680-9595
Advertisement
Related Manuals for DVB FBJL-07
Summary of Contents for DVB FBJL-07
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM MID WIDTH FRONT BUMPER 18+/20+ JEEP WRANGLER JL & GLADIATOR JT FBJL-07 TOOLS REQUIRED SKILL LEVEL TIME REQUIRED - 13mm, 16mm, 18mm, 19mm Socket - Novice/Intermediate - 3 Hours...
- Page 2 INSTALLATION MANUAL STEP 1 | UNINSTALL OF FRONT BUMPER Using a push pin removal tool, remove the two push pins securing the plastic trim piece under the grille and behind the bumper. NEED HELP? 855-680-9595...
- Page 3 INSTALLATION MANUAL STEP 2 | Using a 13mm socket, remove the seven bolts securing the skid plate to the vehicle, and set off to the side. NEED HELP? 855-680-9595...
- Page 4 INSTALLATION MANUAL STEP 3 | Disconnect the fog lights by unplugging the wiring connectors located on passenger frame rail directly behind the bumper. NEED HELP? 855-680-9595...
- Page 5 INSTALLATION MANUAL STEP 4 | Using a 19mm deep socket, remove the eight nuts securing the bumper, located directly behind it. Once all nuts are removed, pull bumper from the vehicle and set off to the side. Note: Once nuts are removed, bumper can become loose and fall.
- Page 6 INSTALLATION MANUAL Begin by unpacking all items and inspecting for missing pieces or damage. If you have any concens, please contact the company the product was purhcased from. Extra hardware may be included with the hardware kit. HARDWARE INCLUDED (6) M10x35 Hex (6) M10 Flat Nuts (4) M10x30 Hex (2) M10x20 Hex...
- Page 7 INSTALLATION MANUAL STEP 8 | Place the cross brace and light bar into the bumper and loosely secure the brace using the provided M10x30 hardware with a 17mm and 16mm socket/wrench. Check the placement of the light bar on the bumper and determine if adjustment is necessary.
- Page 8 INSTALLATION MANUAL STEP 9 | With the light secured to the mount, re-install the crossbrace using the M10x30 hardware with a 16mm and 17mm wrench/socket. STEP 11 | Check one more time that the light is centered before continuing. Finish securing the light bar mounts to the cross brace using a 16mm and 17mm wrench.
- Page 9 INSTALLATION MANUAL STEP 12 | If you are installing pod lights, do so at this time using the hardware provided with the light. Note: We are using 3” elite series pod lights for our install. Part Number: BE3EW40W If you are installing a winch, do so at this time using the hardware provided with the winch.
- Page 10 INSTALLATION MANUAL STEP 13 | With assistance, lift the bumper to the vehicle and secure it to the vehicle using the provided M10x35 hardware with a 16mm socket. For the lower outer corners, we provide allen head hardward for a cleaner look. Use a 6mm allen bit and 17mm wrench to tighten this hardware.
- Page 11 INSTALLATION MANUAL STEP 15 | Congrats! You are finished with the install of the Jeep JT/JL Mid Width Front Bumper. NEED HELP? 855-680-9595...
