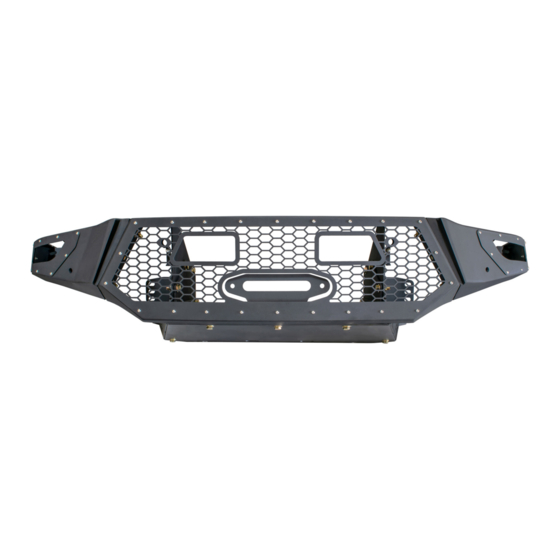

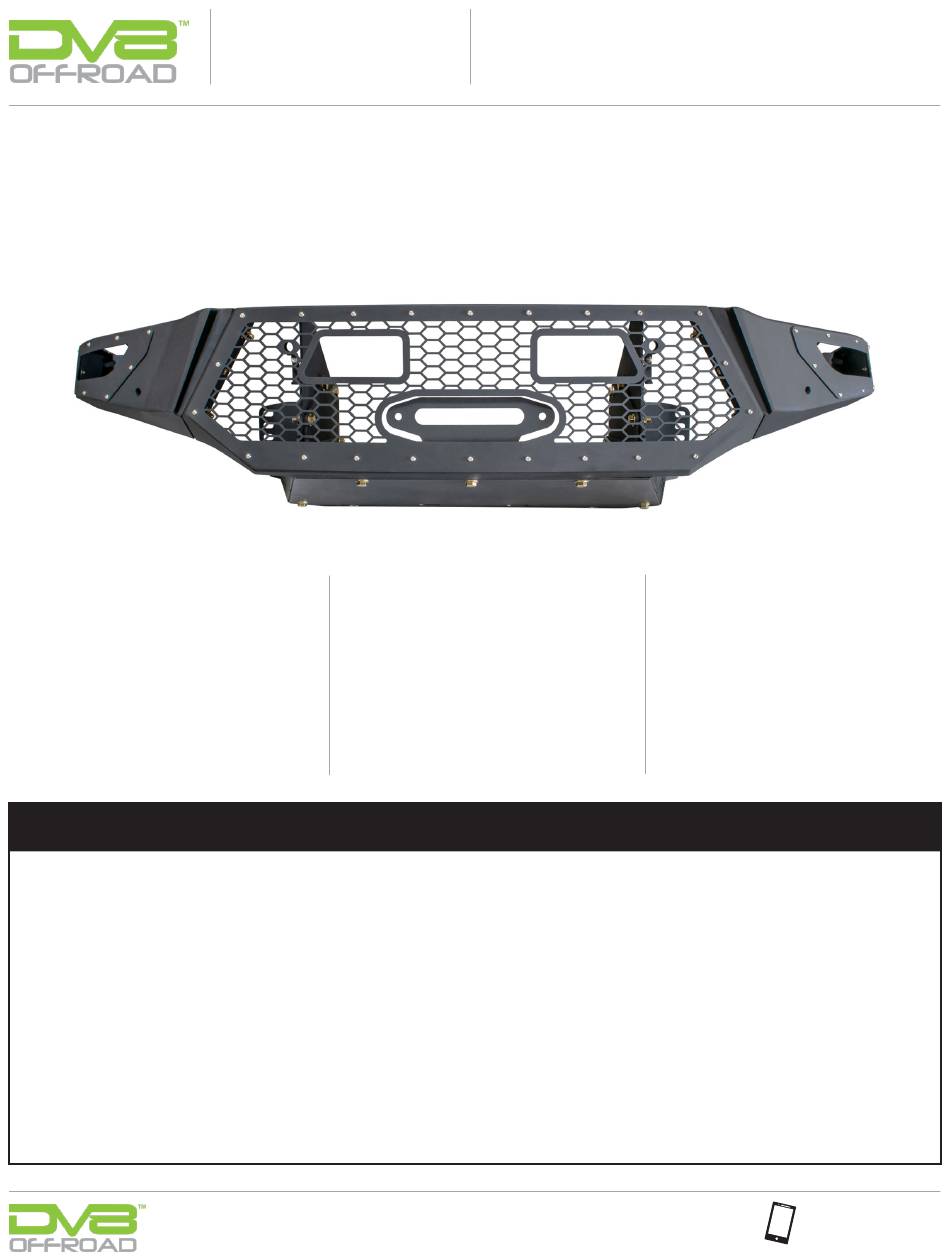

FBGX-01
2014+ LEXUS GX460
FRONT BUMPER
TOOLS
REQUIRED
- 18, 14, 16, 13, 10,
- 15/64 Drill bit
- Drill
8mm socket/wrench
- Grinder or Razor
- 17mm wrench
- Floor Jack
- Flat head
- Phillips Head
WARNINGS/CAUTIONS BEFORE STARTING INSTALLATION
Before you install this kit —
instructions, warnings, cautions, and notes contained in
this installation instruction guide. Consult your vehicle
owner's manual for proper disconnection of electrical and
lifting of vehicle if required for installation of this product.
This install may require some technical skills and
knowledge of basic mechanical work. If you do not feel that
you are capable of performing this install please take this
product to a trained professional.
After reading this guide please contact us with any
questions or concerns before installing product.
Customer Service: 855-680-9595
DV8 Offroad is not responsible for any bodily injury or harm to you
or your vehicle as a result of an improper install.
6400 SYCAMORE CANYON BLVD.
RIVERSIDE, CALIFORNIA 92507
855-680-9595
WWW.DV8OFFROAD.COM
SKILL
LEVEL
- Intermediate
- 1 (you) to 2 persons
Intermediate skill level required
due to cutting involved. Install
can be done by yourself however,
additional help will be useful.
Read and understand all
PRODUCT
INSTALLATION
TIME
- 3-4 Hours
Time to install this should take
about three to four hours
Proper installation of this kit required knowledge of the factory
recommended procedures for removal and installation of original
equipment components. We recommend that the factory shop manual
and any special tools needed to service your vehicle be on hand during
the installation. Installation of this kit without proper knowledge of the
factory recommended procedures may affect the performance of these
components and the safety of the vehicle
• Always wear eye protection when operating power tools
Inspect all contents of this package to make sure product is not damaged
and all installation hardware has been included. If parts are missing from
kit, please be prepared to provide the following information
1. Name of purchase location
2. Bar Code on side of box
3. Date above bar code
4. Date inside box cover
MANUAL
REQUIRED
855-680-9595
NEED HELP?
Advertisement
Related Manuals for DVB FBGX-01
Summary of Contents for DVB FBGX-01
- Page 1 6400 SYCAMORE CANYON BLVD. PRODUCT INSTALLATION MANUAL RIVERSIDE, CALIFORNIA 92507 855-680-9595 WWW.DV8OFFROAD.COM FBGX-01 2014+ LEXUS GX460 FRONT BUMPER TOOLS REQUIRED SKILL LEVEL TIME REQUIRED - 18, 14, 16, 13, 10, - 15/64 Drill bit - Intermediate - 3-4 Hours - Drill...
- Page 2 INSTALLATION MANUAL STEP Begin by opening all pieces included and inspecting them prior to install. If you are missing any components or have any questions prior to your install, please contact the company the item was purchased from. Open the hood to the vehicle and start by removing the chrome accent on the grill.
- Page 3 INSTALLATION MANUAL STEP Unplug the factory fog lights and the four sensors leaving the lights and the sensors in the bumper. Secure the wiring up and out of the way to prevent any damage during install. STEP Once all items are unplugged, you are ready to mark for cutting.
- Page 4 INSTALLATION MANUAL STEP Once bumper is cut, replace the chrome insert. Remove the factory crash bar from the four bolts on each side of the frame (Not shown in image). Keep the factory hardware since this will be reused. Note: We added ¼” trim edging to our cut edge.
- Page 5 INSTALLATION MANUAL STEP Using the factory 14mm head, loosely mount the two winch plate mounts. With the two brackets in place, loosely attached the winch plate to the two main brackets using the provided M12 hardware. STEP Install the skid plate mounts next.
- Page 6 INSTALLATION MANUAL STEP If you are going to run a winch, now is the time to install it. Tighten winch down until secure. Note: This bumper was designed to use a “Hawse” style fairlead. Most synthetic rope winches will come with them; however, steel breaded winches will need a steel Hawse fairlead to be compatible.
- Page 7 INSTALLATION MANUAL STEP Next you are ready to tighten down all the current components. We used a floor jack and raised the center section until the winch plate brackets were straight. These were tightened down and secured. Next, secure the six M12 bolts that attach the winch plate to the brackets.
- Page 8 INSTALLATION MANUAL STEP The sensors are easily removed from the factory bumper by twisting them out. The sensors are fragile, so we recommend taking time on removing stubborn ones. Ensuring the sensors are in the same location as the factory bumper, place them into the bumper and secure using the small arm attached.
- Page 9 INSTALLATION MANUAL STEP Next, using the provided M10 hardware, attach the wing support on the driver side to the frame as shown. Leave these very loose. Using M12 bolts, pull bracket to the bumper and secure. This will be tight and may seem incorrect at first, but it is designed to use tension.
- Page 10 INSTALLATION MANUAL STEP If utilizing our light brackets, install lights at this time. STEP Install the center sensors onto the grill the same as the wings. If running a winch, install the fairlead first. You will use this to help align the grill onto the bumper.
- Page 11 INSTALLATION MANUAL STEP Lastly, install the skid plate. Using the provided M12 bolts, secure the front three. The rear two M12 will be tightened with the provided nut and washers. Lastly, use the two provided M6 hardware to attach the two rearmost holes in the skid plate.
