Related Manuals for Furniture of America Colin CM7909A-T
Summary of Contents for Furniture of America Colin CM7909A-T

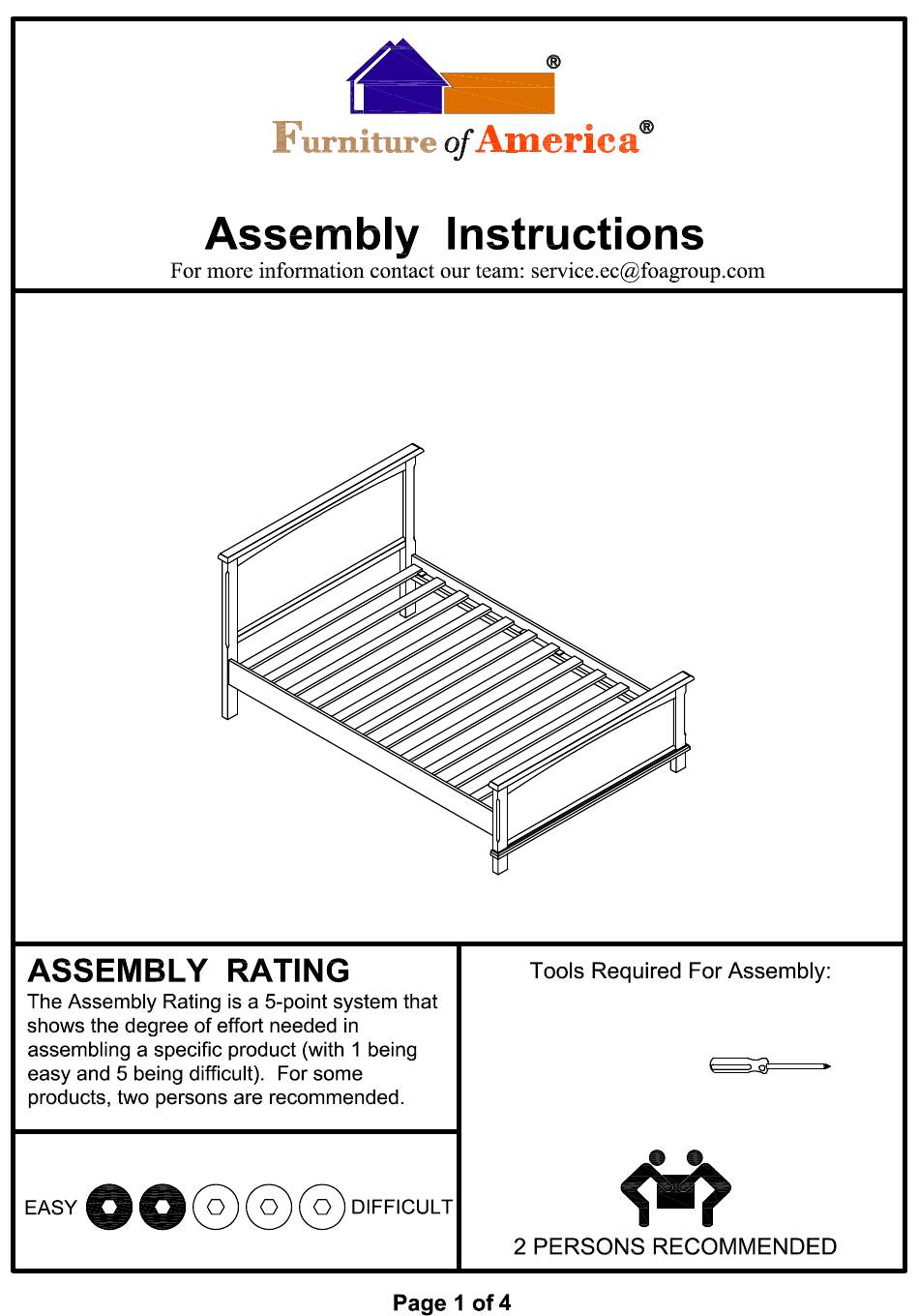

- Page 1 CM7909A-T/CM7909A-P-T Phillips Screwdriver (Not Included) Rev:18-03- 20...
- Page 3 #1 x 1 pc #A x 8 pcs Headboard Wood Screw #8x30mm #2 x 1 pc #4 x 2 sets Footboard Slat (6pcs) #3 x 2 pcs Side Rail...
- Page 4 Align and hook the side rails (#3) to the latch in the grooves of the headboard (#1) and footboard (#2). Align slats (#4) to the side rails (#3), then secure by using screws (#A).
- Page 5 CM7909A-F/CM7909A-P-F Phillips Screwdriver (Not Included) Rev:18-03- 20...
- Page 7 #1 x 1 pc #A x 8 pcs Wood Screw #8x30mm Headboard #2 x 1 pc #4 x 2 sets Footboard Slat (6pcs) #3 x 2 pcs #5 x 4 pcs Ø1/4" Side Rail Support leg 30x30x350mm...
- Page 8 Align and hook the side rails (#3) to the latch in the grooves of the headboard (#1) and footboard (#2). Attach support legs (#5) to the holes of the slats (#4). Adjust the adjustable leveler of the support legs (#5) according to ground level.
- Page 9 Align slats (#4) to the side rails (#3), then secure by using screws (#A).
- Page 10 Phillips Screwdriver (Not Included) Rev:18-03-15...
- Page 12 #4 x 2 sets Slat (6pcs)
- Page 13 Align side panels (#2) to the holes of the from panel (#1) and back panel (#3), then secure by using bolts (#A) with washers (#B,C). Align wheels (#E) to the bottom of the unit, then secure by using screws (#F). There will be no pre-drilled holes.
- Page 14 Align slats (#4) to the trundle, then secure by using screws (#D).
