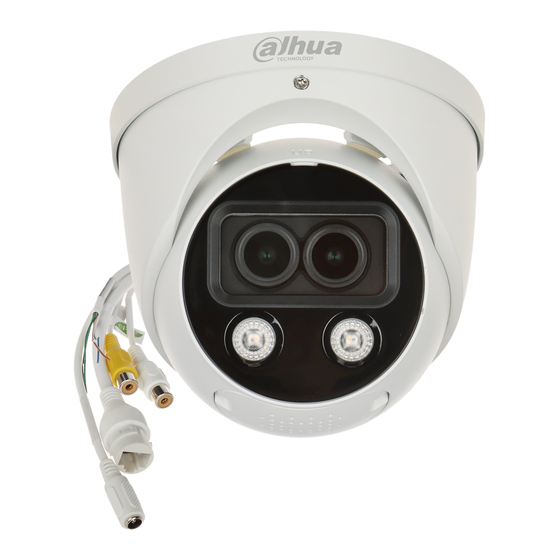

- Page 1 Eyeball Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.4...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the installation and operation of network camera. Read carefully before using the device, and keep the manual safe for future reference. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided,... - Page 3 Quick Start Guide the electronic version and the paper version. ● All the designs and software are subject to change without prior written notice. Product updates might result in some differences appearing between the actual product and the manual. Please contact customer service for the latest program and supplementary documentation.
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, and comply with the guidelines when using it. Transportation Requirements ●... - Page 5 Quick Start Guide against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations. ● Ground the function earthing portion of the device to improve its reliability (certain models are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that the power supply of the device is connected to a power socket with protective earthing.
- Page 6 Quick Start Guide ● Use the accessories suggested by the manufacturer. Installation and maintenance must be performed by qualified professionals. ● Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the lens.
-
Page 7: Table Of Contents
Quick Start Guide Table of Contents Foreword ........................................I Important Safeguards and Warnings ............................III 1 Introduction ......................................1 1.1 Cable ........................................ 1 1.2 Connecting Alarm Input/Output ............................2 2 Network Configuration ..................................4 2.1 Initializing the Camera ................................4 2.2 Changing the Device IP Address ............................5 2.3 Logging in to Web Page ................................. -
Page 8: Introduction
Quick Start Guide 1 Introduction 1.1 Cable Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see FAQ manual. Figure 1-1 Cables Table 1-1 Cable information Port name Description Inputs 12 VDC power. -
Page 9: Connecting Alarm Input/Output
Quick Start Guide Table 1-2 Alarm information Port Name Description ALARM_OUT Outputs alarm signal to alarm devices. When connecting to alarm device, only the ALARM_OUT port and ALARM_OUT_GND ALARM_OUT_GND port with the same number can be used together. ALARM_IN Receives the switch quantity signal of external alarm sources. ALARM_IN_GND Connect different alarm input devices to the same ALARM_IN_GND port. - Page 10 Quick Start Guide than 12 V, please use an additional electric relay. Figure 1-3 Alarm output Step 3 Log in to the web page, and then configure the alarm input and alarm output in alarm settings. ● The alarm input on the web page corresponds to the alarm input end of the I/O port. There will be high level and low level alarm signals generated by the alarm input device when an alarm occurs.
-
Page 11: Network Configuration
Quick Start Guide 2 Network Configuration Device initialization and IP setting can be finished with the ConfigTool or on web page. For more information, see Web Operation Manual. ● Device initialization is available on select models, and it is required at first-time use and after device is reset. -
Page 12: Changing The Device Ip Address
Quick Start Guide Step 3 Set and confirm the password of the devices, enter a valid email address, and then click Next. Select Auto-check for updates as needed, and then click OK to initialize the device. Step 4 If initialization failed, click to see more information. -
Page 13: Installation
Quick Start Guide 3 Installation 3.1 Packing List ● Tools required for the installation, such as electric drill, are not included in the package. ● The operation manual and information on the tools are on the disk or the QR code. Figure 3-1 Packing list 3.2 Dimensions Figure 3-2 Dimensions: Model A (Unit: mm [inch]) -
Page 14: Installing The Camera
Quick Start Guide Figure 3-3 Dimensions: Model B (Unit: mm [inch]) 3.3 Installing the Camera 3.3.1 Installation Methods Figure 3-4 Installation methods 3.3.2 (Optional) Installing the SD Card ● SD card slot is available on select models. ● Disconnect the power before installing or removing the SD card. Press the reset button for 10 seconds to reset the device. -
Page 15: Attaching The Camera
Quick Start Guide Figure 3-5 Install SD card (Model A) Figure 3-6 Install SD card (Model B) 3.3.3 Attaching the Camera Make sure that the mounting surface is strong enough to hold at least three times the weight of the device and bracket. - Page 16 Quick Start Guide Figure 3-7 Cable going through the side cable tray Figure 3-8 Cable going through the mounting surface...
-
Page 17: Optional) Installing Waterproof Connector
Quick Start Guide 3.3.4 (Optional) Installing Waterproof Connector This part is needed only when there is waterproof connector in the package and the device is used outdoors. Figure 3-9 Install waterproof connector 3.3.5 Adjusting the Lens Angle Figure 3-10 Adjust lens angle... - Page 18 Quick Start Guide...
