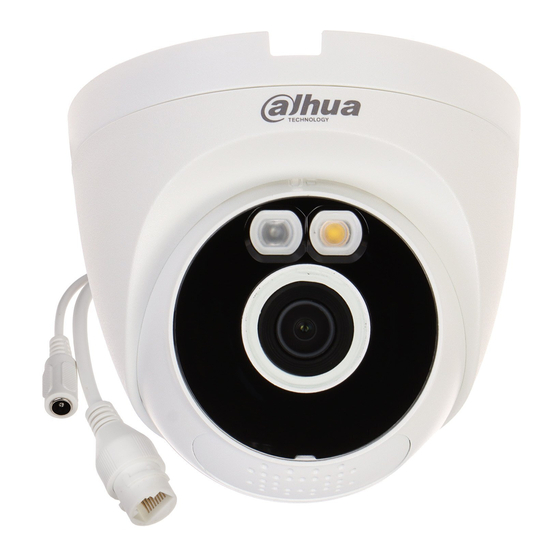

- Page 1 Eyeball Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.0...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the installation and operations of network camera. Read carefully before using the device, and keep the manual safe for future reference. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided,... - Page 3 Quick Start Guide ● Upgrade the reader software or try other mainstream reader software if the manual (in PDF format) cannot be opened. ● All trademarks, registered trademarks and the company names in the manual are the properties of their respective owners. ●...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, comply with the guidelines when using it. Transportation Requirements ●... - Page 5 Quick Start Guide against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations. ● Ground the function earthing portion of the device to improve its reliability (certain models are not equipped with earthing holes). The device is a class I electrical appliance. Make sure that the power supply of the device is connected to a power socket with protective earthing.
- Page 6 Quick Start Guide ● Use the accessories suggested by the manufacturer. Installation and maintenance must be performed by qualified professionals. ● Do not directly touch the photosensitive CMOS. Use an air blower to clean the dust or dirt on the lens.
-
Page 7: Table Of Contents
Quick Start Guide Table of Contents Foreword .........................................I Important Safeguards and Warnings ............................. III 1 Introduction......................................1 1.1 Cable ......................................... 1 1.2 LED Status ...................................... 1 2 Network Configuration ..................................2 2.1 Initializing the Camera ................................2 2.2 Changing the Device IP Address ............................3 2.3 Logging in to Web Page ................................. -
Page 8: Introduction
Quick Start Guide 1 Introduction 1.1 Cable Waterproof all the cable joints with insulating tape and waterproof tape to avoid water damage and prevent short circuits from occurring. For details, see the FAQ manual. Figure 1-1 Cables Table 1-1 Cable information Port Name Description Connects to the network through a network cable. -
Page 9: Network Configuration
Quick Start Guide 2 Network Configuration Device initialization and IP configurations can all be managed with the ConfigTool or through the web page. For more information, see the web operation manual. ● Device initialization is available on select models, and is required at first-time use and after the device is reset. -
Page 10: Changing The Device Ip Address
Quick Start Guide Figure 2-1 Password setting Step 3 Set and confirm the password of the devices, enter a valid email address, and then click Next. Step 4 Select Auto-check for updates as needed, and then Click OK to initialize the device. If initialization failed, click to see more information. -
Page 11: Logging In To Web Page
Quick Start Guide Step 3 Configure IP address. ● Static mode: When you select Static, you need to enter Start IP, Subnet Mask, and Gateway. The IP addresses of the devices will be modified successively starting from the first IP entered. ●... -
Page 12: Operating With Dmss
Quick Start Guide 3 Operating with DMSS Make sure that there are no obstacles and electromagnetic interference between the device and the router for best possible wireless performance. Step 1 Add the device. 1) Tap + button on the upper-right corner of the DMSS home page to scan the QR code on the camera. - Page 13 Quick Start Guide Figure 3-2 Configure the device hotspot Step 3 Configure the Wi-Fi. Select your Wi-Fi network from the SSID list, and then enter the password. Step 4 Configure the device information. 1) Create the device name and password. 2) Set the time zone, and then click Done.
-
Page 14: Installation
Quick Start Guide 4 Installation 4.1 Packing List ● Tools required for installation, such as the electric drill, are not included in the package. ● The operation manual and information on the tools are on the disk or the QR code. Figure 4-1 Packing list 4.2 Dimensions Figure 4-2 Dimensions (mm [inch]) -
Page 15: Installing Camera
Quick Start Guide 4.3 Installing the Camera 4.3.1 Installation Methods Figure 4-3 Installation methods 4.3.2 Installing the SD Card ● SD card slot is available on select models. ● Disconnect the power before installing or removing the SD card. Press the reset button for 10 seconds to reset the device. Figure 4-4 Install the SD card 4.3.3 Attaching the Camera Make sure that the mounting surface is strong enough to hold at least three times the weight of the... - Page 16 Quick Start Guide Figure 4-5 Cable going through the side cable tray Figure 4-6 Cable going through the mounting surface...
-
Page 17: Optional) Installing Waterproof Connector
Quick Start Guide 4.3.4 (Optional) Installing the Waterproof Connector This part is needed only when a waterproof connector comes with the camera and the camera is used outdoors. Figure 4-7 Install the waterproof connector... -
Page 18: Adjusting Lens Angle
Quick Start Guide 4.3.5 Adjusting the Lens Angle Figure 4-8 Adjust the lens angle... - Page 19 Quick Start Guide...
