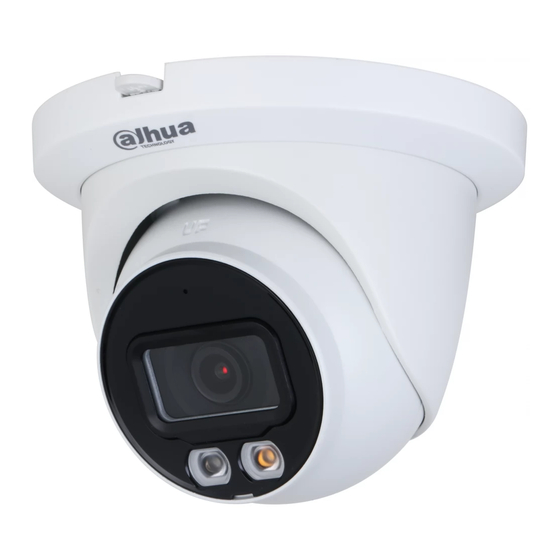

- Page 1 Eyeball Network Camera Quick Start Guide ZHEJIANG DAHUA VISION TECHNOLOGY CO., LTD. V1.0.3...
-
Page 2: Foreword
Quick Start Guide Foreword General This manual introduces the functions, configuration, general operation, and system maintenance of network camera. Safety Instructions The following signal words might appear in the manual. Signal Words Meaning Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. - Page 3 Quick Start Guide the electronic version and the paper version. All the designs and software are subject to change without prior written notice. The product updates might cause some differences between the actual product and the manual. Please contact the customer service for the latest program and supplementary documentation. There still might be deviation in technical data, functions and operations description, or errors in ...
-
Page 4: Important Safeguards And Warnings
Quick Start Guide Important Safeguards and Warnings This section introduces content covering the proper handling of the device, hazard prevention, and prevention of property damage. Read carefully before using the device, comply with the guidelines when using it. Transportation Requirements Transport the device under allowed humidity and temperature conditions. - Page 5 Quick Start Guide An emergency disconnect device must be installed during installation and wiring at a readily accessible location for emergency power cut-off. We recommend you use the device with a lightning protection device for stronger protection against lightning. For outdoor scenarios, strictly comply with the lightning protection regulations. Ground the function earthing portion of the device to improve its reliability (certain models ...
- Page 6 Quick Start Guide Maintenance Requirements Strictly follow the instructions to disassemble the device. Non-professionals dismantling the device can result in it leaking water or producing poor quality images. For a device that is required to be disassembled before use, make sure the seal ring is flat and in the seal groove when putting the cover back on.
-
Page 7: Table Of Contents
Quick Start Guide Table of Contents Foreword ................................I Important Safeguards and Warnings ......................III 1 Introduction ..............................1 Cable ....................................... 1 Connecting Alarm Input/Output ............................1 2 Network Configuration ..........................3 Initializing the Camera ................................3 Changing the Device IP Address ............................4 Logging in to the Webpage.............................. -
Page 8: Introduction
Quick Start Guide Introduction Cable Waterproof all the cable joints with insulating tape and waterproof tape to avoid short circuit and water damage. For the detailed operation, see FAQ manual. Cables Table 1-1 Cable information Port Name Description Inputs 12 VDC power. Please be sure to supply power as instructed in the Guide. - Page 9 Quick Start Guide Connect the alarm input device to the alarm input end of the I/O port. The device collects different statuses of the alarm input port while the input signal is idling and being grounded. Device collects logic "1" when the input signal is connected to +3 V to +5 V or idling. ...
-
Page 10: Network Configuration
Quick Start Guide Network Configuration Device initialization and IP setting can be finished with the ConfigTool or on webpage. For more information, see web operation manual. Device initialization is available on select models, and it is required at first-time use and after ... -
Page 11: Changing The Device Ip Address
Quick Start Guide Click Finish. Changing the Device IP Address You can change IP address of one or multiple devices in one time. This section is based on changing IP addresses in batches. Changing IP addresses in batches is available only when the corresponding devices have the ... -
Page 12: Installation
Quick Start Guide Installation Packing List The tool required for the installation such as electric drill is not provided in the package The operation manual and related tool information are contained in the disk or the QR code. Packing list Dimensions Dimensions (mm [inch]) -
Page 13: Installing The Camera
Quick Start Guide Installing the Camera 3.3.1 Installation Direction Installation direction 3.3.2 Installation Methods Installation methods... -
Page 14: Detaching The Device
Quick Start Guide 3.3.3 Detaching the Device Detach the device 3.3.4 (Optional) Installing the SD Card Pull the power plug off before installing or removing the SD card. Press and hold the RESET button for 10 s to reset the camera. ... - Page 15 Quick Start Guide Cable going through the mounting surface Cable going through the side cable tray...
-
Page 16: Optional) Installing The Waterproof Connector
Quick Start Guide 3.3.6 (Optional) Installing the Waterproof Connector This part is needed only when there is waterproof connector in the package and the device is used outdoors. Install the waterproof connector 3.3.7 Adjusting the Lens Angle Adjust the lens angle... - Page 17 Quick Start Guide...
