jbc PHXLS Instruction Manual

Support for pcbs up to 51x61cm/20x24"
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
PHXLS
Support for PCBs
up to 51x61cm/20x24"

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PHXLS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for jbc PHXLS

Summary of Contents for jbc PHXLS

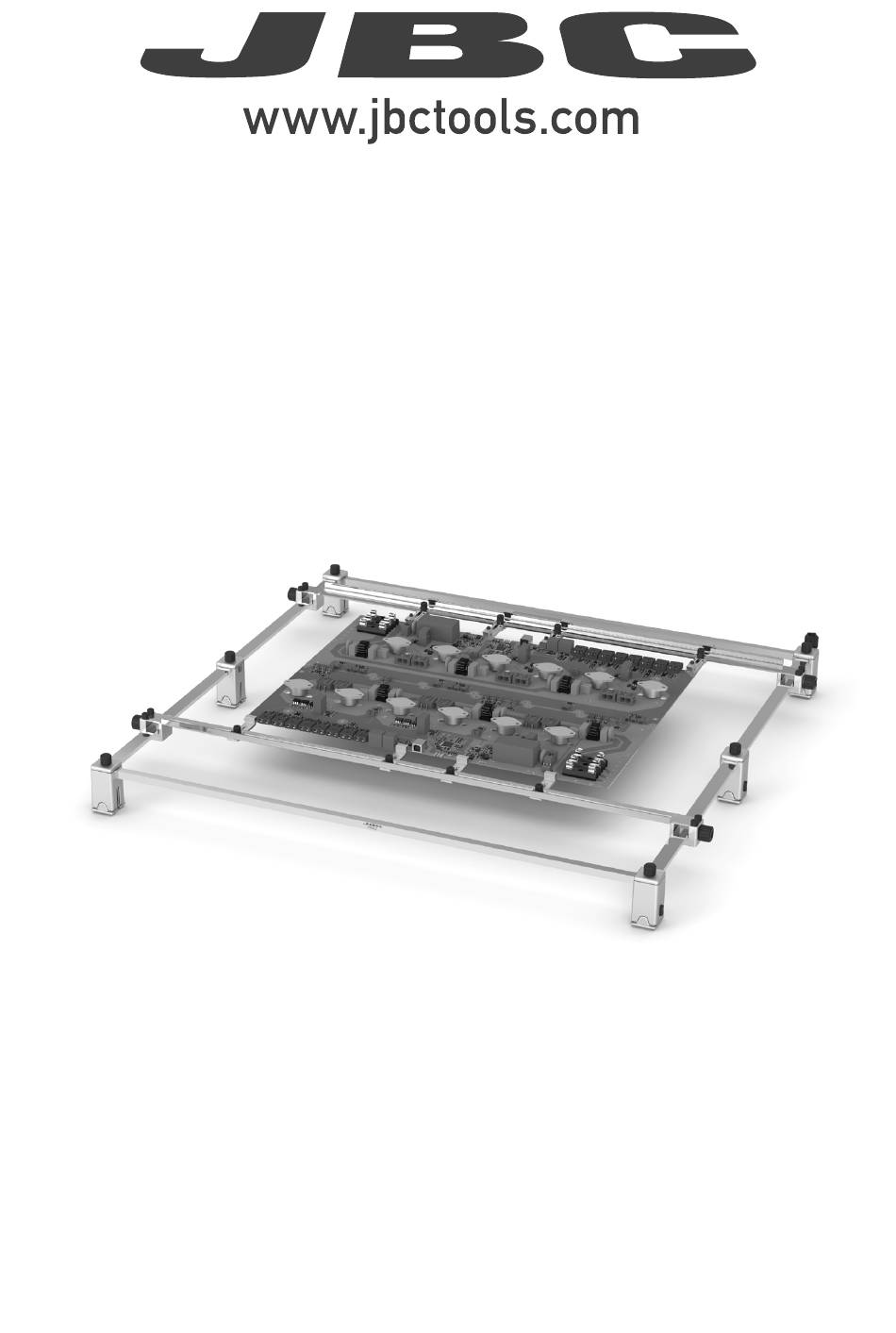

  • Page 1 INSTRUCTION MANUAL PHXLS Support for PCBs up to 51x61cm/20x24”...

  • Page 2: Packing List

    This manual corresponds to the following reference: PHXL-SA Packing List The following items are included: PHXLS Support ............................1 unit Manual ............1 unit Ref. 0026996...

  • Page 3: Features And Connections

    para manuales - color gris 200 mm Features and Connections 130 mm 130 mm Adjustable Slot Clamp for PCB fixation. 100 mm Max. PCB dimension (between clamps): 51x61 cm / 20x24 in. Thickness 6 mm / 0.236 in. 80 mm 60 mm 50 mm Allen Key...

  • Page 4: Height Adjustment

    To lower the support, press the button and move down. It is also possible to use JBC´s metallic supports to stabilize the PCB to avoid PCB deformation. Depending on the working height, Ref. PH201*, PH202* or PH203* can be used. Arrange them between the PCB and the Preheater as shown below.
  • Page 5 130 mm 130 mm PHXLS Support lets replace PCBs of the same batch fast and easily thanks to the spring-loaded clamps, located at the frontal sliding guide. To do this, there is no need to open the sliding guide knob (1) and nor to move the sliding guides.

  • Page 6: Maintenance

    - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts - Replace any defective or damaged piece. Sliding guide axes Use original JBC spare parts only. clean periodically - Repairs should only be performed by a JBC authorized technical service.
  • Page 7 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - When using the support with a preheater unit, the temperature of accessible surfaces may remain high after the unit is turned off.

  • Page 8: Specifications

    32.28 x 31.50 x 9.45 in / 46.30 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
