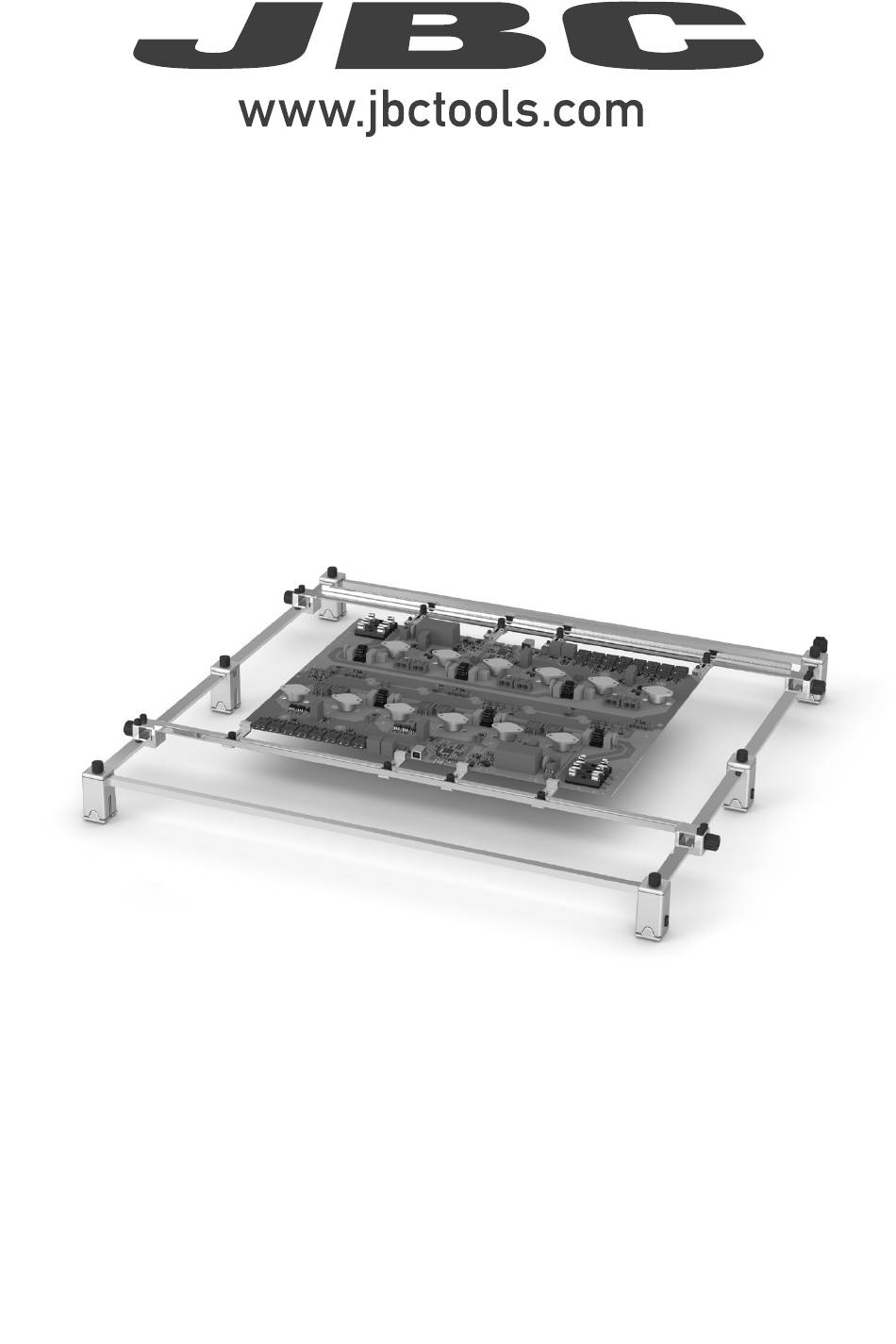

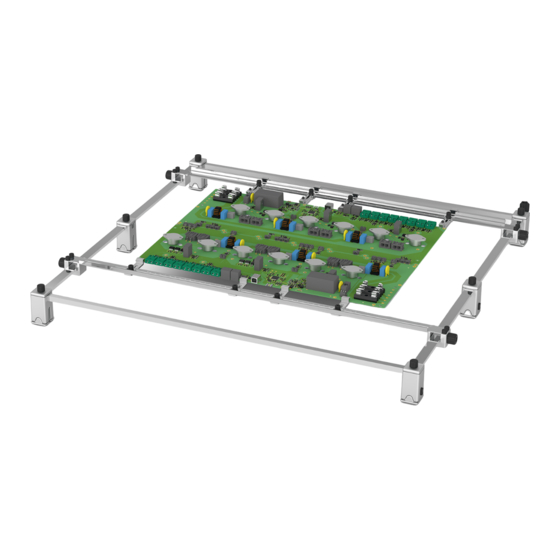

- Page 1 INSTRUCTION MANUAL XL PCB Support...
- Page 2 This manual corresponds to the following reference: PHXL-SA Packing List The following items are included: XL PCB Support ............................1 unit Allen Key ............ 1 unit Manual ............1 unit Ref. 0013754 Ref. 0026996...
- Page 3 para manuales - color gris 200 mm Features 130 mm 130 mm Adjustable Slot Clamps for PCB fixation. 100 mm 80 mm Sliding 60 mm Guides 50 mm Allen Key 40 mm Rubber Caps Clamp Knobs Guide Knobs Height Adjusting System...
- Page 4 To lower the support, press the button and move down. It is also possible to use JBC´s metallic supports to stabilize the PCB so as to avoid PCB deformation. Depending on the working heigth, Ref. PH201*, PH202* or PH203* can be used.
- Page 5 para manuales - color gris 200 mm Fast PCB Replacement 130 mm 130 mm XL PCB Support lets you replace PCBs of the same batch fast and easily. Use the sliding guides to change the PCBs. 100 mm Removing the PCB Loosen one sliding guide, pull back and lift out the PCB.
- Page 6 - Use a damp cloth when cleaning. Alcohol can olny be used to clean the metal parts - Replace any defective or damaged piece. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
- Page 7 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - The temperature of accessible surfaces may remain high after the unit is turned off. Handle with care. - Be careful with the remains of liquid tin.
- Page 8 32.28 x 31.50 x 9.06 in / 50.71 lb Complies with CE standards. ESD protected housing. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
