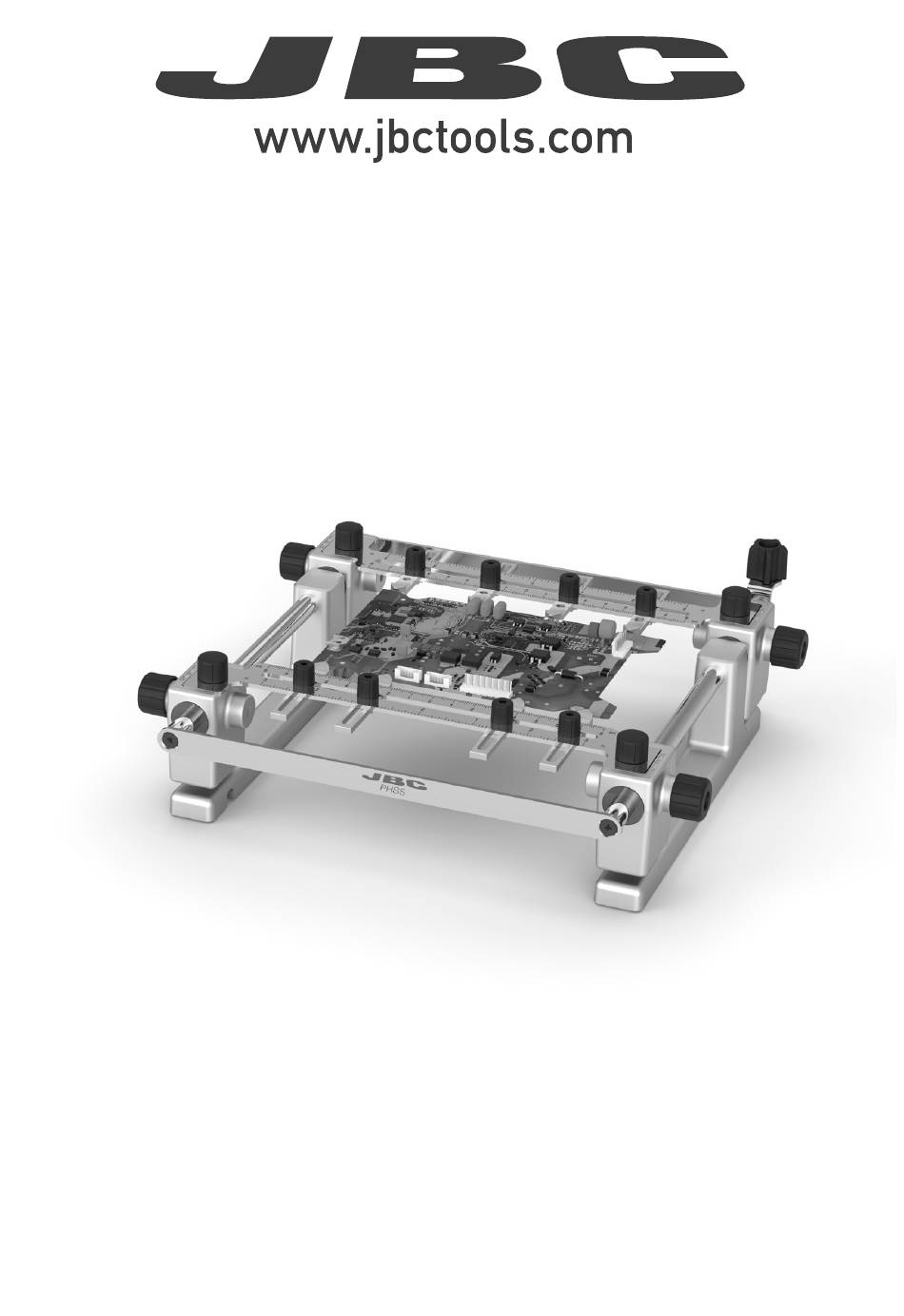

- Page 1 INSTRUCTION MANUAL 130 mm PHSS Support for PCBs up to 13x13cm/5x5”...
-
Page 2: Packing List
This manual corresponds to the following reference: PHS-SA Packing List The following items are included: PHSS Support ............................1 unit Manual ............1 unit Allen key ............. 1 unit Ref. 0013754 Ref. 0026994... -
Page 3: Features And Connections
para manuales - color gris para manuales - color gris 200 mm 200 mm Features and Connections 130 mm 130 mm 130 mm 130 mm ESD Connector (connect to ESD Common Grounding Point) 100 mm 100 mm Clamp Knob 80 mm 80 mm Spring Guide 60 mm... -
Page 4: Height Adjustment
Height Adjustment The support allows changing the height between the PCB and the preheater heating area. It can be chosen between 3 positions for the working height adjustment. Unscrew these pins to place the support in the lowest level Low level 22 mm / 0.87 in Medium level... - Page 5 para manuales - color gris para manuales - color gris 200 mm 200 mm Fast PCB Replacement 130 mm 130 mm 130 mm 130 mm Move the spring guide backward to change PCBs of the same batch fast and easily. Removing the PCB Placing another PCB 100 mm...
-
Page 6: Maintenance
- Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts - Replace any defective or damaged piece. Sliding Guide Use original JBC spare parts only. Axes - Repairs should only be performed by a JBC authorized technical service. - Page 7 para manuales - color gris para manuales - color gris 200 mm 200 mm Safety 130 mm 130 mm 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm 100 mm - When using the support with a preheater unit, the temperature of accessible surfaces may remain high after the unit is turned off.
-
Page 8: Specifications
14.49 x 14.49 x 4.92 in / 6.52 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor. Warranty does not cover product wear or misuse.
