Summary of Contents for jbc HT-SE

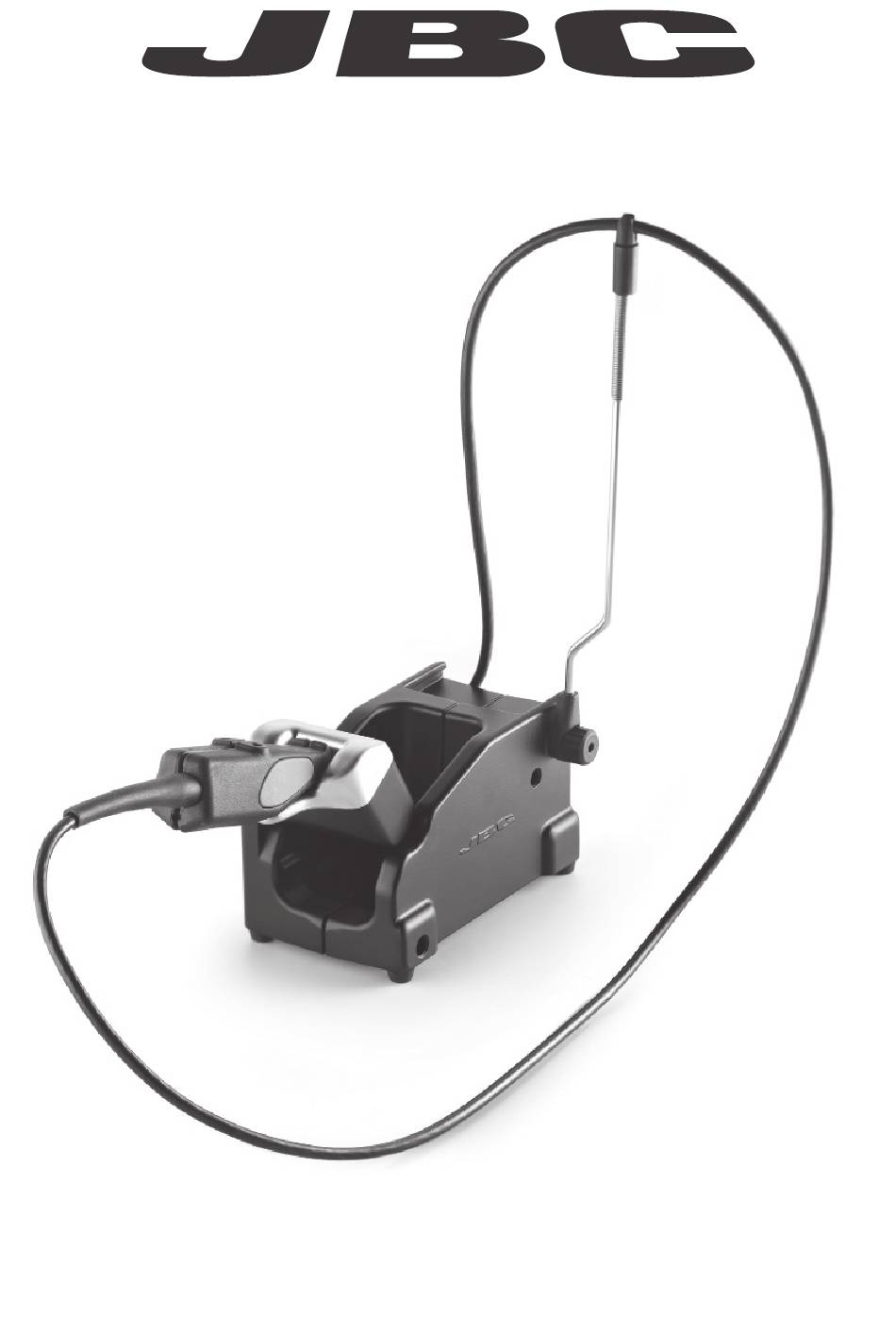

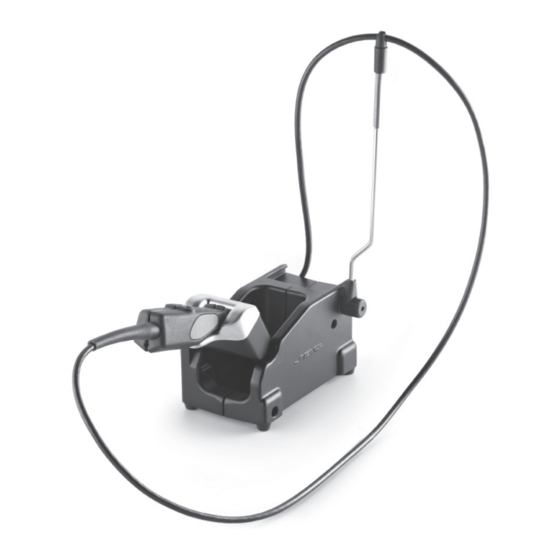

- Page 1 INSTRUCTION MANUAL Stands for Tweezers Ref. PA-SE / HT-SE...
-
Page 2: Packing List
Stand ............1 unit Ref. PA-SE Ref. HT-SE The following items should be included in each stand: Stand Cable 1m........ 1 unit Manual ............1 unit Ref. 0011283 Ref. 0018082 w w w.jbctools.com INSTRUCTION MANUAL Stands for Tweezers Ref. PA-SE / HT-SE... - Page 3 Extractors Ref. HT-SE Loosen the screw. Place the Soldering Iron in the extractor and remove the cartridge. Insert the new cartridge and press slightly as far as the mark and tighten the screw. Loosen HT-SE tool placement for large tips...
- Page 4 Assembly: Cable Collector and Adjustable Tool Holder...
- Page 5 w w w.jbctools.com Accessories Stand extension cable Ref. A1286 Length: 1.5m Stand Cable...
- Page 6 - Periodically check all cables and tube connections. - Replace any defective or damaged parts. Use original JBC spare parts only. - Repairs should only be performed by a JBC authorized technical service.
- Page 7 w w w.jbctools.com Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. - Do not use the units for any purpose other than soldering or rework. Incorrect use may cause fire. - The power cord must be plugged into approved bases. Be sure that it is properly grounded before use.
-
Page 8: Specifications
342 x 155 x 120 mm (13.46 x 6.10 x 4.72 in) Complies with CE standards ESD protected Warranty JBC’s two-year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse. In order for the warranty to be valid, equipment must be returned, postage paid, to the dealer where it was purchased.
