- Page 1 INSTRUCTION MANUAL PHST Table Built-In Mounting Frame for PHSE...
-
Page 2: Packing List

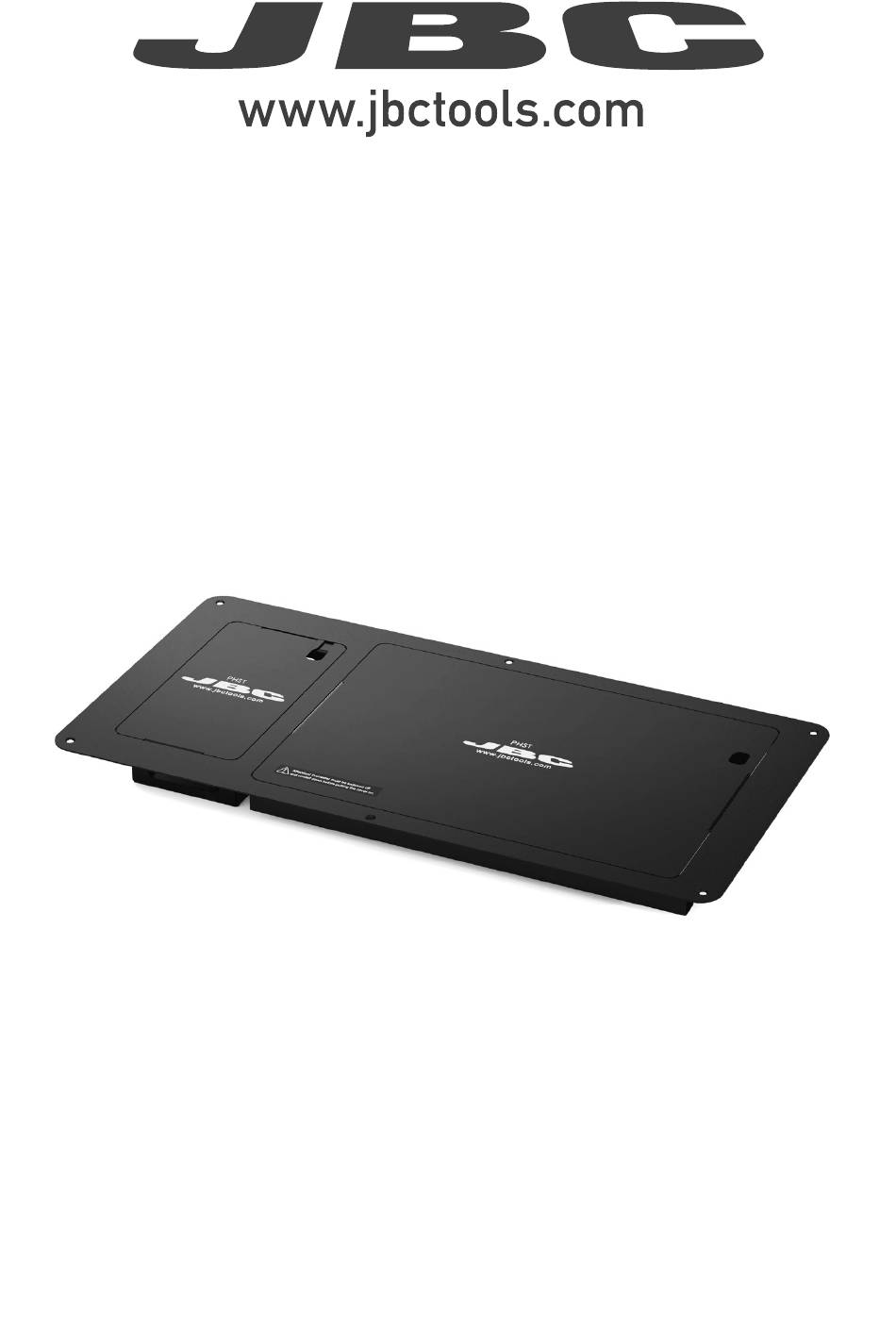

This manual corresponds to the following reference: PHS-STA Packing List The following items should be included: Cover for PHS Cover for Console Windowed Cover for PHSE ....1 unit Table Built-In Mounting Frame for PHSE ............1 unit Small Cover for PHSE ......1 unit Screws 4x20 .......... - Page 3 - color gris 200 mm Features 130 mm 130 mm PHST comes with four covers, which can be used interchangeably depending on your needs. See the different usage options on the next page. 100 mm - Cover for PHSE: 80 mm...
- Page 4 Options Cover and protect the work space using the different covers provided with PHST. The console can be covered by the console cover. For the other tree covers see the following usage options: Option 1: Cover for PHSE If no work is being carry out, the entire preheater area can be covered.
- Page 5 para manuales - color gris 200 mm 130 mm 130 mm Note: If the preheater is used the other way round, all preheater covers can also be fitted the other way round. 100 mm 80 mm Heating area on the left side Heating area on the right side 60 mm 50 mm...
- Page 6 Cutout Scheme To install PHST in your workbench, it is necessary to make a cutout of the indicated dimensions. 29 . 5 / 1.16 mm / in...
- Page 7 para manuales - color gris 200 mm 130 mm 130 mm 100 mm 80 mm 60 mm 602 / 23.7 543 / 21.38 50 mm Workbench 40 mm Holes for screws - Veloz 4x20 mm Recess (6x) 29 . 5 / 1.16 Opening...
-
Page 8: Specifications
25.2 x 13.78 x 4.72 in / 17.11 lb Complies with CE standards. ESD Safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor. Warranty does not cover product wear or misuse.
