Summary of Contents for jbc PHNS

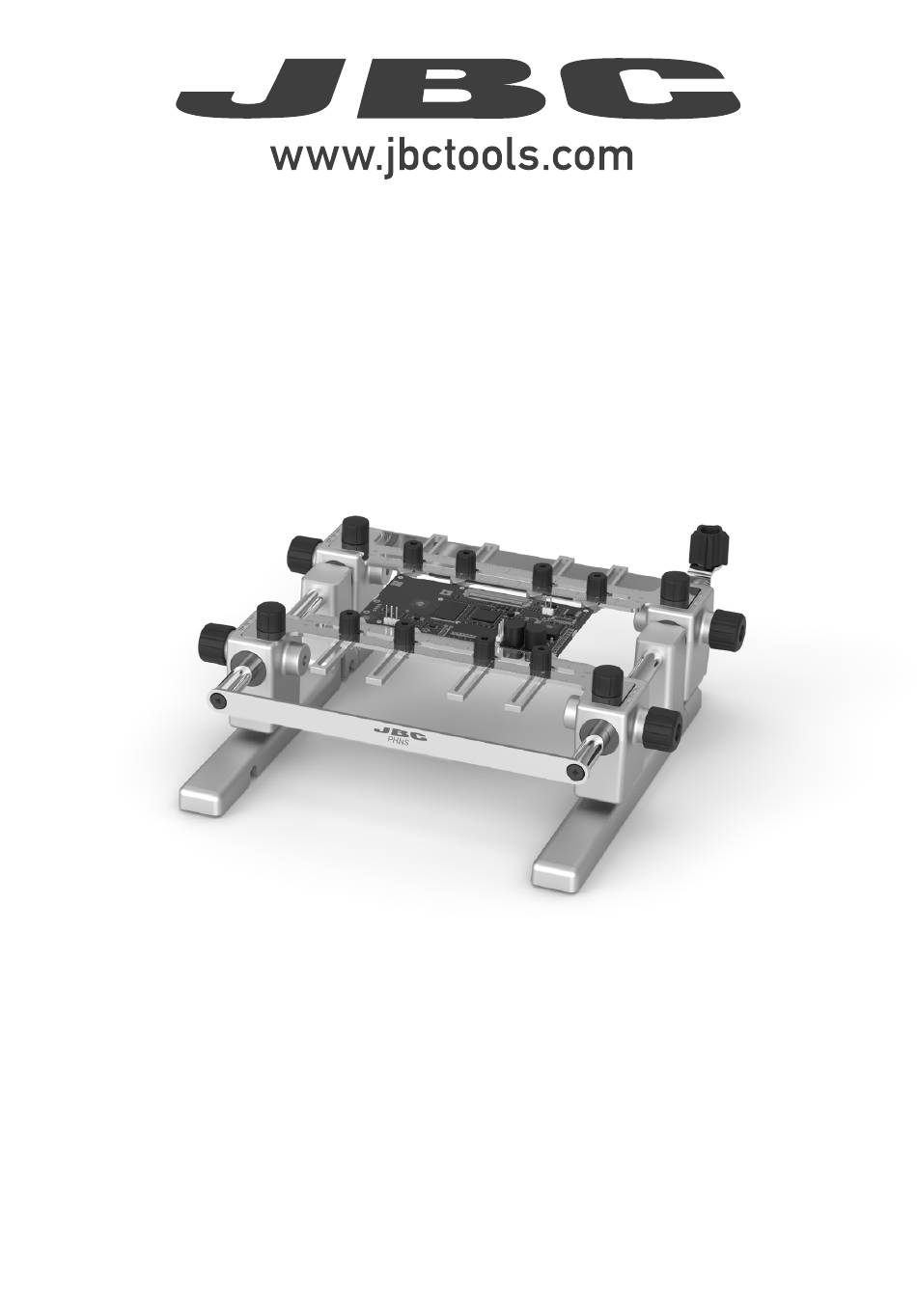

- Page 1 INSTRUCTION MANUAL PHNS Support for PCBs up to 11x7cm/4x3”...
-
Page 2: Packing List
This manual corresponds to the following reference: PHN-SA Packing List The following items are included: PHNS Support............................1 unit Allen Key ............ 1 unit Manual ............1 unit Ref. 0013754 Ref. 0026993... -
Page 3: Features And Connections
para manuales - color gris 200 mm Features and Connections 130 mm 130 mm ESD Connector (connect to ESD Common Grounding Point) 100 mm 80 mm Clamp Knob 60 mm Spring Guide Rubber Cap Allen Key 50 mm Sliding Guide 40 mm Guide Knob Slot Clamps... -
Page 4: Height Adjustment
Height Adjustment Height Adjustment The support allows adjustment for 3 heights between the PCB and the Heating Area of the Preheater Unit. Unscrew these knobs to place the support in the lowest level Low level 22 mm / 0.87 in Medium level 45 mm / 1.77 in... - Page 5 para manuales - color gris 200 mm Fast PCB Replacement 130 mm 130 mm Moove the spring guide backward to change PCBs of the same batch fast and easily. Removing the PCB Placing another PCB 100 mm Loosen the spring guide (1), push the PCB Position the new PCB (4) and tighten the against the spring guide (2) and lift it out (3).
-
Page 6: Maintenance
- Replace any defective or damaged piece. Use original JBC spare parts only. Keep the sliding guide axes clean - Repairs should only be performed by a JBC authorized technical service. - Page 7 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - When using the support with a preheater unit, the temperature of accessible surfaces may remain high after the unit is turned off.
-
Page 8: Specifications
11.02 x 11.02 x 6.45 / 5.29 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
