- Page 1 INSTRUCTION MANUAL 130 mm ALES Stand for ALE250-B Automatic-Feed Soldering Iron...
-
Page 2: Packing List
This manual corresponds to the following references: ALE-SB works with control unit ALE and tool ALE250-B Packing List Stand for ALE250-B Automatic-Feed Manual ............1 unit Soldering Iron ........1 unit Ref. 0032592 Sponge for Stand (48 x 26.5 mm) ..1 unit Brass Wool .......... -
Page 3: Features And Connections

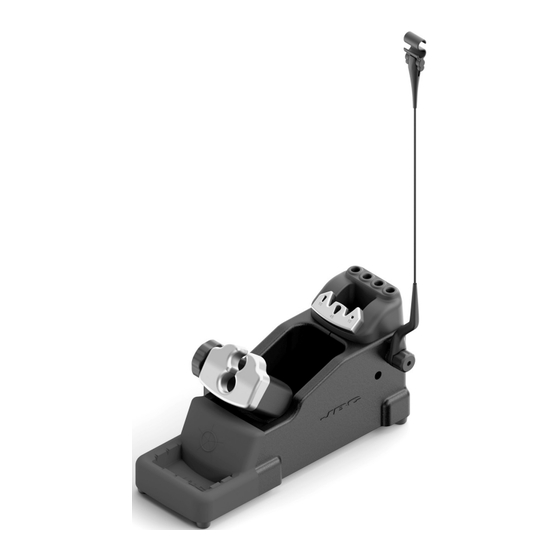

w w w.jbctools.com Features and Connections The stand includes a sleep mode that automatically reduces the tip temperature when the tool is in the stand. CC1001 Cable Collector Cartridge Holder Cartridge Exchanger H4035 Tool Holder CL6210 Brass Wool (inside) S7034 Sponge CL7889 Wiper... - Page 4 Assembly Adjustable Cable Collector (CC1001) Insert the cable into the clip and then insert into it the cable collector. Do not leave the cable longer than necessary to reach the work area freely. The cable collector is flexible. It accompanies and adapts to the movements during the soldering process.
-
Page 5: Changing Cartridges
w w w.jbctools.com Changing Cartridges For a safe cartridge change, unplug the tool or turn the station off before following these guidelines E250 and wait for the equipment to cool down. 1. Unlocking 2. Removing Loosen the cartridge screw (1) to release the Place the cartridge in the quick tip changer cartridge (2). - Page 6 Wiper The integrated wiper offers different ways to clean the cartridge tips. Tapping Wiping Sponge Tap gently to remove excess Use the slots to remove the The softest cleaning method. solder. remaining particles. Keep the sponge damp with distilled water when working to avoid tip wear.
-
Page 7: Maintenance
- Periodically check all cables and tube connections. - Replace any defective or damaged parts. Use orig- inal JBC spare parts only. Repairs should only be performed by a JBC authorized technical service. Safety It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. -
Page 8: Specifications
13.46 x 6.10 x 4.72 in / 4.37 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labor. Warranty does not cover product wear or misuse.
