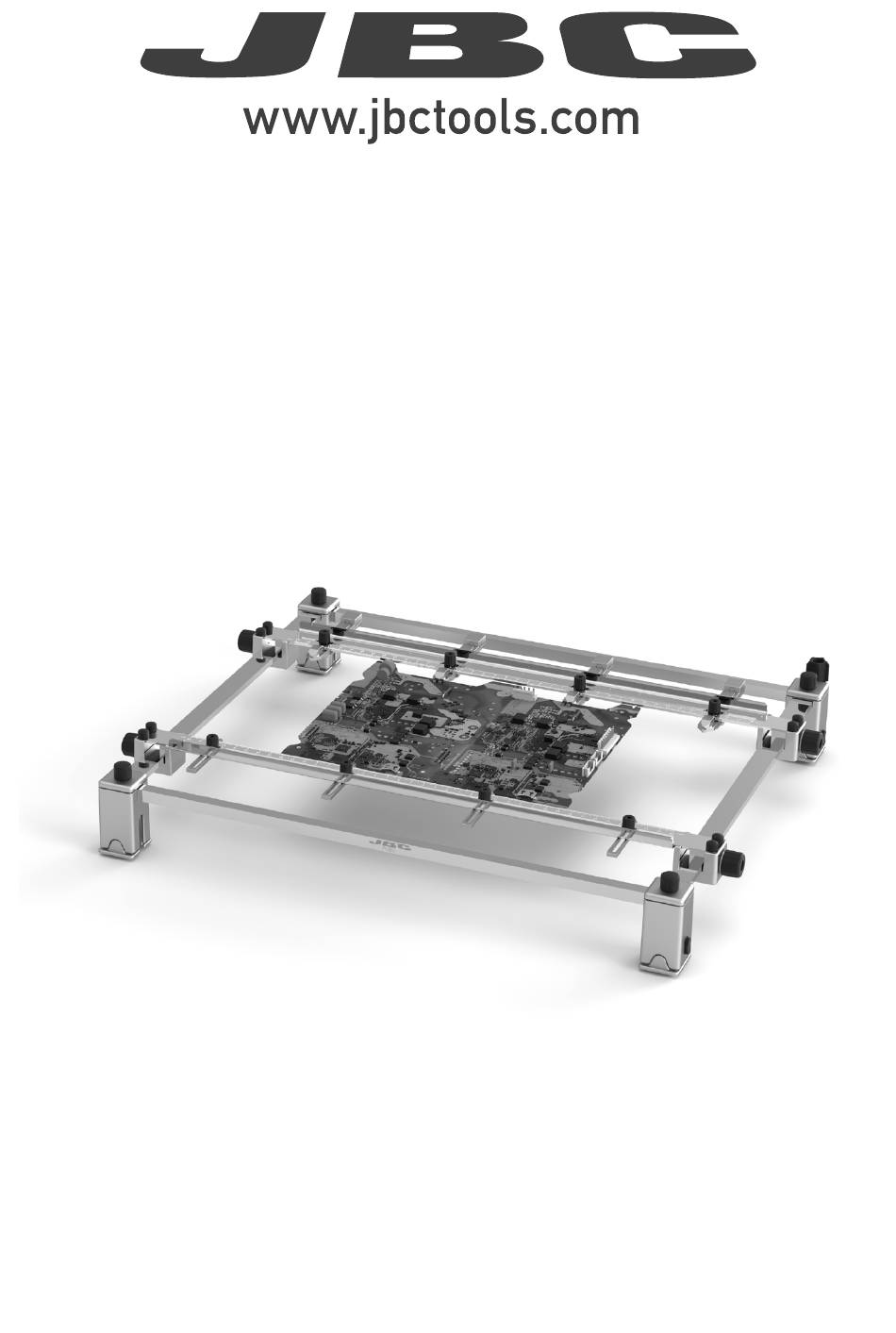

- Page 1 INSTRUCTION MANUAL PHBS Support for PCBs up to 36x28cm/14x11”...
- Page 2 This manual corresponds to the following reference: PHB-SA Packing List The following items are included: PHBS Support ............................1 unit Allen key ............. 1 unit Manual ............1 unit Ref. 0013754 Ref. 0026995...
- Page 3 para manuales - color gris 200 mm Features and Connections 130 mm 130 mm 100 mm Clamp Knob Rubber Cap 80 mm Allen Key 60 mm 50 mm 40 mm Sliding Guide Guide Knob Height Adjusting System Slot Clamps For fixing irregular shaped PCBs.
- Page 4 Height Adjustment The support allows changing the height between the PCB and the preheater heating area. It can be chosen between 3 positions for working height adjustment. To change the height, do as follows: To raise the support, hold the base and pull up. To lower the support, press the button and move down.
- Page 5 - color gris 200 mm Fast PCB Replacement 130 mm 130 mm PHBS Support lets replace PCBs of the same batch fast and easily. Use the sliding guides to change the PCBs. Removing the PCB Placing another PCB 100 mm...
- Page 6 - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts - Replace any defective or damaged piece. Sliding guide axes Use original JBC spare parts only. clean periodically - Repairs should only be performed by a JBC authorized technical service.
- Page 7 para manuales - color gris 200 mm Safety 130 mm 130 mm It is imperative to follow safety guidelines to prevent electric shock, injury, fire or explosion. 100 mm - When using the support with a preheater unit, the temperature of accessible surfaces may remain high after the unit is turned off.
- Page 8 23.2 x 20.5 x 7.09 in / 11.05 lb Complies with CE standards. ESD safe. Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
