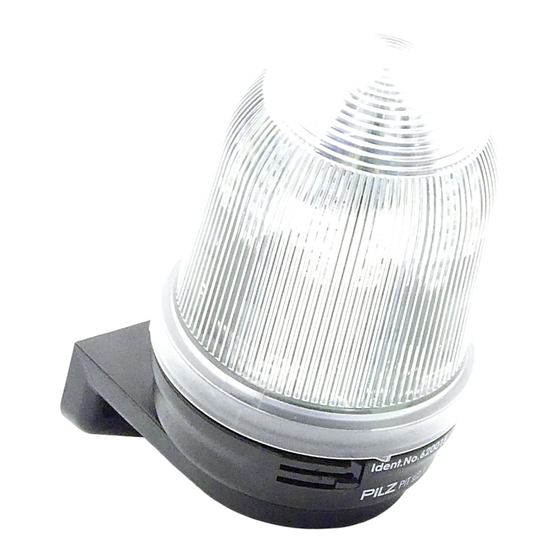

- Page 1 BA PIT si2.1 Control and signal devices Operating Manual-21531-EN-04...
- Page 2 We do assure you that all persons are regarded without discrim- ination and on an equal basis. All rights to this documentation are reserved by Pilz GmbH & Co. KG. Copies may be made for the user's internal purposes. Suggestions and comments for improving this documenta- tion will be gratefully received.
-
Page 3: Table Of Contents
Warranty and liability.........................5 Disposal ............................6 Unit features ...........................6 Function description ......................6 Installation and wiring ......................6 Wiring ............................7 Installation ..........................8 Connection examples ......................9 Driven via PNOZmulti........................9 Driven via PSSuniversal......................10 Dimensions ..........................10 Technical details ........................11 Order reference ........................11 Operating Manual BA PIT si2.1 21531-EN-04... -
Page 4: Introduction
This describes a situation in which the product or devices could be dam- aged and also provides information on preventive measures that can be taken. It also highlights areas within the text that are of particular import- ance. Operating Manual BA PIT si2.1 21531-EN-04... -
Page 5: Safety
Damage can be attributed to not having followed the guidelines in the manual, Operating personnel are not suitably qualified, Any type of modification has been made (e.g. exchanging components on the PCB boards, soldering work etc.). Operating Manual BA PIT si2.1 21531-EN-04... -
Page 6: Disposal
The cover must be removed for installation and wiring: press down the strip underneath the lug using a screwdriver (1). In this way the cover is un- locked and can be opened by rotating (2). Fig.: Remove the cover Operating Manual BA PIT si2.1 21531-EN-04... -
Page 7: Wiring
1: Constant light 0: Flashing light Ø5-8 mm 0.2-0.32 in 7 mm 0.28 in 1,5 mm² ≤ 2 cores AWG 18-14 Fig.: Wiring CAUTION! For muting mode the switch must be in position 1, “constant light”. Operating Manual BA PIT si2.1 21531-EN-04... -
Page 8: Installation
Install the fastening bracket with the base on a vertical surface. 79 mm 3.11 in 55 mm 55 mm 2.17 in 2.17 in 44 mm 1.73 in 99 mm 3.90 in Fig.: Installation „clic“ Fig.: Replace the cover Operating Manual BA PIT si2.1 21531-EN-04... -
Page 9: Connection Examples
Application examples for use with the PMUT X1P muting controller are described in the re- lated operating manual. Driven via PNOZmulti PIT si2.1 24VDC Monitoring lamp current Monitoring open circuit /1.a.5 /1.a.5 CHIP-Card POWER FAULT PNOZ m1p PNOZ mo3p Fig.: Driven via PNOZ m1p with PNOZ mo3p Operating Manual BA PIT si2.1 21531-EN-04... -
Page 10: Driven Via Pssuniversal
0V Module Supply Monitoring open circuit C-rail supply Fig.: Driven via PSSu H SB with PSSu E F PS and PSSu E F DI OZ 2 Dimensions 125,0 mm 90,0 mm Fig.: Dimensions Operating Manual BA PIT si2.1 | 10 21531-EN-04... -
Page 11: Technical Details
Screw terminal Dimensions Height 125 mm Diameter of pushbutton 90 mm Weight 205 g Order reference Product type Features Order no. PIT si2.1 LED muting LED signal lamp for muting mode 620015 lamp Operating Manual BA PIT si2.1 | 11 21531-EN-04... - Page 12 We are represented internationally. Please refer to our homepage www.pilz.com for further details or contact our headquarters. Headquarters: Pilz GmbH & Co. KG, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: info@pilz.com, Internet: www.pilz.com...
