Larson Electronics EPL-QP-2X150RT Instruction Manual

This explosion proof light tower is designed for illumination of industrial locations. It uses the
latest in solid state lighting technology for long life, low maintenance and high efficiency.
The unique design focuses the light where it is needed, giving improved efficiency over a
conventional HID luminaire.
An internal, universal input, power-factor-corrected switch-mode supply allows it to be used from any
nominal 100-277V AC 50/60 Hz power supply without any variation in light output.
WARNING
To avoid the risk of fire, explosion or electric shock, this product should be installed, inspected
and maintained by a qualified electrician only, in accordance with all applicable electrical codes.
To avoid electric shock:
•
Be certain electrical power is OFF before and during installation and maintenance.
•
Luminaire must be connected to a wiring system with an equipment-grounding conductor.
To avoid explosion:
•
Make sure the supply voltage is within the luminaires' voltage rating.
•
Ensure the marked T rating is less than the ignition temperature of the Hazardous
Atmosphere.
•
Do not operate in ambient temperatures above those indicated on the luminaire nameplate.
•
Do not operate if the lens is cracked or damaged. All fasteners should be properly seated.
For supply connections, use wire rated for at least 110°C
Recommended mounting height is 25-40 feet.

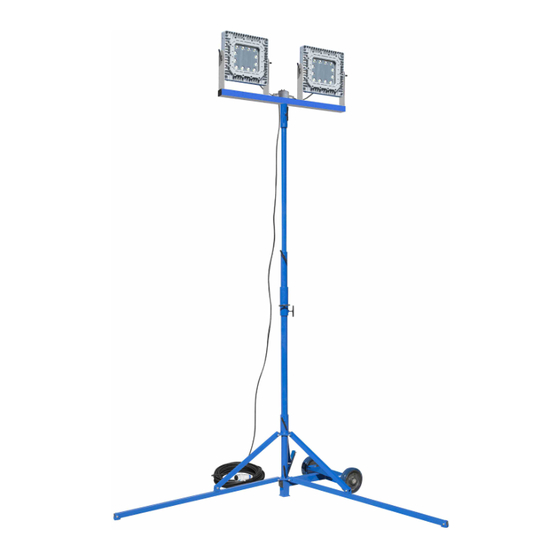

QUADPOD ASSEMBLY
The quadpod assembly consists of 3 parts:
1. Light head
2. Pole w/Legs
3. Wheel base
To assemble quadpod, begin by placing the legs over the wheel base. Tighten bolt to secure the
wheels. The quadpod can now be rolled around on its wheels. Ensure the legs are folded up before
tilting quadpod to maneuver.
WARNING: Use caution before tilting quadpod with a heavy load. For heavy loads, it is
recommended to remove the light head prior to transporting via wheel base! Failure to do so may
cause serious injury or death. Larson Electronics shall not be held liable for injuries caused by
misuse.
Larson Electronics, LLC
300W Explosion Proof LED Light Tower
Instruction Manual
Phone: (800) 369-6671 Fax: (903) 498-3364
EPL-QP-2X150RT
www.larsonelectronics.com 1 of 3
