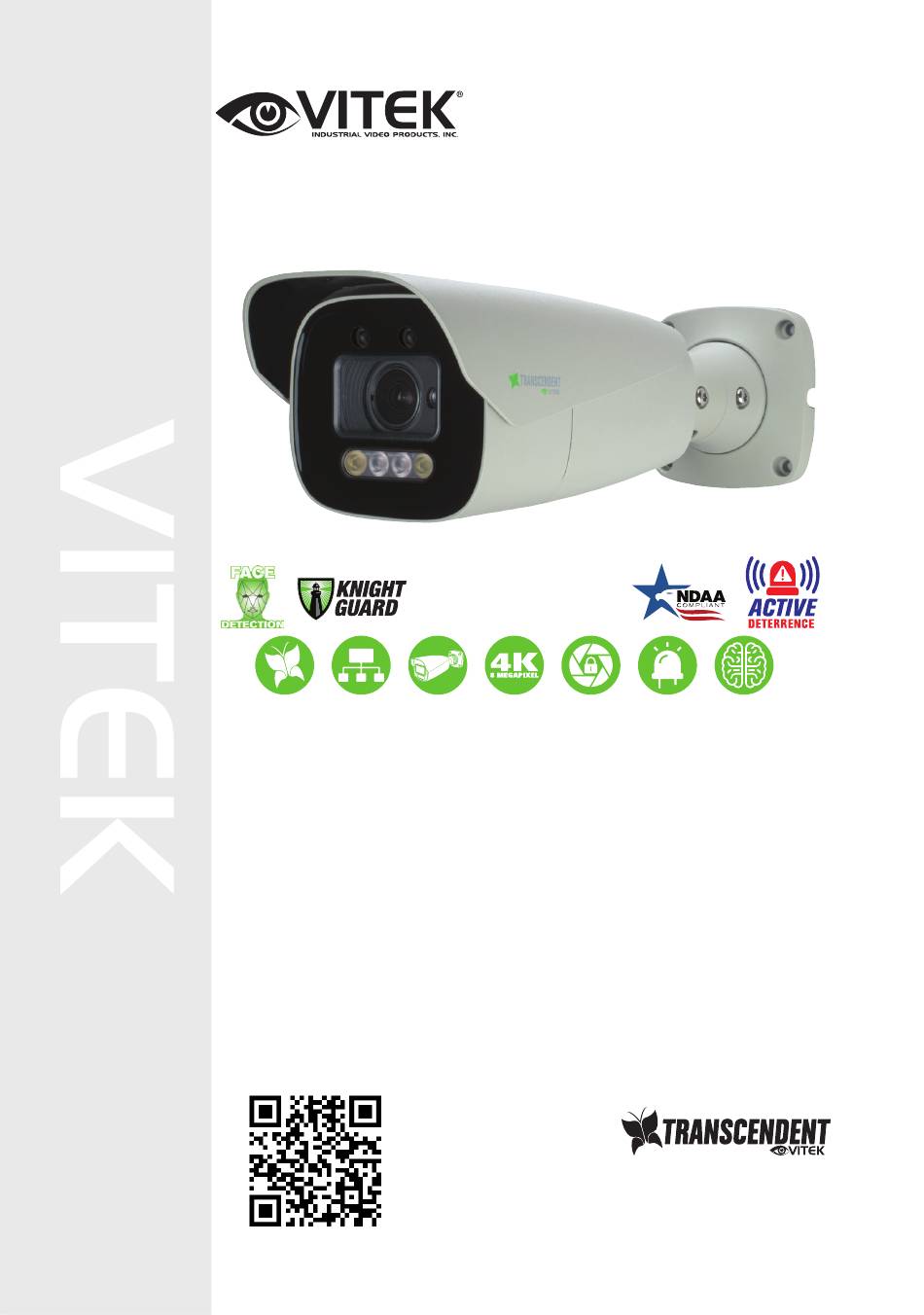

QUICK START GUIDE
TRANSCENDENT
NETWORK
FEATURES:
•
1/1.8" 8.0 MegaPixel (4K) CMOS Image Sensor
•
Full Color at Night Camera with Active Deterrence
•
Up to 30fps @ 8MP (3840 × 2160)
•
2.8~12mm Motorized AF Lens
•
White Light + Matrix IR (165' Range)
•
GEN IV Advanced Analytics including Face Detection
•
Integrated Audio + Speaker*
•
MicroSD Card Slot (256GB)
•
IP66 Weather Resistance
•
12VDC + PoE Operation
•
3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance.

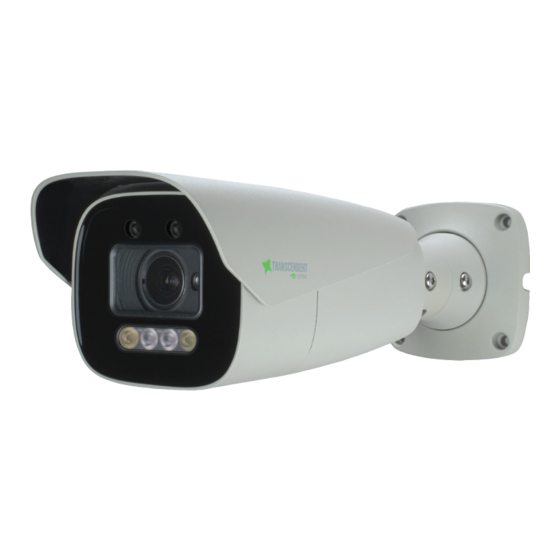

VTC-TNB8MADW
Transcendent Knight Guard Active
Deterrence 8MP (4K) Advanced A.I.
Motorized AF Bullet Camera
BULLET CAMERA
8 MEGAPIXEL
FIXED LENS
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
WHITE LIGHT +
GEN. IV
IR ILLUMINATION
ANALYTICS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek Transcendent VTC-TNB8MADW
Summary of Contents for Vitek Transcendent VTC-TNB8MADW
- Page 1 VTC-TNB8MADW Transcendent Knight Guard Active Deterrence 8MP (4K) Advanced A.I. Motorized AF Bullet Camera QUICK START GUIDE TRANSCENDENT NETWORK BULLET CAMERA 8 MEGAPIXEL FIXED LENS WHITE LIGHT + GEN. IV IR ILLUMINATION ANALYTICS FEATURES: • 1/1.8” 8.0 MegaPixel (4K) CMOS Image Sensor •...
-
Page 2: Components And Accessories
Components and Accessories Camera 4 Tapping Screws PA4x25 CVBS & DC Hex Wrench Drill Template 4 Anchors 1 Machine Screw PWM3x5 Cables Overview Network Cable & Power Connections First connect the Water Resistant Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. -
Page 3: Installation
Connect i ng A l ar m I nput /Out put A l ar m I nput A L A RM -I N Sensor A L A RM -GND A l ar m Out put A L A RM -COM A l ar m A L A RM -OPEN Power Sour ce... - Page 4 3. Route the cables and connect the power & video cables, use the rubber plug to fill the gap of the mounting base, then secure the mounting base to the ceiling or wall with screws. Ground Wire Connection 4. Loosen the lock screws to adjust the viewing angle of the camera.
-
Page 5: Lan Configuration
LAN Configuration Swi t ch Net wor k Cabl e Net wor k Cabl e MENU IP Camera Comput er Rout er The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. - Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM. Edge in IE mode / IE browser will download the Active X. control. After downloading, a login window will pop up as shown below: Input the user name and password to log in.
-
Page 7: Wan Configuration
2. Open Edge in IE mode / IE browser and input the default address of IP-CAM and confirm. Edge in IE mode / IE browser will download an Active X control. 3. After downloading the Active X control, the login Tbox will appear. 4. - Page 8 DETAILED SPECIFICATIONS - VTC-TNB8MADW Image Sensor 1/1.8” 8.0 MegaPixel (4K) Progressive Scan CMOS Image Size 8 MegaPixel (3840 × 2160) 8MP(3840×2160 ),6MP(3072×2048 ),5MP(2592×1944 ),4MP(2592×1520 ), 2K (2560×1440 ), 3MP Resolution (2304×1296),1080P(1920 ×1080),720P(1280×720), D1, VGA(640×480), CIF, 480 × 240 Frame Rate 30fps @ 8MP and Lower Main-Stream 30fps @ 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (50Hz: 1~25fps)
- Page 9 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNB8MADW VT-TJB01 Optional Junction Box VT-TCNMT VT-TPLMT Transcendent Universal Transcendent Universal Corner Mount (reqs. VT-TJB01) Pole Mount (reqs. VT-TJB01) 8.47” 6.43”...
- Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS TRANSCENDENT NVRs! TRANSCENDENT NVRs! A Standalone Solution with GEN. IV Advanced Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression •...
- Page 11 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 12: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
