QUICK START GUIDE
FEATURES:
• 1/1.8" 8.0 Megapixel [4K] CMOS Image Sensor
• Up to 30fps live view @ 8 MegaPixel (3840x2160)
• 2.8~12mm Motorized Varifocal Lens
• Matrix IR (up to 230' IR Range)
• True Wide Dynamic Range
• True Mechanical Day/Night function by ICR
• XD-DNR (3D & 2D-DNR) Noise Reduction
• Gen. III Advanced Analytics: Abnormal Video, Face Detection, Regional
Intrusion Detection, Regional Entrance / Exiting Detection, Line
Crossing, Target Counting Detection
• Smart H.265 / H.265+ / H.265 / Smart H.264 / H.264+ / H.264 / MJPEG
• 1 Ch. Audio In + 1 Ch. Audio Out*
• 1 Ch. Alarm In + 1 Ch. Alarm Out
• Remote Viewing via CMS, Internet Explorer, iOS & Android Apps
• ONVIF Compliant
• MicroSD Card Slot for Local Recording (256GB)
• IP67 Weather Resistance
• Wall Mount Included, Optional Mounts: Junction Box VT-TJB01
• 12VDC & PoE (Power over Ethernet) Operation
• Available in Ivory or Charcoal Grey (VTC-TNB8RMA3B)
*Please research local, state and federal laws
regarding the implementation of audio surveillance.

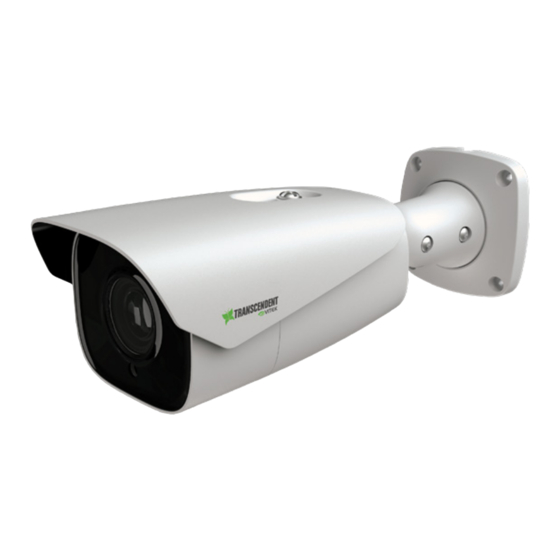

VTC-TNB8RMA3
Transcendent Series 8 MegaPixel
[4K] Indoor/Outdoor WDR IP
Motorized Bullet Camera
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Advertisement
Table of Contents
Related Manuals for Vitek Transcendent VTC-TNB8RMA3
Summary of Contents for Vitek Transcendent VTC-TNB8RMA3
- Page 1 VTC-TNB8RMA3 Transcendent Series 8 MegaPixel [4K] Indoor/Outdoor WDR IP Motorized Bullet Camera QUICK START GUIDE FEATURES: • 1/1.8” 8.0 Megapixel [4K] CMOS Image Sensor • Up to 30fps live view @ 8 MegaPixel (3840x2160) • 2.8~12mm Motorized Varifocal Lens • Matrix IR (up to 230’ IR Range) •...
-
Page 2: Components And Accessories
Components and Accessories Hex Wrench Anchors Overview Network Cable & Power Connections First connect the Water Resistant Cap to an Ethernet patch cable, then connect the cameras ethernet adaptor. If not powering the camera with PoE, also connect the power Cable to an approved 12VDC power supply. -
Page 3: Installation
C onnecting A lar m I nput/O utput A lar m I nput A L A R M -I N Sensor A L A R M -G N D A lar m O utput A L A R M -C O M A lar m A L A R M -O P E N P ower S our ce... - Page 4 Installation 3. Loosen the mount lock to adjust the Pan and Tilt of the camera, then tighten the mount lock to secure the viewing angle adjustments. 4. Open the cover of the camera as shown in the following figure, then insert a MicroSD card. Insert MicroSD Card 5.
-
Page 5: Lan Configuration
LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2. - Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM . IE browser will download the Active X control. After downloading, a login window will pop up as shown below: Input the user name and password to log in. Default user name: admin / Default password: 123456.
-
Page 7: Wan Configuration
2. Open the IE Browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control. 3. After downloading Active X control, the login dialog box will pop up. 4. Input the default username and password and then enter to view. WAN Configuration Access the camera by the router or virtual server for example. - Page 8 VTC-TNB8RMA3 Detailed Specifications Image Sensor 1/1.8” 8.0 Megapixel [4K] CMOS Image Sensor Image Size 8 MegaPixel (3840 × 2160) Resolution 8MP(3840 × 2160 ), 6MP(3072 × 2048 ), 5MP(2592 × 1944), 4MP(2592 × 1520 ), 3MP(2304 × 1296), 1080P(1920 × 1080 ), 720P(1280 × 720 ), D1, CIF, 480 × 240 Min.
- Page 9 Consider These Other Great Transcendent Products! Accessories VT-TJB01 Optional Junction Box for Use with Select Transcendent Bullet Cameras...
- Page 10 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR TRANSCENDENT IP CAMERAS NVRs INTRODUCING OUR NEW INTRODUCING OUR NEW ADVANCED LEARNING A Standalone Solution with FULL Analytic Support • 8MP (4K) HDMI Output • H.265 / H.264 Compression • Full Analytic Support Including Face Detection •...
- Page 11 Also Consider Vitek Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.
-
Page 12: Limited Product Warranty
(3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.
