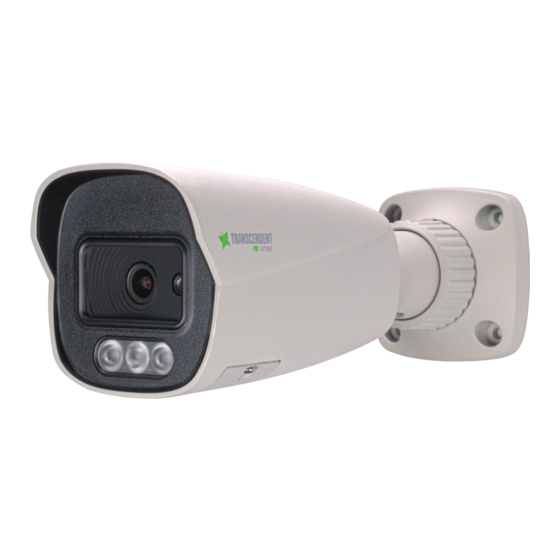

Transcendent knight guard active deterrence 8mp 4k advanced a.i. fixed bullet camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

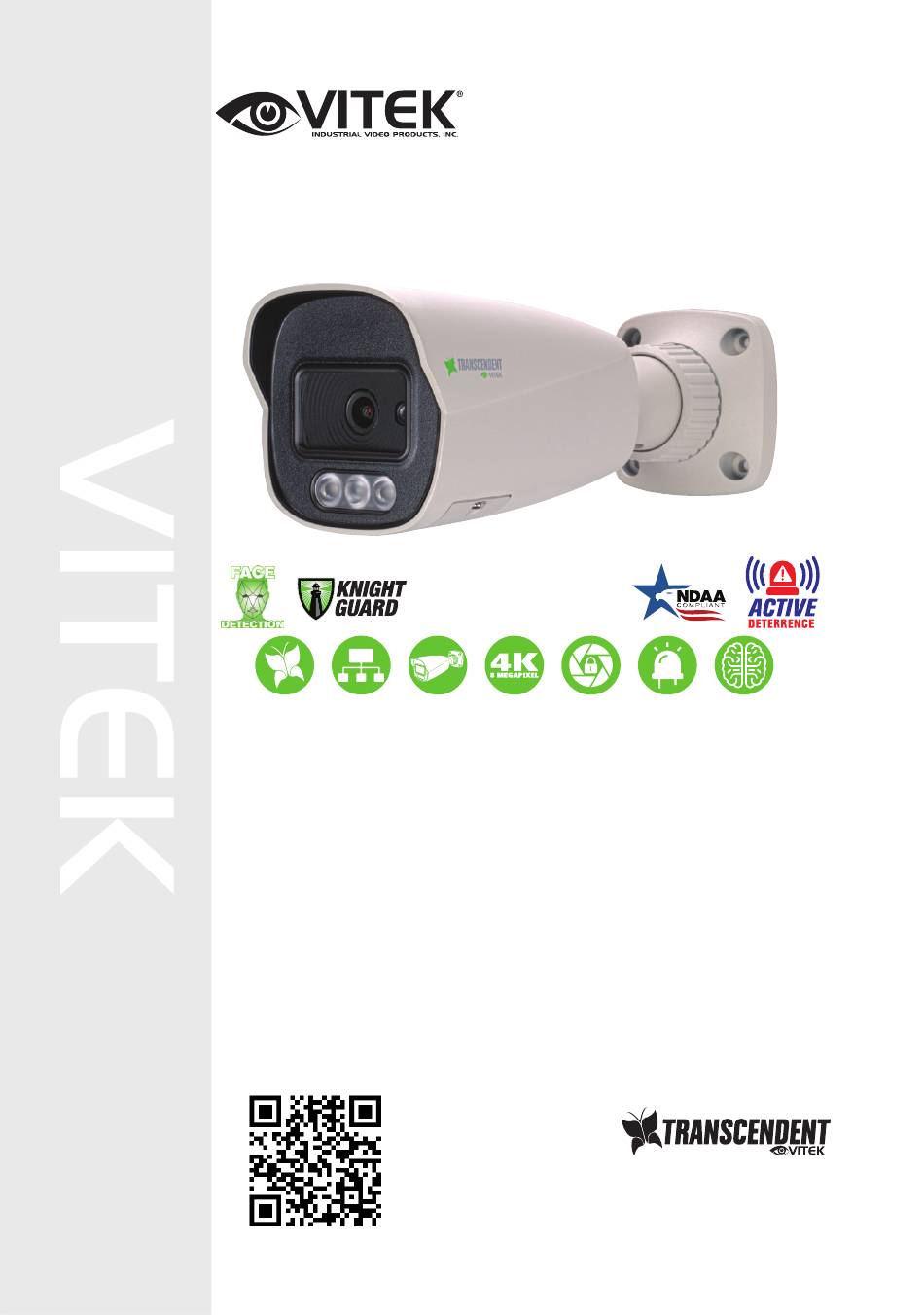

QUICK START GUIDE
TRANSCENDENT
NETWORK
FEATURES:
•
1/1.8" 8.0 MegaPixel (4K) CMOS Image Sensor
•
Full Color at Night Camera with Active Deterrence
•
Up to 30fps @ 8MP (3840 × 2160)
•
2.8mm Fixed Iris Lens
•
White Light + Matrix IR (130' Range)
•
GEN IV Advanced Analytics including Face Detection
•
Integrated Audio + Speaker*
•
MicroSD Card Slot (256GB)
•
IP66 Weather Resistance
•
12VDC + PoE Operation
•
3-Year Warranty
*Please research local, state and federal laws regarding the implementation of audio surveillance.
VTC-TNB8FADW-2
Transcendent Knight Guard Active
Deterrence 8MP (4K) Advanced A.I.
BULLET CAMERA
8 MEGAPIXEL
FIXED LENS
PLEASE NOTE:
Complete User Guide, Software, Tools, and Updates are
available online. Scan the QR Code or visit:
http://www.vitekcctv.com/Downloads
Fixed Bullet Camera
WHITE LIGHT +
GEN. IV
IR ILLUMINATION
ANALYTICS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRANSCENDENT VTC-TNB8FADW-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vitek TRANSCENDENT VTC-TNB8FADW-2

Summary of Contents for Vitek TRANSCENDENT VTC-TNB8FADW-2

  • Page 1 VTC-TNB8FADW-2 Transcendent Knight Guard Active Deterrence 8MP (4K) Advanced A.I. Fixed Bullet Camera QUICK START GUIDE TRANSCENDENT NETWORK BULLET CAMERA 8 MEGAPIXEL FIXED LENS WHITE LIGHT + GEN. IV IR ILLUMINATION ANALYTICS FEATURES: • 1/1.8” 8.0 MegaPixel (4K) CMOS Image Sensor •...

  • Page 2: Components And Accessories

    Components and Accessories Camera Drill Template Quick Guide Plastic Plugs Screws Network Coupler Overview 1. Ethernet Connector 2. Audio Input Connector 3. Audio Output Connector 4. Alarm Input / Output 5. Power Connector 6. Speaker 7. Lock Ring 8. Mounting Base 9.

  • Page 3: Installation

    Weather Resistant Network Coupler 1. Loosen the nut from the Weather Resistant Network Coupler, 2. Run ethernet cable through coupler, then attach a RJ-45 connector. 3. Tighten the nut and coupler for a weather resistant seal. Installation Before beginning installation, make sure that the wall or ceiling is strong enough to withstand 3 times the weight of the camera.
  • Page 4 2. Route and connect relevant cables using the Weather Resistant Network Coupler instructions provided on the previous page. Ground Wire Connection 3. Attach the mounting base to the wall with the provided screws. 4. Loosen the locking ring to adjust the viewing angle of the camera.

  • Page 5: Lan Configuration

    LAN Configuration Switch Network Cable Network Cable MENU IP Camera Computer Router The camera can be accessed on the local network either using the IP-Tool or directly in a web browser. Accessing the Camera Using the IP-Tool 1. Make sure the camera and PC are connected to the LAN. 2.
  • Page 6 4. Double-click the IP address and then the system will pop up the web browser to connect IP-CAM. Edge in IE mode / IE browser will download the Active X. control. After downloading, a login window will pop up as shown below: Input the user name and password to log in.

  • Page 7: Wan Configuration

    2. Open Edge in IE mode / IE browser and input the default address of IP-CAM and confirm. Edge in IE mode / IE browser will download an Active X control. 3. After downloading the Active X control, the login box appears. 4.
  • Page 8 How to Set Up Audio / Light Alert on Event 1. Log into camera. Default username is admin and password is 123456. 2. Click on Config Tab. 3. Under Event click on event that will trigger audio and / or light. Line crossing as an example.
  • Page 9 5. Click on “Area” at top and then click on “Draw Area”, then left click and hold to draw the line. After the line is in the image, select which direction trips the event, A>B, A<B or A><B, then click “Save”. 6.
  • Page 10 DETAILED SPECIFICATIONS - VTC-TNB8FADW-2 Image Sensor 1/1.8” 8.0 MegaPixel (4K) Progressive Scan CMOS Image Size 8 MegaPixel (3840 × 2160) 8MP(3840×2160 ),6MP(3072×2048 ),5MP(2592×1944 ),4MP(2592×1520 ), 2K (2560×1440 ), 3MP Resolution (2304×1296),1080P(1920 ×1080),720P(1280×720), D1, VGA(640×480), CIF, 480 × 240 Frame Rate 30fps @ 8MP and Lower Main-Stream 8MP/6MP/5MP/4MP/2K/3MP/1080P/720P (50Hz: 1~25fps)
  • Page 11 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR VTC-TNB8FADW-2 VT-TJB08 Optional Junction Box VT-TCNMT VT-TPLMT Transcendent Universal Transcendent Universal Corner Mount (reqs. VT-TJB08) Pole Mount (reqs. VT-TJB08) 8.47” 6.43”...
  • Page 12 OPTIONAL ACCESSORIES AND RELATED PRODUCTS FOR NDAA COMPLIANT TRANSCENDENT IP CAMERAS TRANSCENDENT NVRs! TRANSCENDENT NVRs! A Standalone Solution with GEN. IV Advanced Analytic Support and NDAA Compliance! • 8MP (4K) HDMI Output • H.265S / H.265+ / H.265 / H.264 Video Compression •...
  • Page 13 Also Consider Vitek NDAA Compliant Wireless Access Points to Reduce Costly Cable Installation! VT-WAP1150 and VT-WAP2150 High Speed 5.8GHz DIP AP / CPE Wireless Bridge w/ 8MB Storage, 64MB RAM, 150MBps transmission, and Point-to-Multi-Point (P2MP) Topology With high speed transmission of 150Mbps and a wireless range of 3000ft.

  • Page 14: Limited Product Warranty

    (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a VITEK Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, willful or accidental damage, caused by excessive voltage or lightning.

Table of Contents
