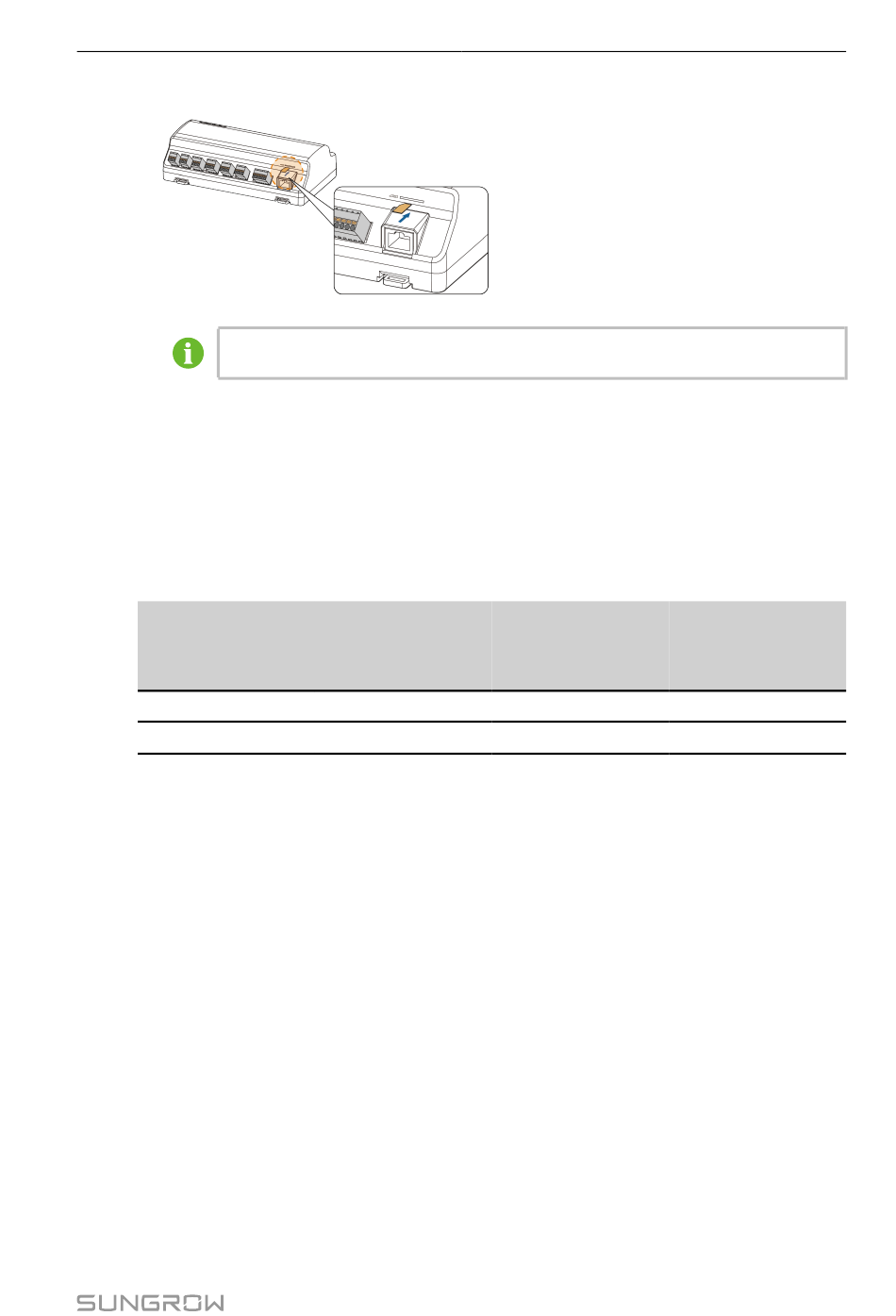

• Insert a Micro-SIM card into the SIM card slot.
The Micro-SIM card supports hot-plugging.
5.6

Connection to Power Box

The Logger1000 supports DC24V power supply. Prepare two-core DC cable, three-core AC
cable, and grounding cable before wiring. Power cable specifications are shown in the table
below.
table 5-3 Power cable specification
Cable
DC cable, AC cable
Grounding cable
Power cable wiring steps are as follows:
Recommended
cross-section
1mm 2 ~1.5mm 2
1mm 2 ~1.5mm 2
Length of cable
jacket to be
stripped off
15mm
8mm~10mm
5 Electrical Connection
Length of insula-
tion to be stripped
off
8mm~10mm
-
