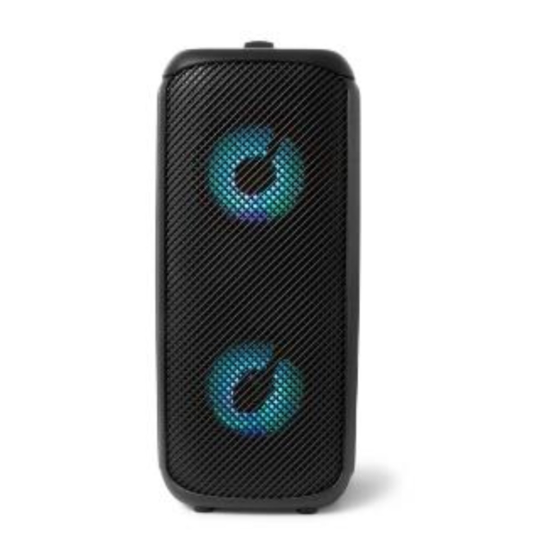

Brainz PARTY DUO LED BOX Instruction Manual

PLEASE READ THE INSTRUCTIONS CAREFULLY

What you need

•
DC5V/USB Cable (included)
•
Mobile phone, tablet, or laptop with Bluetooth (not included)
•
TF/SD Card (optional, not included)

How to charge the Party Duo LED Box

Insert the provided DC5V cable into the back of the Party Duo LED Box and connect the USB end to a power
source. Once you have done this, the speaker is charging.

How to set up the device

The speaker can be used as a Bluetooth speaker. Slide the On/Off button at the back of the speaker to the right.
When you want to use a Bluetooth connection, open the Bluetooth menu on your phone and search for 'BRAINZ
S110'. Click on it and wait for your phone to give a notification that it is connected to the speaker.
Volume
To increase the volume, press and hold the + button at the back of the speaker. To decrease the volume, press
and hold the - button.
Pause music
Press the pause button once to pause the music (►ǁ). Repeat this to resume the music.
Next/previous track
Press the + button once to go to the next track. Press the - button once to go to the previous track.
Turning on/off the LED lighting
Hold the 'M' button for 3 seconds to turn the LED lighting on/off.
Switching between modes
Click the 'M' button at the back of the device to switch between Bluetooth, USB, and SD/TF.
USB
Through the USB port, you can play your own music. Insert a USB flash drive into the designated access port of
the karaoke speaker.
TF/SD
It is possible to play music with your own SD card. Insert your SD card into the 'TF' port.
Connecting a microphone
At the back of the Party Duo LED Box, there is a microphone input port. A microphone can be connected here
(microphone not included).
Note:
Do not use a charger with a higher voltage than what is suitable for this product.
For more information about this product, please visit
BRAINZ PARTY DUO LED BOX
INSTRUCTION MANUAL
AND KEEP THEM FOR FUTURE REFERENCE
This manual is valid for article number 38596.
EN
www.brainz-electronics.nl
