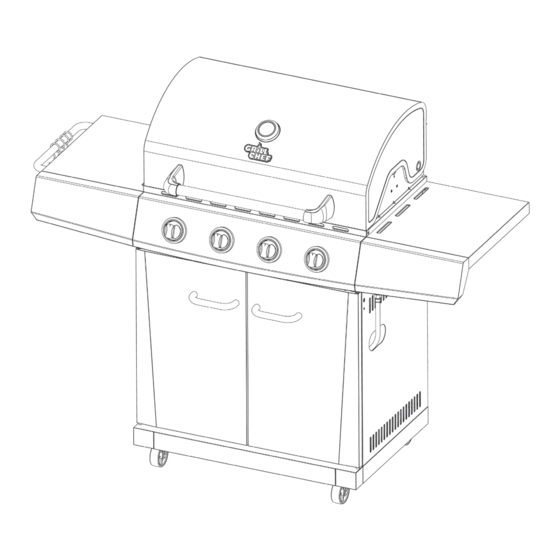

Outdoor LP Gas Barbecue Grill
WARNING
FOR YOUR SAFETY:
For Outdoor Use Only
(outside any enclosure)
WARNING
FOR YOUR SAFETY:
1. Improper installation, adjustment,
alteration, service or maintenance can
cause injury or property damage.
2. Read the installation, operation, and
maintenance instructions thoroughly
before installing or servicing this
equipment.
3. Failure to follow these instructions could
result in fire or explosion, which could
cause property damage, personal injury, or
death.
4. This instruction manual contains Important
information necessary for the proper
assembly and safe use of the appliance.
5. Read and follow all warnings and
instructions before assembling and using
the appliance.
6. Follow all warnings and instructions when
using the appliance.
7. Keep this manual for future reference.
DANGER
If you smell gas -
1. Shut off gas to appliance.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
WARNING
FOR YOUR SAFETY:
1. Do NOT store or use gasoline or other
flammable liquids or vapors in the vicinity
of this or any other appliance.
2. An LP cylinder not connected for use shall
NOT be stored in the vicinity of this or any
other appliance.
DANGER
Never operate this appliance unattended.
OWNER'S MANUAL
Model No. GC1610
Table of Contents
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 2
Expanded View & Hardware . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Assembly Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Installing LP Gas Tank. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Operating Instructions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Cleaning and Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Product Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
The use and installation must conform with local codes or, in the absence of local codes, with either the
National Fuel Gas Code, ANSI Z223.1/NFPA 54, Natural Gas and Propane Installation Code, CSA B149.1,
or Propane Storage and Handling Code, B149.2, or the Standard for Recreational Vehicles, ANSI A 119.2/
NFPA 1192, and CSA Z240 RV Series, Recreational Vehicle Code, as applicable.
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP
FOR FUTURE REFERENCE.
If you are assembling this unit for someone else, give this manual to them to read and save for future
reference.
Manufactured in China for:
S.R. Potten Ltd
1645, 50th Avenue
Lachine, Québec, Canada H8T 3C8
Made from 75% Bagasse
(environmentally friendly sugar
cane pulp by-product)
GC1610-EF-OM-F105
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Grill Chef GC1610
Summary of Contents for Grill Chef GC1610
-
Page 1: Table Of Contents
OWNER’S MANUAL Outdoor LP Gas Barbecue Grill Model No. GC1610 WARNING FOR YOUR SAFETY: For Outdoor Use Only (outside any enclosure) WARNING FOR YOUR SAFETY: 1. Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage. 2. Read the installation, operation, and... -
Page 2: Important Safeguards
Outdoor LP Gas Barbecue Grill Model No. GC1610 Important Safeguards W DANGER: Failure to follow the dangers, warnings and cautions in this manual may result in serious bodily injury or death, or in a fire or an explosion causing damage to property. - Page 3 Contact 1-800-667-7313 for assistance. Do not return to place of purchase. W Do NOT install or use in or on boats or recreational vehicles. W Do NOT attempt to disconnect the gas regulator from the cylinder or any gas fitting while the grill is in use. W When cooking, fire extinguishing materials should be readily accessible.
-
Page 4: Expanded View & Hardware
Outdoor LP Gas Barbecue Grill Model No. GC1610 Parts List Expanded View Warming Rack Temperature Gauge Cooking Grid (3) Brand Plate* Lid* Lid Handle* Heat Plate (4) Burner (4)* Grill Body Assembly* Control Knob Bezel (4)* Control Knob (4) Towel Bar... -
Page 5: Assembly Instructions
Contact 1-800-667-7313 for assistance. Do not return to place of purchase. Assembly Instructions DO NOT RETURN TO PLACE OF PURCHASE. Attach Casters For assistance, call 1-800-667-7313 toll-free. Please have Note: Locking casters go in the back. your owner’s manual and model number available for reference. - Page 6 Outdoor LP Gas Barbecue Grill Model No. GC1610 Assembly Instructions (continued) Attach Front Cart Frame Attach Tank Retainer Wire A Attach Tank Retainer Wires B Attach Door Handles...
- Page 7 Contact 1-800-667-7313 for assistance. Do not return to place of purchase. Attach Doors Attach Temperature Gauge and Control Knobs Attach Grill Body Assembly Assemble Side Shelves...
- Page 8 Outdoor LP Gas Barbecue Grill Model No. GC1610 Assembly Instructions (continued) Attach Left Side Shelf Attach Right Side Shelf Note: Leave 5 mm of bolt threads exposed. Note: Leave 5 mm of bolt threads exposed. Secure Left Side Shelf Secure Right Side Shelf...
- Page 9 Contact 1-800-667-7313 for assistance. Do not return to place of purchase. Insert Heat Plates Insert Cooking Grids and Warming Rack Insert Grease Tray and Grease Cup Insert Regulator...
-
Page 10: Installing Lp Gas Tank
Outdoor LP Gas Barbecue Grill Model No. GC1610 Installing LP Gas Tank Operating Instructions To operate, you will need one precision-filled standard grill LP gas Figure 1: Main Burners tank with external valve threads. Checking for Leaks W CAUTION: LP gas tank must be properly... -
Page 11: Cleaning And Care
Contact 1-800-667-7313 for assistance. Do not return to place of purchase. Cleaning and Care (continued) Figure 6 Cleaning Main Burners After lighting, observe the burner flame. Make Figure 5 sure all burner ports are lit and flame height Burner Flame Conditions Turn LP gas tank valve to “CLOSED.”... -
Page 12: Limited Warranty
Outdoor LP Gas Barbecue Grill Model No. GC1610 Limited Warranty S.R. POTTEN Ltd. warrants to the original owner of each S.R. Potten Ltd. Gas Barbecue that it is free from defects in workmanship and materials under conditions of normal residential use. -
Page 13: Troubleshooting
Contact 1-800-667-7313 for assistance. Do not return to place of purchase. Troubleshooting Problem Possible Cause Prevention/Cure Make sure regulator is securely attached to the LP gas tank per “Installing LP LP gas tank valve is closed Gas Tank,” then turn LP gas tank valve to “OPEN” LP gas tank is low or empty Exchange, refill or replace LP gas tank Turn LP gas tank valve to “CLOSED”...
