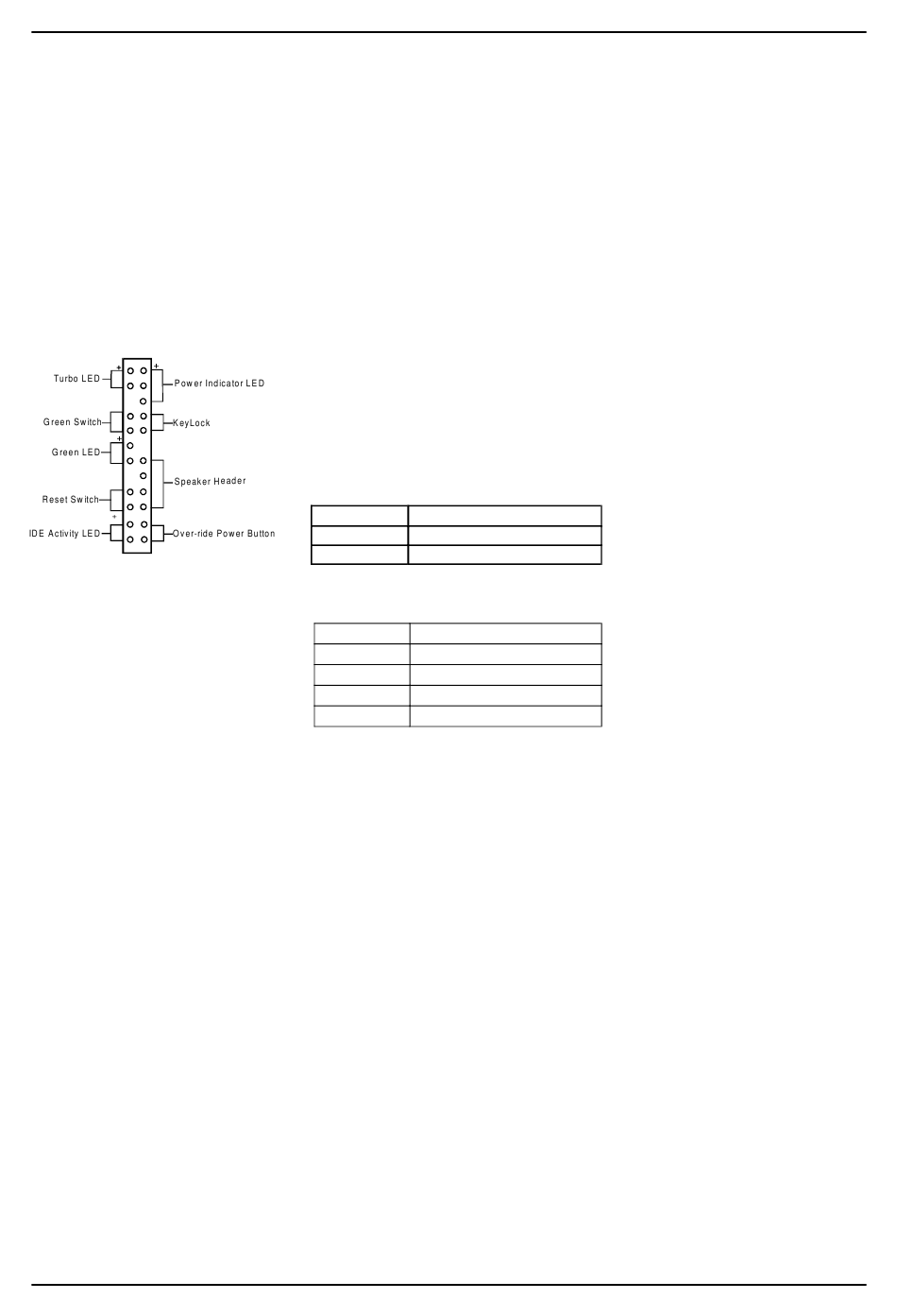

C. Green Switch/Green LED Connector
Some ATX cases provide a Green switch which is used
to put the system in Suspend mode. In Suspend mode,
the power supply to the system is reduced to a trickle,
the CPU clock is stopped, and the CPU core is in it's
minimum power state. The system is woken up whenever
the keyboard or mouse is touched. The system resumes
in different ways as defined by Power Management Setup
screen in BIOS.
D. System Reset Switch Connector
This connector should be connected to the reset switch
on the front panel of the system case. The reset switch
allows you to restart the system without turning the power
off.
Pin
1
2
E. Speaker Connector
PIN
1 Speaker Signal
2
3
4
F. IDE Activity LED Connector
The IDE activity LED lights up whenever the system
reads/writes to the IDE devices.
G. Turbo LED Connector
This mainboard does not have a Turbo/De-turbo speed
modes. Even though this function does not exist, the turbo
LED will light when the LED is connected and turbo
button pressed.
Definition
System
GND
Definition
NC
NC
+5V DC
Hardware Setup
11
