Mainboard Layout; Connector And Jumper Reference Chart - CHAINTECH CT-6AIA2 Manual

Table of Contents

Advertisement

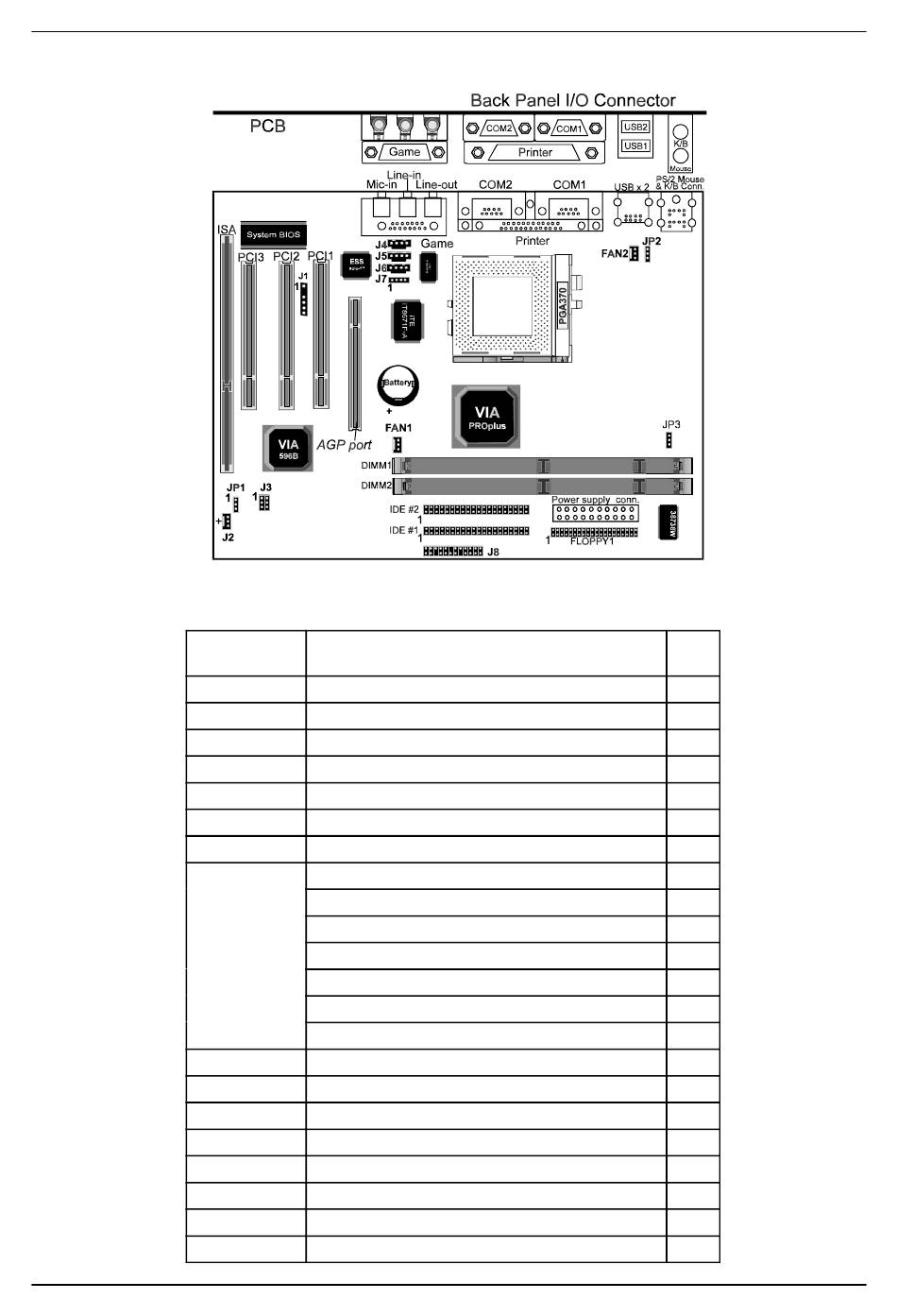

1-3 Mainboard Layout

1-3 Mainboard Layout
1-3 Mainboard Layout
1-3 Mainboard Layout
1-3 Mainboard Layout

1-4 Connector and Jumper Reference Chart

Connector No.
Jumper &
J1
Infrared connector
J2
WOL (Wake-on-LAN) connector
J3
Creative's SB-LINK Sound connector
J4
CD-ROM audio in connector
J5
AUX audio-in connector
J6
Modem Telephony connector
J7
Volume control connector
Keyboard lock & Power indicator LED connector
System reset switch connector
Speaker connector
J8
Green switch/Green LED connector
Turbo LED connector
IDE activity LED connector
Over ride power button connector
PW1
ATX Power supply connector
FAN1
System cooling fan connector
FAN2
CPU cooling fan connector
JP1
Clear CMOS data jumper
JP2
Power-on by Keyboard
JP3
System bus setting jumper
Ports
PS/2 mouse and keyboard ports
Ports
USB (Universal Serial Bus) ports
Function
Introduction
Page
12
15
15
14
14
14
14
10
11
11
11
11
11
10
9
12
12
13
12
15
13
16
5
