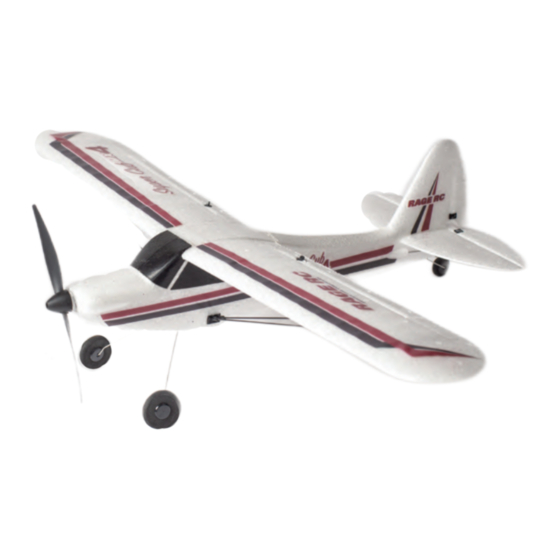

- Page 1 Specifications Wingspan 19 3/4” (500mm) Length 13 15/16" (355mm) Weight with Ba�. 1.9 oz. (54g) Ba�ery 1S 3.7v 400mAh LiPo Transmi�er 5-Channel, 2.4GHz system Airplane Control 4-channels - Thro�le, Aileron, Rudder, Elevator On-Board-Electronics Combina�on RX/ESC with Integrated 1.3-gram Servos...
-
Page 2: General Precautions
General Precautions • Never operate your model if the voltage is too low. • Always operate your model in an open area away from obstacles, people, vehicles, buildings, etc. • Carefully follow the and warnings for this and any support equipment. -
Page 3: Lipo Battery Warning
Super Cub MX4 RTF Contents LiPo Battery Warning warnings must be followed exactly to prevent property damage and/or personal injury Charging the LiPo Battery It is important to fully charge the LiPo before your first flight. The USB charger can be powered by the USB port on your computer or a wall plug USB port. -
Page 4: Battery Install
Super Cub MX4 Assembly The Super Cub MX4 comes nearly ready-to-fly. All that is required to complete is the installa�on of the landing gear. Insert the landing gear wire into the slot at the rear of the box. The wheels should be raked for- ward. -
Page 5: Arming The Motor
, always unplug the flight first and then turn Control Functions The Super Cub MX4 comes nearly completely assembled. All the control surfaces have been pre-connected. Check that the of movement is correct for each of the control func- This is accomplished by first turning on your... - Page 6 Center Control Surfaces With both the and the powered on and the PASS switch in the "No Assist" check the control surfaces for correct centering. If the surface is not centered, make the adjustment to the pushrod length by either opening or closing the gap at the U-shaped of the pushrod.
-
Page 7: Control Movement
All trims should be centered mechanically as shown in the Center Control Surfaces above. If adjustments are required for level flight when Elevator flying the Super Cub MX4, the electronic trims Trim Rudder Trim should be used. If any up elevator trim is needed, Aileron press the bo�om half of the elevator trim bu�on... - Page 8 Pilot Assist Stability Software (PASS) PASS (Pilot Assist Stability S is incorporated into your Super Cub MX4. It allows the pilot to tailor the response of the airplane to his As your skills grow the of the Super Cub MX grow with you.
- Page 9 Auto-Roll Press the Stunt Func�on Bu�on then move the aileron s�ck in either direc�on to auto-roll the aircra�. A�er comple�ng the roll the aircra� will return to level flight. Auto-Loop Press the Stunt Func�on Bu�on then move the elevator s�ck down (up elevator) to auto-loop the aircra�.
-
Page 10: First Flight
Calibration The PASS system used in the Super Cub MX4 is pre-calibrated from the factory. Recalibration is only necessary if the aircraft does not respond correctly (pitches up or down) when the PASS switch is activated. With the aircraft sitting on a level surface and the tail raised to a “wings level”... -
Page 11: Parts List
Parts List See your local hobby shop or place of purchase first. If unavailable, parts can be ordered direct at www.ragerc.com or call 1-866-724-3811 M-F 8:00-5:00PM Mountain Time. RGRA1186 Servo Horns (Set of 4) RGRA1187 4-in-1 Control Board RGRA1190 1S USB LiPo Charger RGRA1209 Front Landing Gear RGRA1211... -
Page 12: Limited Warranty
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. Further, in no event shall the liability of Rage R/C exceed the individual price of the Product on which liability is asserted. As Rage R/C has no control over use, setup, final assembly, modifi...
