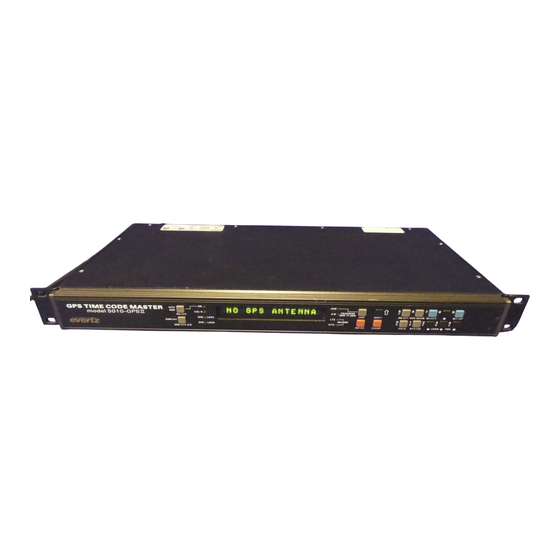

evertz 5010-GPSII Instruction Manual

Gps timecode master
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
© Copyright 1998, 1999, 2001, 2005
EVERTZ MICROSYSTEMS LTD.
5288 John Lucas Drive, Burlington, Ontario, Canada, L7L 5Z9
Phone:
905-335-3700
Sales Fax:
905-335-3573
Service Fax:
905-335-7571
Internet: Tech Support: service@evertz.com
Sales:
Web Page:
Revision 1.2.3 February 2005
The material contained in this manual consists of information that is the property of Evertz Microsystems and is
intended solely for the use of purchasers of the model 5010-GPS II GPS Timecode Master. Evertz Microsystems
expressly prohibits the use of this manual for any purpose other than the operation of the 5010-GPS II.
All rights reserved. No part of this publication may be reproduced without the express written permission of
Evertz Microsystems Ltd. Copies of this guide can be ordered from your Evertz products dealer or from Evertz
Microsystems.
Models 5010-GPSII
& 5010-GPSII-VITC
GPS Timecode Master
Instruction Manual
sales@evertz.com
http://www.evertz.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5010-GPSII and is the answer not in the manual?

Questions and answers

Related Manuals for evertz 5010-GPSII

Summary of Contents for evertz 5010-GPSII

  • Page 1 Revision 1.2.3 February 2005 The material contained in this manual consists of information that is the property of Evertz Microsystems and is intended solely for the use of purchasers of the model 5010-GPS II GPS Timecode Master. Evertz Microsystems expressly prohibits the use of this manual for any purpose other than the operation of the 5010-GPS II.

  • Page 2: Table Of Contents

    Model 5010-GPS II GPS Timecode Master Manual TABLE OF CONTENTS INTRODUCTION ......................... 1-1 1.1. THE GLOBAL POSITIONING SYSTEM – OVERVIEW .............. 1-3 1.2. HOW TO USE THIS MANUAL ....................1-4 1.3. DEFINITIONS ..........................1-4 INSTALLATION........................... 2-1 2.1. REAR PANEL CONNECTIONS ....................2-1 2.1.1.
  • Page 3 Model 5010-GPS II GPS Timecode Master Manual OPERATING INSTRUCTIONS....................3-1 3.1. FRONT PANEL OVERVIEW ....................... 3-1 3.1.1. Overview of the Pushbuttons ..................3-2 3.1.2. Overview of the Shifted Key Functions ................. 3-3 3.1.3. Status Indicators ......................3-3 3.2. FRONT PANEL DISPLAY FUNCTIONS ..................3-4 3.2.1.
  • Page 4 Model 5010-GPS II GPS Timecode Master Manual 3.8. PROGRAMMING THE OVERALL CONFIGURATION FUNCTIONS ........3-33 3.8.1. Selecting the Video Standard..................3-35 3.8.2. Adjusting The Horizontal Character Size ..............3-35 3.8.3. Adjusting the Front Panel Display Brightness ............. 3-35 3.8.4. Adjusting the LTC Generator Output Level ..............3-35 3.8.5.
  • Page 5 Figure 2-5: Accutime I Antenna Extender Cable................2-9 Figure 2-6: Accutime II or Accutime 2000 to 5010-GPS II Interface Cable (Evertz part WA-T09) ..............2-10 Figure 2-7: Accutime II or Accutime 2000 Extender Cable ............2-11 Figure 3-1: Front Panel Layout ....................3-1 Figure 3-2: On Screen Programming Menu Overview ..............
  • Page 6 WARNING Changes or Modifications not expressly approved by Evertz Microsystems Ltd. could void the user’s authority to operate the equipment. Use of unshielded plugs or cables may cause radiation interference. Properly shielded interface cables with the shield connected to the chassis ground of the device must be used.
  • Page 7 Evertz products are for informational use only and are not warranties of future performance, either express or implied. The only warranty offered by Evertz in relation to this product is the Evertz standard limited warranty, stated in the sales contract or order confirmation form.
  • Page 8 This page left intentionally blank Revision 1.2.3...
  • Page 9 Model 5010-GPS II GPS Time Code Master Manual INTRODUCTION ......................... 1-1 1.1. THE GLOBAL POSITIONING SYSTEM – OVERVIEW .............. 1-3 1.2. HOW TO USE THIS MANUAL ....................1-4 1.3. DEFINITIONS ..........................1-4 Revision 1.2.3...
  • Page 10 Model 5010-GPS II GPS Time Code Master Manual This page left intentionally blank Revision 1.2.3...

  • Page 11: Introduction

    Model 5010-GPS II GPS Time Code Master Manual INTRODUCTION The model 5010-GPS II Time Code Master is a full function time code reader/generator system that interfaces to a GPS receiver, allowing the generator time to be precisely synchronized to a world wide time standard known as the Global Positioning system.
  • Page 12 Model 5010-GPS II GPS Time Code Master Manual The 5010-GPS II is capable of displaying time/date information in either the Universal Coordinated Time (UTC) or the local time that has been adjusted with the appropriate time zone offset from UTC. In local time mode, the generator encodes the time and date adjusted for the local time zone offset from UTC.

  • Page 13: The Global Positioning System - Overview

    Model 5010-GPS II GPS Time Code Master Manual The VITC reader is designed for use with non time base corrected video signals. Although the use of time base correctors will enhance the recovery range of the VITC reader, the amount of improvement is dependent on the type of TBC and transport being used.

  • Page 14: How To Use This Manual

    Model 5010-GPS II GPS Time Code Master Manual As a satellite system, the GPS is immune from the limitations of land based systems previously available. By computing the distance to GPS satellites orbiting the earth, a GPS receiver can calculate an accurate position. This process is called satellite ranging.
  • Page 15 Model 5010-GPS II GPS Time Code Master Manual DROP FRAME: In NTSC systems, where the frame rate is 29.97002618 frames per second, the drop frame mode permits time of day indexing of the frame numbers by dropping certain frame numbers. Specifically, frames 0, and 1 at the beginning of each minute except minutes 0,10,20,30,40, &...
  • Page 16 Model 5010-GPS II GPS Time Code Master Manual JULIAN DATE: The Julian day number is a count of days elapsed since Greenwich mean noon on January 1, 4713B.C. January 1st, 1993, was JD 2448989; January 1st, 2000 will be JD 2451545. MODIFIED JULIAN DATE (MJD): The Modified Julian Date is a continuous count of the number of days elapsed since 17 November 1858.
  • Page 17 Figure 2-4: Accutime I Antenna to 5010-GPS Interface Cable ............ 2-9 Figure 2-5: Accutime I Antenna Extender Cable................2-9 Figure 2-6: Accutime II or Accutime 2000 to 5010-GPS II Interface Cable (Evertz part WA-T09) ..............2-10 Figure 2-7: Accutime II or Accutime 2000 Extender Cable ............2-11 Revision 1.2.3...
  • Page 18 Model 5010-GPS II GPS Time Code Master Manual This page left intentionally blank Revision 1.2.3...

  • Page 19: Installation

    Model 5010-GPS II GPS Time Code Master Manual INSTALLATION 2.1. REAR PANEL CONNECTIONS There are two different versions of the 5010-GPS II hardware. Earlier versions have the rear panel layout shown in Figure 2-1 and later versions have the rear panel layout shown in Figure 2-2. The labels on the connectors are mostly the same, but many of the connectors have been relocated to better suit the layout of the new circuit board.

  • Page 20: Character Generator Connections

    Model 5010-GPS II GPS Time Code Master Manual the VITC OUT B output on older style units. On newer style units when the Bypass relay option is fitted, this output is bypass protected by a relay in the case of power loss to the unit.

  • Page 21: Power Requirements

    Model 5010-GPS II GPS Time Code Master Manual 2.3. POWER REQUIREMENTS 2.3.1. Selecting the Correct Mains Voltage Power requirements are 115 or 230 volts AC at 50 or 60 Hz, switch selectable on the rear panel. Power should be applied by connecting a 3 wire grounding type power supply cord to the power entry module on the rear panel.

  • Page 22: Video Connections

    Model 5010-GPS II GPS Time Code Master Manual 2.4. VIDEO CONNECTIONS 2.4.1. Generator Sync Lock For proper frame/address synchronization in videotape applications, the generator must be locked to a stable 1 volt p-p composite video or colour black source, applied to the generator REF VIDEO IN video loop. The internal sync separator has a high impedance input tapped off the loop through;...

  • Page 23: Vitc Reader Video Input (Model 5010-Gps Ii-Vitc Only)

    Model 5010-GPS II GPS Time Code Master Manual 2.4.4. VITC Reader Video Input (model 5010-GPS II-VITC only) Video associated with the LTC code or video with VITC recorded on it is connected to the READER VITC IN loop. The video input has a high impedance input tapped off the loop through;...

  • Page 24: Mounting The Gps Smart Antenna

    Model 5010-GPS II GPS Time Code Master Manual 2.6.1. Mounting the GPS Smart Antenna The smart antenna's enclosure is completely waterproof and is designed for outdoor installation. It is protected against jamming signals and thus is suitable for reliable operation in most environments. Select an outdoor location for the antenna, like the roof of your building that has a relatively unobstructed view of the sky.

  • Page 25: Figure 2-3: Pole Mounting The Smart Antenna

    Model 5010-GPS II GPS Time Code Master Manual Figure 2-3: Pole Mounting the Smart Antenna Secure the mounting pole to a solid structure so that it is oriented vertically. Thread the smart antenna onto the pole or pile and hand tighten until snug. CAUTION: Over-tightening the smart antenna on the pole or using a tool could damage the threaded socket in the base of the antenna.

  • Page 26: Connecting The Accutime I Antenna To The 5010-Gps

    Model 5010-GPS II GPS Time Code Master Manual 2.6.2. Connecting the Accutime I Antenna to the 5010-GPS A standard 50 foot long interface cable (Evertz part WA-P20) is provided with the 5010-GPS and the Accutime I smart antenna. One end of this cable is fitted with a weather-tight 7 pin Molex connector.

  • Page 27: Connecting The Accutime Ii Or Accutime 2000 Antenna To The 5010-Gps Ii

    2.6.3. Connecting the Accutime II or Accutime 2000 Antenna to the 5010-GPS II A standard 50 foot long interface cable (Evertz part WA-T09) is provided with the 5010-GPS II and the smart antenna. One end of this cable is fitted with a weather-tight 12 pin Molex connector.

  • Page 28: Figure 2-6: Accutime Ii Or Accutime 2000 To 5010-Gps Ii

    Receive Port (R+) 3 ------------------------------7 TX B + Transmit Port (T-) 4 ------------------------------8 RX A - ------------------- Drain Wire Shield Figure 2-6: Accutime II or Accutime 2000 to 5010-GPS II Interface Cable (Evertz part WA-T09) INSTALLATION Page 2-10 Revision 1.2.3...

  • Page 29: System Startup

    Model 5010-GPS II GPS Time Code Master Manual 9 pin "D" style 9 pin "D" style (female) (male) Pair # Pin Description 7 ---------------------------- 1 -------------------7 TX B + 2 ---------------------------- 1 -------------------2 TX A - 8 ---------------------------- 2 -------------------8 RX A - 3 ---------------------------- 2 -------------------3 RX B +...

  • Page 30: Serial Remote Control

    Model 5010-GPS II GPS Time Code Master Manual 2.7.2. Serial Remote Control The 5010-GPS II is fitted with a nine pin subminiature 'D' connector labeled Serial I/O. This port is configured at the factory for connection to the GPS Smart Antenna. (For operation with the GPS antenna, see section 2.6.2 and 2.6.3.) This port can also be configured as an RS-232 port to upgrade the firmware in the unit.
  • Page 31 Model 5010-GPS II GPS Time Code Master Manual This page left intentionally blank INSTALLATION Page 2-13 Revision 1.2.3...
  • Page 32 Model 5010-GPS II GPS Time Code Master Manual OPERATING INSTRUCTIONS....................3-1 3.1. FRONT PANEL OVERVIEW ....................... 3-1 3.1.1. Overview of the Pushbuttons ..................3-2 3.1.2. Overview of the Shifted Key Functions ................. 3-3 3.1.3. Status Indicators ......................3-3 3.2. FRONT PANEL DISPLAY FUNCTIONS ..................3-4 3.2.1.
  • Page 33 Model 5010-GPS II GPS Time Code Master Manual 3.7. PROGRAMMING THE CHARACTER GENERATOR FUNCTIONS ......... 3-31 3.7.1. Selecting the Character Size..................3-31 3.7.2. Selecting the Character Style..................3-32 3.7.3. Blanking the Frames Display ..................3-32 3.7.4. Blanking the Fields Display ..................3-32 3.7.5.

  • Page 34: Operating Instructions

    Model 5010-GPS II GPS Time Code Master Manual OPERATING INSTRUCTIONS The model 5010-GPS II Timecode Master combines the latest LSI technology with sophisticated microcontroller firmware to provide a powerful, flexible time code system. The model 5010-GPS II is available in two versions.

  • Page 35: Overview Of The Pushbuttons

    Model 5010-GPS II GPS Time Code Master Manual 3.1.1. Overview of the Pushbuttons Sixteen front panel pushbuttons are used to control the operation of the 5010-GPS II. VITC GEN ON/OFF Is used to turn the VITC generator on and off. (Model 5010-GPS II-VITC only) The VITC indicator is ON when the VITC generator is enabled.

  • Page 36: Overview Of The Shifted Key Functions

    Model 5010-GPS II GPS Time Code Master Manual VCG ON/OFF Turns the character generator ON and OFF. When in the VCG window select mode the VCG ON/OFF key is used to turn individual windows ON and OFF. SETUP Initiates SETUP mode and displays the on screen programming menu.

  • Page 37: Front Panel Display Functions

    Model 5010-GPS II GPS Time Code Master Manual synchronized to the NTSC 4 field or PAL 8 field colour frame sequence. GEN LOCK Indicates that the 5010-GPS II is properly genlocked to a video reference. The VIDEO TYPE setting on the Engineering Setup menu is used to select the video type.

  • Page 38: Special Front Panel Indicators

    Model 5010-GPS II GPS Time Code Master Manual Jam Sync Offset register Time at which GPS resync will occur GPS@ Time at which Reader Time Event GPO will occur REVT Time at which Generator Time Event GPO will occur GEVT Date on which Daylight Savings time begins DSTBEG Date on which Daylight Savings time ends...

  • Page 39: Character Generator Functions

    Model 5010-GPS II GPS Time Code Master Manual 3.3. CHARACTER GENERATOR FUNCTIONS Four separately positionable character windows displaying time or user bits from the generator or reader are available. The four arrow keys ( , ) control the position of all the windows. The VCG ON/OFF key selects whether the VCG keyer is on or off.

  • Page 40: Field Identification

    Model 5010-GPS II GPS Time Code Master Manual Standard Time Colon (:) Daylight Savings Time Period (.) 3.3.4. Field Identification When displaying time from the VITC generator or reader, (model 5010- GPS II-VITC only) the field number sequence will be displayed to the right of the time frames display.

  • Page 41: Figure 3-2: On Screen Programming Menu Overview

    Model 5010-GPS II GPS Time Code Master Manual GENERATOR READER GEN MODE ASSIGNMENT CHAR SIZE TIME USERBITS TINY TIME DATA VITC SMALL TIME RDR TIME LTC/VITC LARGE TIME RDR UB RDR MODE CHAR STYLE TIME DATE TIME USER WHITE GPS TIME DATE TIME DATA WHITE ON BLACK...

  • Page 42: Figure 3-3: Overview Of Front Panel Menu

    Model 5010-GPS GPS Time Code Master Manual GEN MODE RDR ASSIGNMENT VCG CHAR SIZE Gmode time data Assign ltc Size tiny Gmode time rtime Assign vitc Size small Gmode time rub Assign ltc/vitc Size large Gmode time date RDR MODE VCG CHAR STYLE Gmode gps date Rmode time data...

  • Page 43: Engineering Setup Menu

    Model 5010-GPS GPS Time Code Master Manual Changes made using the SETUP menu are only activated when you exit the SETUP menu and return to normal display mode. The GENERATOR drop down menu is used to program various generator modes such as selecting Drop Frame, Colour Frame, Jam Sync Modes, VITC Generator Line numbers, whether user bits contain static numbers or time information, etc.

  • Page 44: Figure 3-4: Overview Of Engineering Setup Menu

    Model 5010-GPS GPS Time Code Master Manual CONFIGURATION SERIAL PORT DEBUG VIDEO TYPE BAUD RATE RDR DIAGS AUTO 38400 NTSC 19200 9600 RAM VIEW 2400 HORZ CHAR SIZE NOT AVAILABLE PARITY HORIZONTAL NOVRAM VIEW CHAR SIZE = 10 FIXED TO EVEN NOT AVAILABLE TO ADJUST WORD SIZE...

  • Page 45: Programming The Generator Setup Functions

    Model 5010-GPS GPS Time Code Master Manual VIDEO TYPE SERIAL BAUD RATE READER DIAGS Video type Auto Baud Rate 38400 Not applicable Video type Ntsc Baud Rate 19200 RAM VIEWER Video type Pal Baud Rate 9600 Not applicable Baud Rate 2400 HORZ CHAR SIZE NOVRAM VIEWER SERIAL PARITY...

  • Page 46: Configuring The Generator Operating Modes

    Model 5010-GPS GPS Time Code Master Manual GENERATOR GEN MODE TIME USERBITS TIME DATA TIME RDR TIME TIME RDR UB TIME DATE GPS TIME DATE GEN VITC LINES LINE 1 LINE 2 DROP FRAME NON DROP FRAME DROP FRAME NOT APPLICABLE IN JAM NOT APPLICABLE IN PAL COLOUR FRAME 2 FIELD...
  • Page 47 Model 5010-GPS GPS Time Code Master Manual TIME RDR TIME transfers the reader’s time bits to the generator user bits. The U/B TRANSFER LED will be on. Transferring reader time is useful when you want to record new continuous time code numbers and still retain the original time code numbers for future reference.

  • Page 48: Configuring The Date Format

    Model 5010-GPS GPS Time Code Master Manual 3.5.2. Configuring the Date Format The DATE FORMAT menu item is used to select the format of the date DATE FORMAT information in the user bits of the generator and reader. YY MM DD MODIFIED JULIAN YY MM DD configures the user bits for date encoding in TT YY MM DD...

  • Page 49: Setting The Generator Time

    Model 5010-GPS GPS Time Code Master Manual LOCAL TIME configures the generator to output its time as UTC adjusted by the programmed Time Zone Offset 3.5.4. Setting the Generator Time Press the DISPLAY key one or more times to display the generator time if it is not already displayed.

  • Page 50: Setting The Generator User Bits

    Model 5010-GPS GPS Time Code Master Manual 3.5.5. Setting the Generator User Bits Press the DISPLAY key one or more times to display the generator user bits if they are not already displayed. The display prompt will show GUB when user bits are displayed. The ENTER and CLEAR keys are used in conjunction with the numeric keys to set the generator user bits.
  • Page 51 Model 5010-GPS GPS Time Code Master Manual Press the DISPLAY key one or more times to display the generator user bits if they are not already displayed. The display prompt will show GUB when user bits are displayed. The ENTER and CLEAR keys are used in conjunction with the numeric keys to set the generator user bits, in date format.

  • Page 52: Daylight Saving Time Support

    Model 5010-GPS GPS Time Code Master Manual When you have selected the correct time zone offset, press the ENTER key to complete the data entry process. The numeric keys return to their normal functions when the data entry has been completed by pressing the ENTER key or canceled by pressing the CLEAR key.

  • Page 53: Setting The Beginning And End Of Daylight Saving Time

    Model 5010-GPS GPS Time Code Master Manual Let's say that DST ends at 2:00 am local time and DST is one hour ahead of normal time (you can program the DST end time using the DSTE register): DST end transition Local time DST or normal? Comments...

  • Page 54: Jam Syncing The Generator To The Reader

    Model 5010-GPS GPS Time Code Master Manual When the local time is later than the time in the DSTB register (standard time) on the Sunday set in the DSTBEG register and earlier than the time in the DSTE register (daylight time) on the Sunday set in the DSTEND register, the 5010-GPS will automatically add one additional hour to the time.
  • Page 55 Model 5010-GPS GPS Time Code Master Manual The generator time may be continuously slaved, or 'Jam synced' to data coming from the reader by pressing the SHIFT+JAM keys. The JAM LED will be on when Jam sync is enabled. Pressing the SHIFT+JAM keys again terminates the Jam sync mode.

  • Page 56: Selecting The Lines To Record Vitc On. (Model 5010-Gps Ii-Vitc Only)

    Model 5010-GPS GPS Time Code Master Manual In order to Jam sync the generator time to exactly to the reader time make sure the OFFSET is set 00:00:00:00 To access the OFFSET register press the SHIFT+DISPLAY buttons. The display prompt will be .

  • Page 57: Turning The Vitc Generator On (Model 5010-Gps Ii-Vitc Only)

    Model 5010-GPS GPS Time Code Master Manual In order to protect the VITC reading process against dropouts, the VITC is usually repeated on 2 non-adjacent lines in the vertical interval of the video signal, not earlier than line 10 (6 for PAL) or later than line 20 (21 for PAL). For certain recordings, the use of some of these lines may interfere with other signals inserted into the vertical interval.

  • Page 58: Selecting The Generator Colour Frame Mode

    Model 5010-GPS GPS Time Code Master Manual When the 5010-GPS II is operating in the GPS TIME DATE mode in the NTSC video standard, it will automatically switch to the Drop Frame mode so that it’s time base is as close as possible to real time. When the generator is operated in the continuous Jam Sync mode, the DROP FRAME generator drop frame mode is the same as the incoming Reader data.

  • Page 59: Generator Parity Mode Selection

    Model 5010-GPS GPS Time Code Master Manual When colour frame synchronization is desired, the sync to subcarrier (Sc-H) phase relationship of the video source must conform to PAL 8 field specification. Special precautions should be taken when operating in the Jam sync mode. When the colour frame mode is selected, and the code from the reader is not in colour frame mode, the generator will maintain a frame lock only in the jam sync mode.
  • Page 60 Model 5010-GPS GPS Time Code Master Manual large dropouts in the incoming code. The generated code will be continuous if the incoming code is also continuous. Select HOLD when you want the generator to stop when there is no incoming Reader code. When the reader code resumes, the generator will re-jam to the incoming code.

  • Page 61: Programming The Reader Setup Functions

    Model 5010-GPS GPS Time Code Master Manual 3.6. PROGRAMMING THE READER SETUP FUNCTIONS The READER drop down menu is used to program various reader modes such as selecting LTC or VITC operation for the reader, VITC Line numbers, whether user bits contain static numbers or time information, etc. Figure 3-7 shows the items on the READER drop down menu.

  • Page 62: Selecting The Format Of The Time And User Bit Data

    3.6.4. Selecting the VITC CRC (model 5010-GPS II-VITC only) The RDR VITC CRC menu item is used to select whether the VITC data RDR VITC CRC being read has a normal CRC or the special CRCs used by the Evertz NORMAL 4025 Film Footage Encoder.

  • Page 63: Controlling The Reader 'Look Ahead' Compensation

    Model 5010-GPS GPS Time Code Master Manual 3.6.5. Controlling the Reader ‘Look ahead’ Compensation The DISPLAY menu item is used to select whether the normal 'look ahead' DISPLAY compensation for reader dropouts is active or not. Normally, the data is PROCESSED read in one frame and displayed with an 'add 1 frame' compensation.

  • Page 64: Programming The Character Generator Functions

    Model 5010-GPS GPS Time Code Master Manual 3.7. PROGRAMMING THE CHARACTER GENERATOR FUNCTIONS CHAR SIZE TINY SMALL LARGE CHAR STYLE WHITE WHITE ON BLACK BLACK BLACK ON WHITE VCG FRAMES DISPLAY BLANK VCG FIELDS DISPLAY BLANK VCG SYMBOLS DISPLAY BLANK Figure 3-8: VCG Drop Down Menu The VCG drop down menu is used to select various characteristics of the VCG display.

  • Page 65: Selecting The Character Style

    Model 5010-GPS GPS Time Code Master Manual 3.7.2. Selecting the Character Style The CHAR STYLE menu item is used to select whether the CHAR STYLE background mask will be used and whether the characters will be white or WHITE black. The on screen format menus are always white characters keyed WHITE ON BLACK into a black background mask.

  • Page 66: Programming The Overall Configuration Functions

    Model 5010-GPS GPS Time Code Master Manual 3.8. PROGRAMMING THE OVERALL CONFIGURATION FUNCTIONS The CONFIGURATION drop down menu located on the Engineering Setup menu is used to select the video standard, set the mode and output level of the translator output, etc. The CONFIGURATION menu items are normally required only during installation.

  • Page 67: Figure 3-9: Configuration Drop Down Menu

    Model 5010-GPS GPS Time Code Master Manual CONFIGURATION VIDEO TYPE AUTO NTSC HORZ CHAR SIZE HORIZONTAL CHAR SIZE = 10 TO ADJUST DISPLAY LEVEL FRONT PANEL BRIGHTNESS = 2 TO ADJUST LTC OUT LEVEL LTC OUTPUT LEVEL = 35 TO ADJUST CONVERT WINDOW RATE CONVERT WINDOW = 07 FRMS...

  • Page 68: Selecting The Video Standard

    Model 5010-GPS GPS Time Code Master Manual 3.8.1. Selecting the Video Standard The VIDEO TYPE menu item is used to select the video standard of the VIDEO TYPE program video. Changing the video standard will affect the settings of the AUTO VITC LINE RANGE menu setting.

  • Page 69: Setting The Time Of The Event Registers

    Model 5010-GPS GPS Time Code Master Manual RDR TIME EVENT The output will activate when the reader time matches the REVT register and the event register is armed. See section 3.8.6 for information about setting the REVT register and arming it. 1 PULSE/SEC The output will activate at the beginning of each second of the generator time.

  • Page 70: Adjusting The General Purpose Output Duration

    Model 5010-GPS GPS Time Code Master Manual 3.8.7. Adjusting the General Purpose Output Duration GPO DURATION The GPO DURATION menu item on the CONFIGURATION Engineering GPO DURATION Setup menu is used to adjust the duration of the general purpose outputs. LENGTH = 01 FRMS Use the keys to change the duration...

  • Page 71: Viewing The Gps Receiver Status

    Model 5010-GPS GPS Time Code Master Manual GPS STS: NO FIX indicates no satellite position fixes yet indicates no usable satellites yet GPS STS: NO SATS 1 satellite vector fixed GPS STS: 1 SV FIX GPS STS: 2 SV FIX 2 satellite vectors fixed GPS STS: FIXING...

  • Page 72: Displaying The Receiver's Utc Time

    Model 5010-GPS GPS Time Code Master Manual 3.9.3. Displaying the Receiver’s UTC Time When the 5010-GPS II is receiving valid time information from the smart antenna, two additional front panel displays are available. To access them press the DISPLAY button one or more times until the desired message is visible.

  • Page 73: Entering The Time Zone Offset

    Model 5010-GPS GPS Time Code Master Manual Hold down the SHIFT key and press the DISPLAY button one or more times until the GPS@ prompt is shown at the left of the display. The ENTER and CLEAR keys are used in conjunction with the numeric keys to set the generator time.

  • Page 74: Setting The Format Of The Date Information In The User Bits

    Model 5010-GPS GPS Time Code Master Manual To enter the time zone offset you must enter valid information into the generator user bits. See section 3.5.6 for information on setting the time zone. Also see section 3.5.7 for information about adjusting for daylight savings time changes.

  • Page 75: General Purpose Outputs

    Model 5010-GPS GPS Time Code Master Manual When both the LTC RDR and VITC RDR inputs are the same, (either both grounded, or both open), the AUTO mode of the reader is selected. VCG ENABLE Provides an alternate method of turning the character inserter generator On and Off.
  • Page 76 Model 5010-GPS GPS Time Code Master Manual This page left intentionally blank OPERATING INSTRUCTIONS Page 3-43 Revision 1.2.3...
  • Page 77 Model 5010 GPS II GPS Time Code Master Manual TECHNICAL DESCRIPTION....................... 4-1 4.1. OVERVIEW..........................4-1 4.2. DIP SWITCH FUNCTIONS......................4-1 4.3. USER ADJUSTMENTS AND DIAGNOSTICS ................4-2 4.3.1. Front Panel Diagnostics ....................4-2 4.3.2. Calibrating the VITC Generator Keyer (Model 5010-GPS-VITC only) ......4-3 4.3.3.
  • Page 78 Model 5010 GPS II GPS Time Code Master Manual This page left intentionally blank Revision 1.2.3...

  • Page 79: Technical Description

    Model 5010 GPS II GPS Time Code Master Manual TECHNICAL DESCRIPTION 4.1. OVERVIEW The Model 5010-GPS II LTC/VITC Timecode Generator/Reader combines the latest LSI technology with sophisticated microcontroller firmware to provide a powerful, flexible time code reader system. The basic model 5010-GPS II is a dual standard (NTSC/PAL) combination generator, high speed reader for Linear Time Code (LTC), and contains a high resolution character inserter which can be delegated to either the generator or reader.

  • Page 80: User Adjustments And Diagnostics

    Model 5010 GPS II GPS Time Code Master Manual down on the right side. On the 7700STM main circuit card the switch is closed when it is pressed down closest to the circuit card. The functions of each switch are described below. Switch Name Normal...

  • Page 81: Calibrating The Vitc Generator Keyer (Model 5010-Gps-Vitc Only)

    Model 5010 GPS II GPS Time Code Master Manual Scan Code Scan Code VITC GEN DISPLAY ENTER CLEAR VCG MODE VCG ON/OFF FREEZE STATUS SHIFT SELECT SETUP Figure 4-2: Keyboard Scan Codes 4.3.2. Calibrating the VITC Generator Keyer (Model 5010-GPS-VITC only) To calibrate the VITC Generator’s video keyer, connect colour bars from your sync generator to the VITC Gen Video input the 5010-VITC and to...

  • Page 82: Calibrating The Colour Frame Detection Circuit

    Model 5010 GPS II GPS Time Code Master Manual 4.3.4. Calibrating the Colour Frame Detection Circuit Calibration of the colour frame detector is accomplished in software. Separate calibration values are maintained in the 5010-GPS’s nonvolatile memory for PAL and NTSC. The colour frame circuitry is calibrated at the factory and should not require any field calibration.

  • Page 83: Figure 4-3: Pal Colour Frame Calibration

    Model 5010 GPS II GPS Time Code Master Manual Channel A Col'r Frm Id from Sync Gen Channel B TPD7 from 5010 Figure 4-3: PAL Colour Frame Calibration Channel A Col'r Frm Id from Sync Gen Channel B TPD7 from 5010 Figure 4-4: NTSC Colour Frame Calibration Continue adjusting the NOVPOT value up until the pulse on channel B disappears.

  • Page 84: Updating To A New Firmware Version

    FLASH PROM. We will supply the software upgrade to you on floppy disk, or you may download the current version from our ftp site (http://www.evertz.com/ftp). This device may be reprogrammed by downloading the new firmware to the 5010-GPS II using a computer.

  • Page 85: Figure 4-6: Jumper Positions For Programming Mode On Rev J 5200 Boards

    Model 5010 GPS II GPS Time Code Master Manual GPS I GPS II JP12 UART P12V RS232 RS422 Figure 4-6: Jumper Positions For Programming Mode On Rev J 5200 Boards. You will have to make the following cable in order to connect your 5010- GPS II to the computer.

  • Page 86: Figure 4-7: Jumper Positions For Normal Operating Mode On Rev H 5200 Boards

    Model 5010 GPS II GPS Time Code Master Manual JP12 UART P12V RS232 RS422 Figure 4-7: Jumper Positions For Normal Operating Mode On Rev H 5200 Boards. GPS I GPS II JP12 UART P12V RS232 RS422 Figure 4-8: Jumper Positions For Normal Operating Mode On Rev J 5200 Boards.

  • Page 87: Upgrading The Firmware

    Model 5010 GPS II GPS Time Code Master Manual Figure 4-9: Jumper Positions For Programming Mode On 7700STM Boards. You can use a straight thru PC 9 pin cable serial extension cable or make the following cable in order to connect your 5010-GPS II to the computer. 5010-GPS II New Version Computer End...
  • Page 88 Model 5010 GPS II GPS Time Code Master Manual two serial communications ports (known as COM1 and COM2). If you have both serial ports available, connect the 5010-GPS II to COM1. If you received the firmware update on floppy disk, insert the reprogramming diskette in the drive of the computer.
  • Page 89 Model 5010 GPS II GPS Time Code Master Manual If you set up the 5010-GPS II for programming at 9600 baud you will need to use additional command line parameter to specify the baud rate as follows: FL AG57A9.HEX /b9600 Entering the FL with no file name will generate a usage message to show you all the available options for the Flash Loader program.

  • Page 90: Time Zone Offsets

    Model 5010-GPS II GPS Time Code Master Manual TIME ZONE OFFSETS........................A-1 Tables Table A-1: Whole Hour Time Zone Offsets..................A-1 Table A-2: Partial Hour Time Zone Offsets..................A-2 Revision 1.2.3...
  • Page 91 Model 5010-GPS II GPS Time Code Master Manual This page left intentionally blank Revision 1.2.3...

  • Page 92: Table A-1: Whole Hour Time Zone Offsets

    Model 5010-GPS II GPS Time Code Master Manual TIME ZONE OFFSETS The following table shows the time zone offset condes that will be encoded into the user bits in one of the time/date modes. It shows typical places where this time zone offset is in effect for both standard and daylight time.

  • Page 93: Table A-2: Partial Hour Time Zone Offsets

    Model 5010-GPS II GPS Time Code Master Manual Offset Standard Time Daylight Saving time Code Hours UTC-00:30 UTC-01:30 UTC-02:30 Newfoundland UTC-03:30 Newfoundland UTC-04:30 UTC-05:30 UTC-06:30 UTC-07:30 UTC-08:30 UTC-09:30 Marquesa Island UTC-10:30 UTC-11:30 UTC+11:30 Norfolk Island UTC+10:30 Lord Howe Island UTC+09:30 Darwin UTC+08:30 UTC+07:30...

This manual is also suitable for:
