Zero-Degree Reflection And Transmission Fixture (Ø1" And Ø1/2" Optics) - THORLABS Chromatis User Manual

Chromatis™ Dispersion Measurement System
Warning:
When changing out fixtures, ensure that the instrument On/Off switch is in the OFF position to
disable laser light from the aperture.
4.1.1 Zero-Degree Reflection and Transmission Fixture (Ø1" and Ø1/2" Optics)
Transmission
Optic Under Test
Goes Here

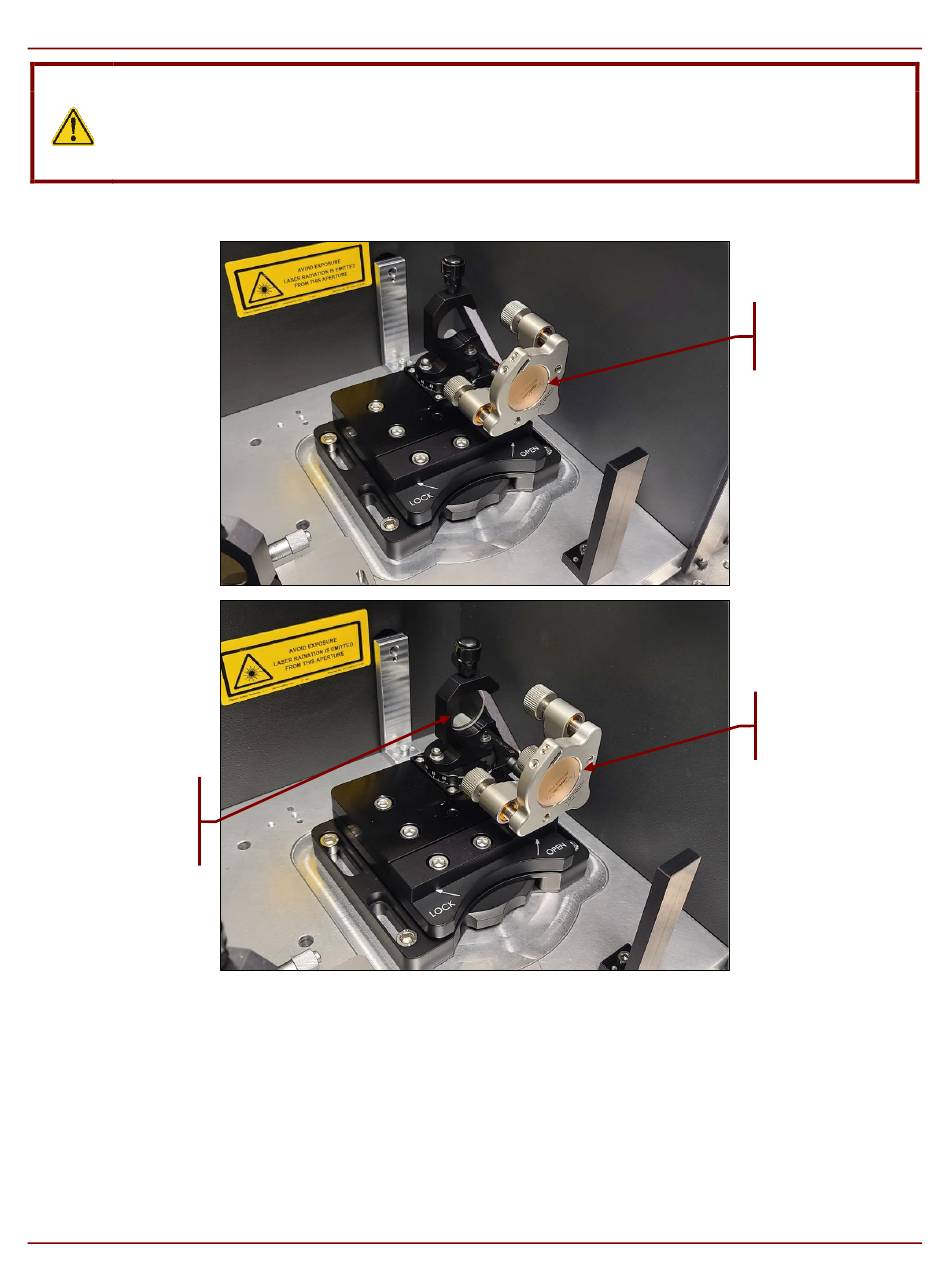

Figure 8 Fixture designed for measurement of either a reflective optic at 0° angle of incidence (top
picture), or a transmissive optic at 0° - 70° angle of incidence (bottom picture).
Rev. A, September 27, 2022
Chapter 4: Measurement
Optic Under
Test
System
Optic
Page 9
