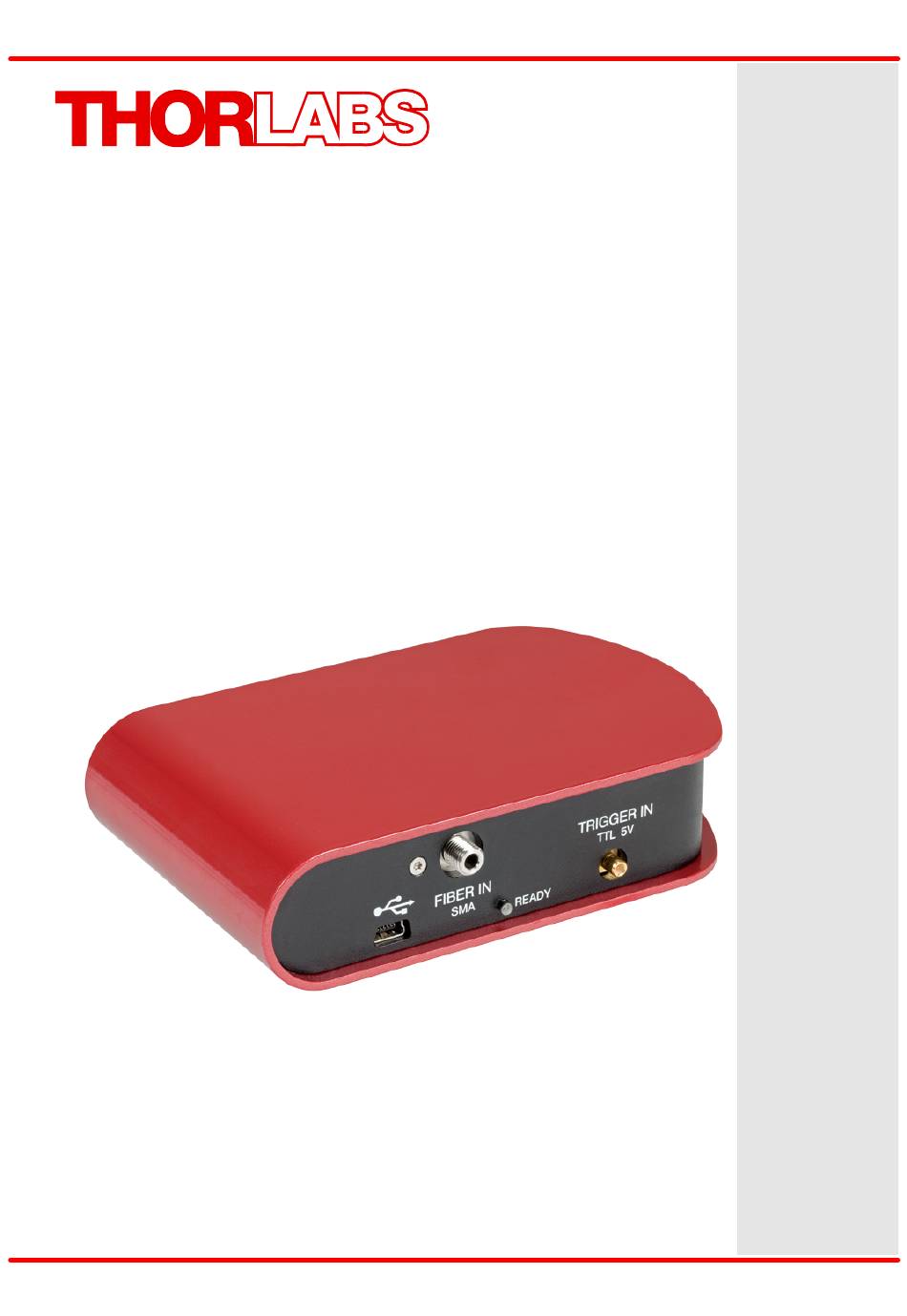

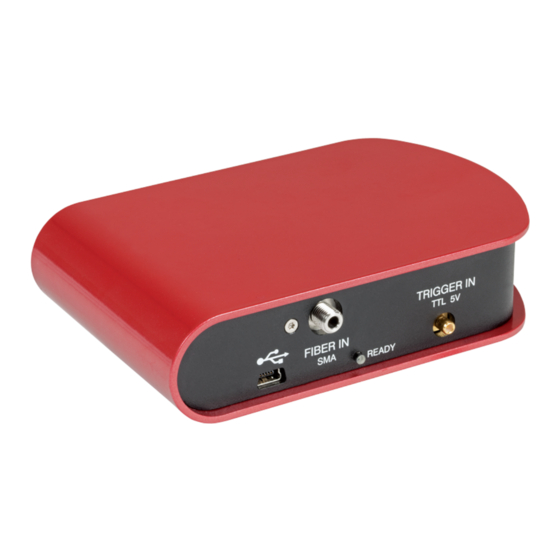

  • Page 1 Spectrometer CCS Series Spectrometer Quick Start Manual 2018...
  • Page 2 Version: Date: 09-Jul-2018 Item No.: M0009-510-422 Copyright © 2018 Thorlabs...

  • Page 3: Table Of Contents

    1.2 Ordering Codes and Accessories 1.3 Requirements 2 Installation 2.1 Parts List 2.2 Installing Software 3 Getting Started 4 Appendix 4.1 Certifications and Compliances 4.2 Warranty 4.3 Copyright and Exclusion of Reliability 4.4 Thorlabs 'End of Life' Policy (WEEE) 4.5 Thorlabs Worldwide Contacts...

  • Page 4: Foreword

    Paragraphs preceded by this symbol explain hazards that could damage the instrument and the connected equipment or may cause loss of data. Note This manual also contains "NOTES" and "HINTS" written in this form. Please read these advices carefully! © 2018 Thorlabs...

  • Page 5: General Information

    Do not connect the CCS Series Spectrometer to a PC prior to installingh the OSA-SW Application! The installation package includes CCS Series Spectrometer specific drivers and software that must be installed before the CCS Series Spectrometer is connected to the PC for the first time.
  • Page 6 Thorlabs is not responsible for any radio television interference caused by modifications of this equipment or the substitution or attachment of connecting cables and equipment other than those specified by Thorlabs. The correction of interference caused by such unauthorized modification, substitution or attachment will be the responsibility of the user.

  • Page 7: Ordering Codes And Accessories

    Make sure to use your CCS spectrometer only with the included fiber (see above table). If using a different fiber, the Amplitude Correction Calibration will be affected! 1.3 Requirements These are the requirements to the PC intended to be used for remote operation of the CCS Series Spectrometer. Minimum Hardware and Software Requirements •...

  • Page 8: Installation

    Do not connect the CCS Series Spectrometer to a PC prior to install the OSA-SW Application! The installation package includes CCS Series Spectrometer specific drivers and software that must be installed before the CCS Series Spectrometer is connected to the PC for the first time. 2.1 Parts List Inspect the shipping container for damage.

  • Page 9: Installing Software

    2 Installation 2.2 Installing Software Before installing OSA Software, please make sure that no CCS Series Spectrometer is connected. After you insert the OSA Software installation CD an autorun menu will appear (see figure below). If autorun is disabled on your system, you will have to browse the installation CD and "[CD-Drive]:\Autorun\Autorun.exe":...
  • Page 10 CCS Series Spectrometer Click "Install" to continue. The necessary software components are being installed, followed by installation of device driver software. The installation of all components is described below. NI VISA installation Click "I accept...", then "Next>>" to continue: © 2018 Thorlabs...
  • Page 11 2 Installation After NI-VISA Installation, the computer must be restarted. After reboot, the setup wizard restarts automatically and continues to install further software components: © 2018 Thorlabs...
  • Page 12 CCS Series Spectrometer Click "I accept...", then "Next>>" to continue: © 2018 Thorlabs...
  • Page 13 Depending on the set up security level, the Installation Wizard might ask to allow to install the driver software: To finalize the OSA Software installation, the computer must be restarted. Click "Finish" to restart and complete installation. © 2018 Thorlabs...

  • Page 14: Getting Started

    3 Getting Started Attention Do not connect the CCS Series Spectrometer to a PC prior to installing the OSA-SW Application! The installation package includes CCS Series Spectrometer specific drivers and software that must be installed before the CCS Series Spectrometer is connected the first time to the PC.
  • Page 15 This ensures best measurement results. Please see details about the OSA software features, handling and CCS Series Spectrometer settings in the advanced user manual, provided with the data carrier. After the software has been installed, it can be found as well in the folder "All Programs - Thorlabs - Thorlabs OSA - CCS".

  • Page 16: Appendix

    CCS Series Spectrometer 4 Appendix 4.1 Certifications and Compliances © 2018 Thorlabs...

  • Page 17: Warranty

    For warranty repairs or service the unit must be sent back to Thorlabs. The customer will carry the shipping costs to Thorlabs, in case of warranty repairs Thorlabs will carry the shipping costs back to the customer.

  • Page 18: Copyright And Exclusion Of Reliability

    Thorlabs dealer or system installer. All rights reserved. This document may not be reproduced, transmitted or translated to another language, either as a whole or in parts, without the prior written permission of Thorlabs. Copyright © Thorlabs 2018. All rights reserved.

  • Page 19: Thorlabs 'End Of Life' Policy (Weee)

    Waste treatment on your own responsibility If you do not return an “end of life” unit to Thorlabs, you must hand it to a company specialized in waste recovery. Do not dispose of the unit in a litter bin or at a public waste disposal site.

  • Page 20: Thorlabs Worldwide Contacts

    Email: europe@thorlabs.com Email: scandinavia@thorlabs.com France Brazil Thorlabs SAS Thorlabs Vendas de Fotônicos Ltda. 109, rue des Côtes Rua Riachuelo, 171 78600 Maisons-Laffitte São Carlos, SP 13560-110 France Brazil Tel: +33-970 444 844 Tel: +55-16-3413 7062 Fax: +33-825 744 800 Fax: +55-16-3413 7064 www.thorlabs.com...
  • Page 21 4 Appendix Index absorbance Amplitude Correction Installation Getting Started Parts List Software Installation Requirements Scan USB transmittance © 2018 Thorlabs...
