FORENO FSHR1 Quick Start Manual

High Rise Shower Rose
FSHR1
9 421027 591370
Congratulations on your purchase of this high quality product from Foreno Tapware.
Please read the following before installation and retain (along with your receipt) for future reference.

TECHNICAL SPECIFICATIONS

Suitable for Mains Pressure only
Minimum Pressure = 150kPa
Maximum operating Pressure = 500kPa
Maximum operating Temperature = 65 deg. Celsius
For domestic use only.

CONFIGURATION

Mains Pressure systems Install as supplied.
Unequal Low Systems Remove the restrictor from the rose and replace with the rubber washer supplied.
Equal Low systems

INSTALLATION

For pressures exceeding 500kPa install a pressure reducing valve. Failure to do so may void the warranty.
• Screw the shower arm to the wall connection and tighten using the grub screws at the bottom of the brackets
• Turns on water supply
• Check for leaks

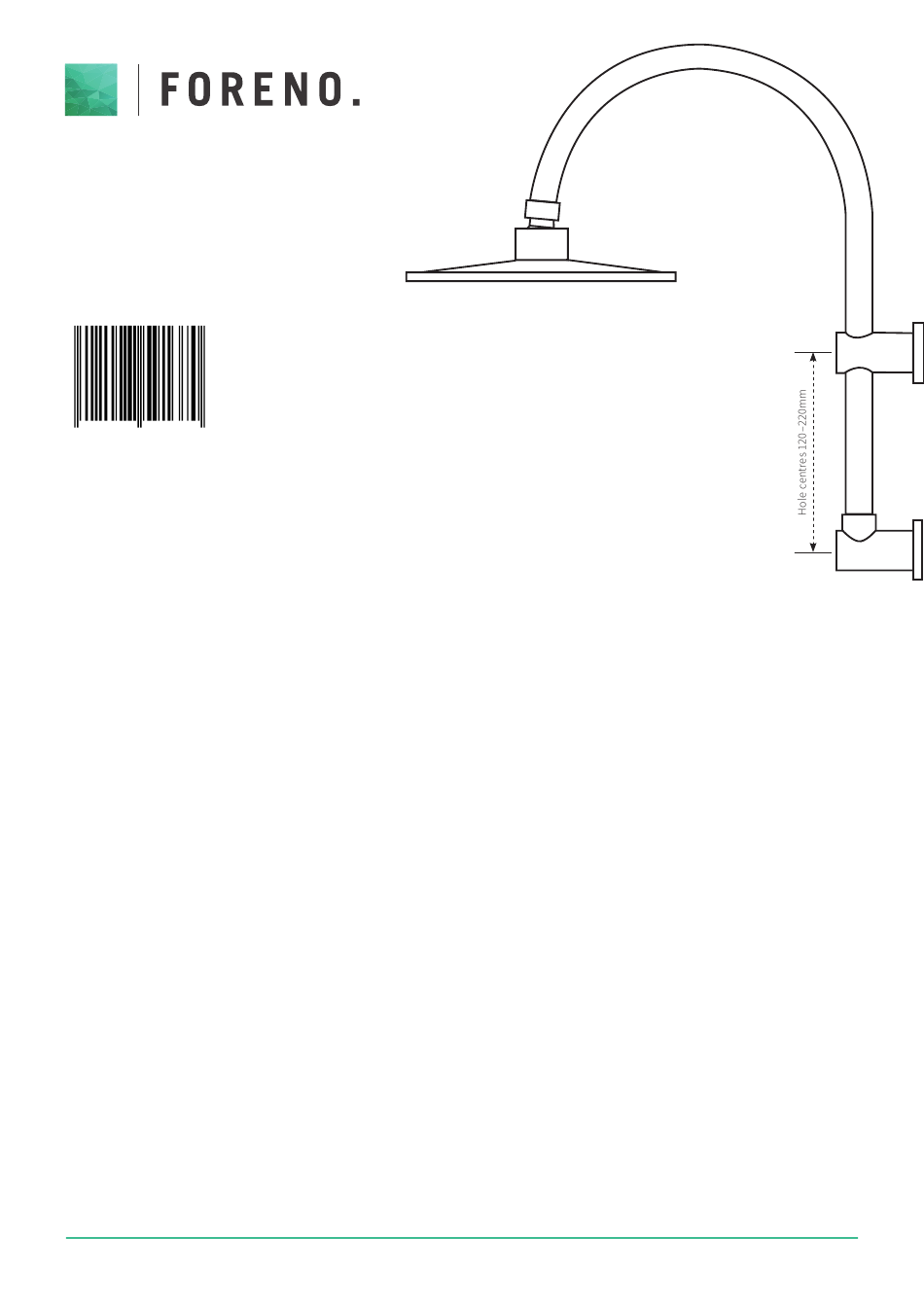

Important: The minimum distance from the centre of both wall brackets should be no less than 120mm
and no greater than 220mm.
FORENO TAPWARE (NZ) LTD | Freephone: 0508 FORENO | info@foreno.co.nz | 5 Hewlett Street, Port Whangarei 0110 | FORENO.CO.NZ
Remove the restrictor from the rose and replace with the rubber washer supplied.
