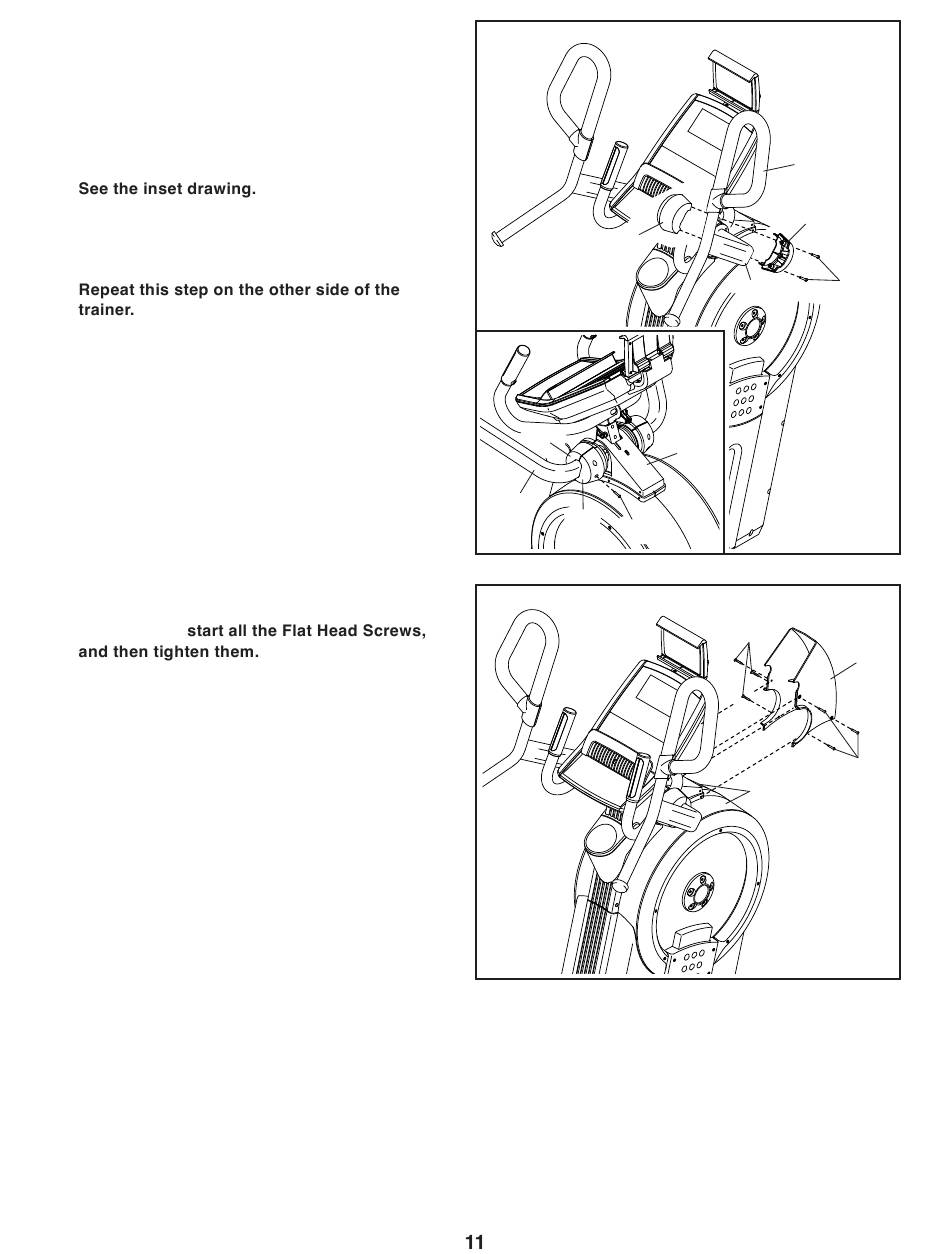

10. Identify the Rear and Front Pivot Covers
(65, 66).
Press a set of Rear and Front Pivot Covers (65,
66) together around the Right Handlebar (10)
near the bend (A). Then, attach them to each
other with two M4 x 22mm Screws (107).
Pivot Covers (65, 66) toward the Shield Cover
(12). Attach the Front Pivot Cover to the Right
Handlebar (10) with an M4 x 22mm Screw (107).
11. Attach the Front Cover (52) to the Left and Right
Shields (50, 51) with six M4 x 16mm Flat Head
Screws (101);
Slide the Rear and Front
10
65
65
10
66
107
11
10
66
107
A
12
101
101
50, 51
52
