Assembly — Attaching the Fan Blades
1
Attaching the blades to the blade
arms

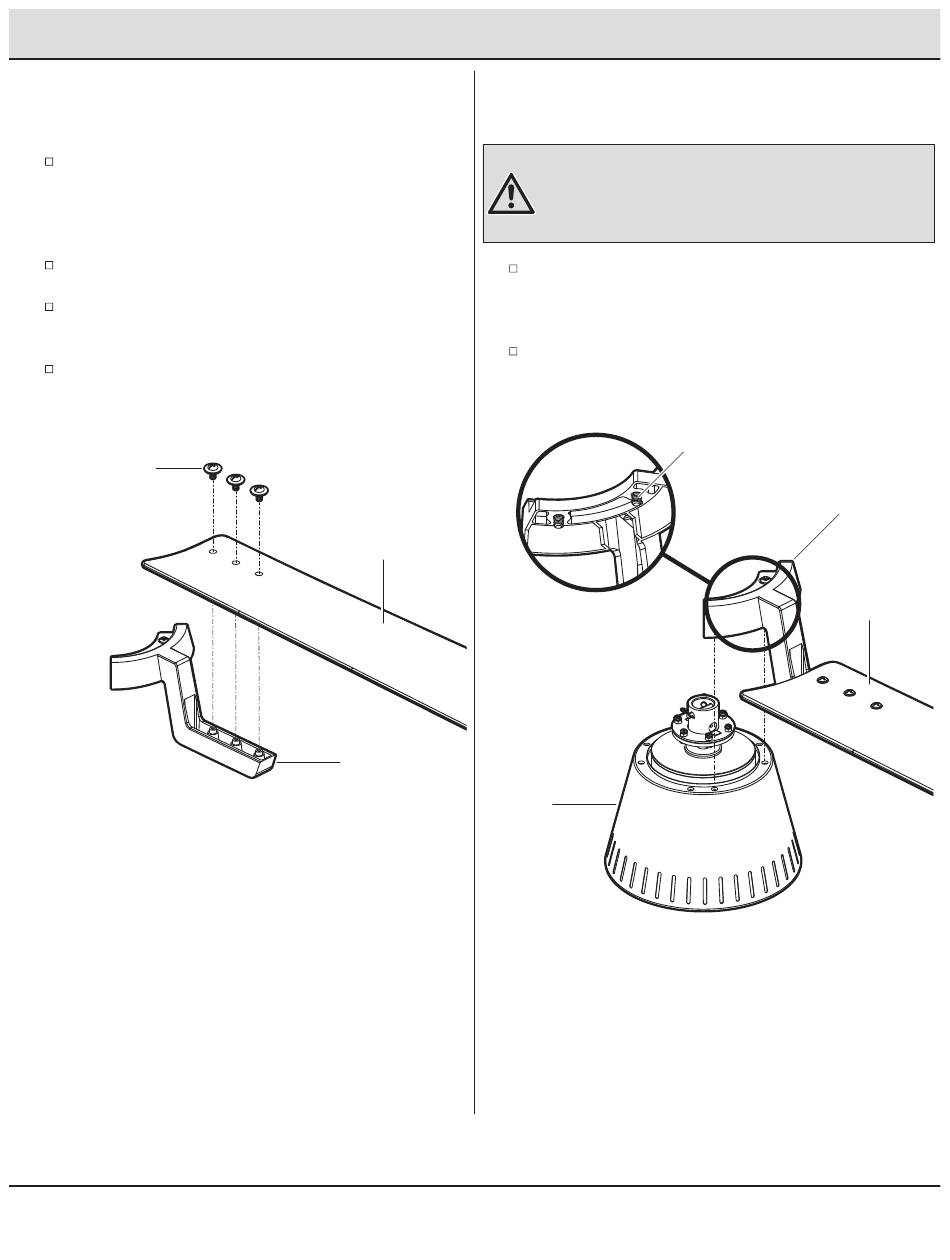

Attach the blades (G) to the blade arms (H) using the three
blade attachment screws and rubber washers (BB). Insert a
blade attachment screw and rubber washer (BB) into the
blade arm (H), but do not tighten.
Repeat for the two remaining screws and rubber washers (BB).
Tighten each screw securely starting with the center screw.
Make sure the blade (G) is straight.
Repeat these steps for the remaining blades.
BB
2
G
H
7
Fastening the blade assemblies to the
motor
WARNING: To reduce the risk of personal injury, do not bend
the blade arms (H) while installing, balancing the blades (G),
or cleaning the fan. Do not insert foreign objects between
rotating fan blades (G).
Fasten the blade assemblies to the fan motor assembly (F),
tighten the two blade arm screws with lock washers (FF)
already installed in the blade arms (H).
Repeat this procedure for the remaining blade arms (H).
FF
F
