Operation - multicomp pro MP710995 User Manual

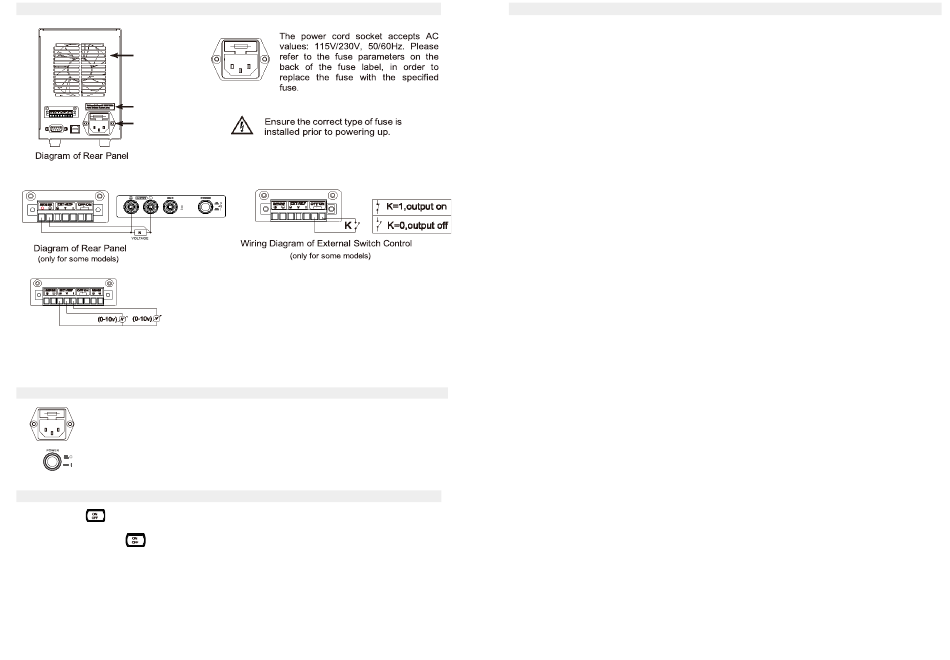

Rear Panel and Interfaces of Machine and Control Terminal
Fan
Label for voltage
and fuse
Power Socket
Wiring Diagram of Analogue
Interface
(only for some models)

OPERATION

Connect the AC power cord and select the corresponding AC voltage according
to the back label, the connect the AC power cord to the socket on the back panel.
press the power switch to turn the power on. The display initializes
showing the model of the machine and the setting level which is recalled
from the last use.
Press the power switch again to turn the power
Output Control and Output Shutdown Memory of Power Supply
• Press Output will be turned on, the positive and negative terminals will output
according voltage and the output indicator light will be lit ON.
• Press and hold for one second,
time, the machine will memorize the output status before shutting
will be exactly what the power supply is set to when you power ON next time.
Note: If there are any of the following conditions,
• OVP turns on and then there is unusual voltage on the input terminal which is
more than the setting voltage.
• OCP turns on and then there is unusual current on the output terminal which is
more than the setting current.
• Recalling other setups from the memory.
off.
and then the output indicator will be lit ON. At this
down, and the last status
the output will automatically turn off:
4
Remote Control Syntax V4.0
MP710995 MP711005, MP711008 and MP711009
Command format: VSET<X>:<NR2>
1. VSET: Command header
2. X: output channel
3. separator
4. NR2: parameter
Command Details:
1. ISET<X>:<NR2>
Description: Sets the output current.
ISET1:2.225
Example:
Sets the CH1 output current to 2.225A
2. ISET<X>?
Description: Returns the output current
Example: ISET1?
1
Returns the CH output current setting
3. VSET<X>:<NR2>
Description: Sets the output voltage.
VSET1:20.50
Example:
Sets the CH1 voltage to 20.50V
4. VSET<X>?
Description: Returns the output voltage setting.
Example: VSET1?
Returns the CH1 voltage setting.
5. IOUT<X>?
Description: Returns the actual output current.
IOUT1?
Example:
1
Returns the CH output current
6. VOUT<X>?
Description: Returns the actual output voltage.
VOUT1?
Example:
Returns the CH 1 output voltage
7. BEEP<Boolean>
Description: Turns on or off the beep.
Example: BEEP1 Turns on the beep.
8. OUT<Boolean>
Description: Turns on off the output.
Boolean: 0 OFF, 1 ON
OUT1
Example: Turns on the output
9. STATUS?
Description: Reads the status of the power supply.
Contents: 8 bits in the following formats:
Series
setting.
Boolean: boolean logic.
9
