Specialists in fireplace design and manufacture
INSTALLATION & OPERATING INSTRUCTIONS
INSTALLER, PLEASE LEAVE THESE INSTRUCTIONS WITH THE UNIT ON COMPLETION.
10 YEAR FIREBOX WARRANTY
The firebox is covered by a 10 year warranty.
Other parts are covered by a one year limited warranty.
Head Office – 13 French Avenue, Brendale, Queensland 4500
Telephone – PH: (07) 3490 5500
Facsimile – FAX: (07) 3490 5520
Website: -
Business hours: - Monday to Thursday 7:30am-4:00pm. Friday 7:30am-2:00pm
Email: -

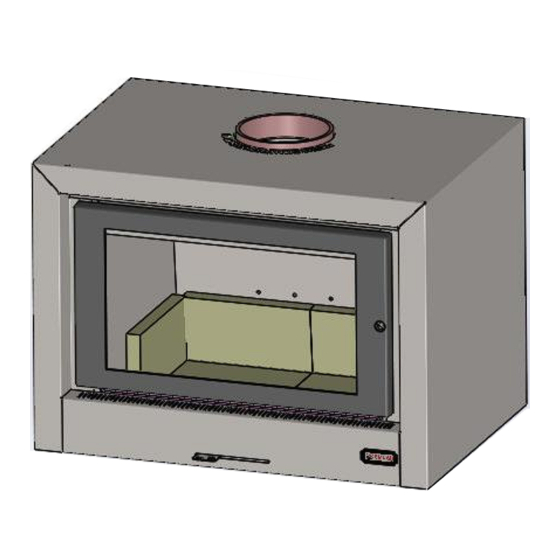

KEMLAN CUBE
IMPORTANT:
www.jetmaster.com.au
sales@jetmaster.com.au
Advertisement
Related Manuals for Kemlan CUBE
Summary of Contents for Kemlan CUBE
- Page 1 Specialists in fireplace design and manufacture KEMLAN CUBE INSTALLATION & OPERATING INSTRUCTIONS IMPORTANT: INSTALLER, PLEASE LEAVE THESE INSTRUCTIONS WITH THE UNIT ON COMPLETION. 10 YEAR FIREBOX WARRANTY The firebox is covered by a 10 year warranty. Other parts are covered by a one year limited warranty.
- Page 2 DIMENSIONS KEMLAN CUBE MEASUREMENT 353.5 06/06/2023 Ver.20...
- Page 3 MINIMUM CLEARANCES FOR THE KEMLAN CUBE INSTALLED WITH DEFAULT FLUE KIT MINIMUM CLEARANCES: MEASUREMENT 1004 1114 STEEL BENCH MEASUREMENTS: 1007 TOP VIEW FRONT VIEW 06/06/2023 Ver.20...
- Page 4 HEARTH MEASUREMENT Cube UNIT HEIGHT ABOVE FLOOR 300 MIN. HEARTH DIMENSION FORWARD OF UNIT 06/06/2023 Ver.20...
- Page 5 AIR GAP DETAIL NOTE:- When installing this unit onto a table, make sure to leave the 4x bolts in place. The bolts are necessary to allow air flow to the underside of the firebox. The removal of these bolts will lead to overheating to the underside of the unit and eventually cause malfunction.
- Page 6 AIR GAP DETAIL Air gap Table There must be an air gap between the bottom of the appliance and the top of a table. This is necessary to allow air flow to the appliance. Meridian base The bolts will need to be removed when the appliance is installed onto a meridian base.
-
Page 7: Installation Instruction
INSTALLATION INSTRUCTION KEMLAN CUBE FLAT CEILING INSTALLATION Run a bead of silicone down the vertical seam of the outer casing to the flashing Pop rivet or Bracing supplied by installer Short tube fits into flue screw brackets to pipe. All flues should... - Page 8 INSTALLATION INSTRUCTION KEMLAN CUBE RAKED CEILING INSTALLATION Run a bead of silicone down Short tube fits into flue the vertical seam of the outer pipe. All flues should casing to the flashing Pop rivet or be trimmed level screw brackets to...
- Page 9 SUPER NOVA / CUBE /TEMPO GRAND BAFFLE PLATE INSTALLATON INSTRUCTIONS 2. CERAMIC BAFFLE PLATES SIZE 1. MAKE SURE TO INSTALL AIR TUBE AS 230mmX240mm. INSTALL THE BAFFLE REQUIRED. THE OPENING ON THE TUBE PLATE 230mm FRONT TO BACK, 240mm END NEEDS TO BE AGAINST THE BACK SIDE TO SIDE.
- Page 10 06/06/2023 Ver.20...
- Page 11 06/06/2023 Ver.20...
- Page 12 06/06/2023 Ver.20...
-
Page 13: Installation Instructions
INSTALLATION INSTRUCTIONS MINIMUM HEIGHT OF FLUE SYSTEM EXIT INSTALLATION TO COMPLY WITH AS/NZS 2918 ANY NEARBY STRUCTURE 3000 MORE THAN 6000 3000 OR LESS 3000 INCREASE AS NECESSARY UNTIL 1000 MIN IF CLEAR WITHIN NOTHING WITHIN 6000 OF THE FLUE 3000 OF TOP OF FLUE 3000 OR LESS... - Page 14 06/06/2023 Ver.20...
-
Page 15: This Warranty Does Not Cover
CLAIMS – 5.1 (I) Kemlan will provide a full replacement of the heater in the first five years after installation. (ii) Replacement in the subsequent five years (i.e. sixth to tenth year after installation will be on the following basis.
