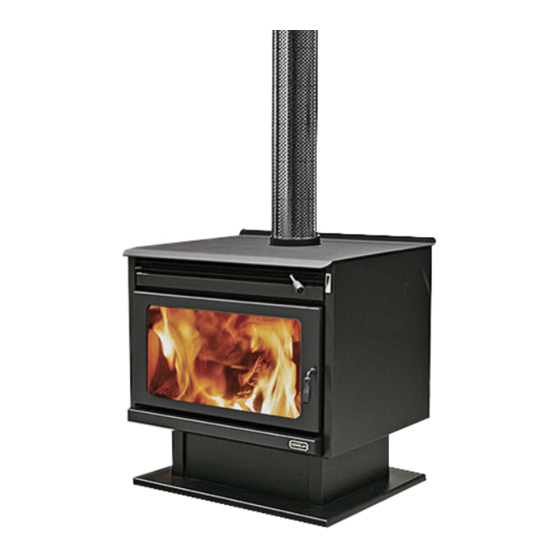

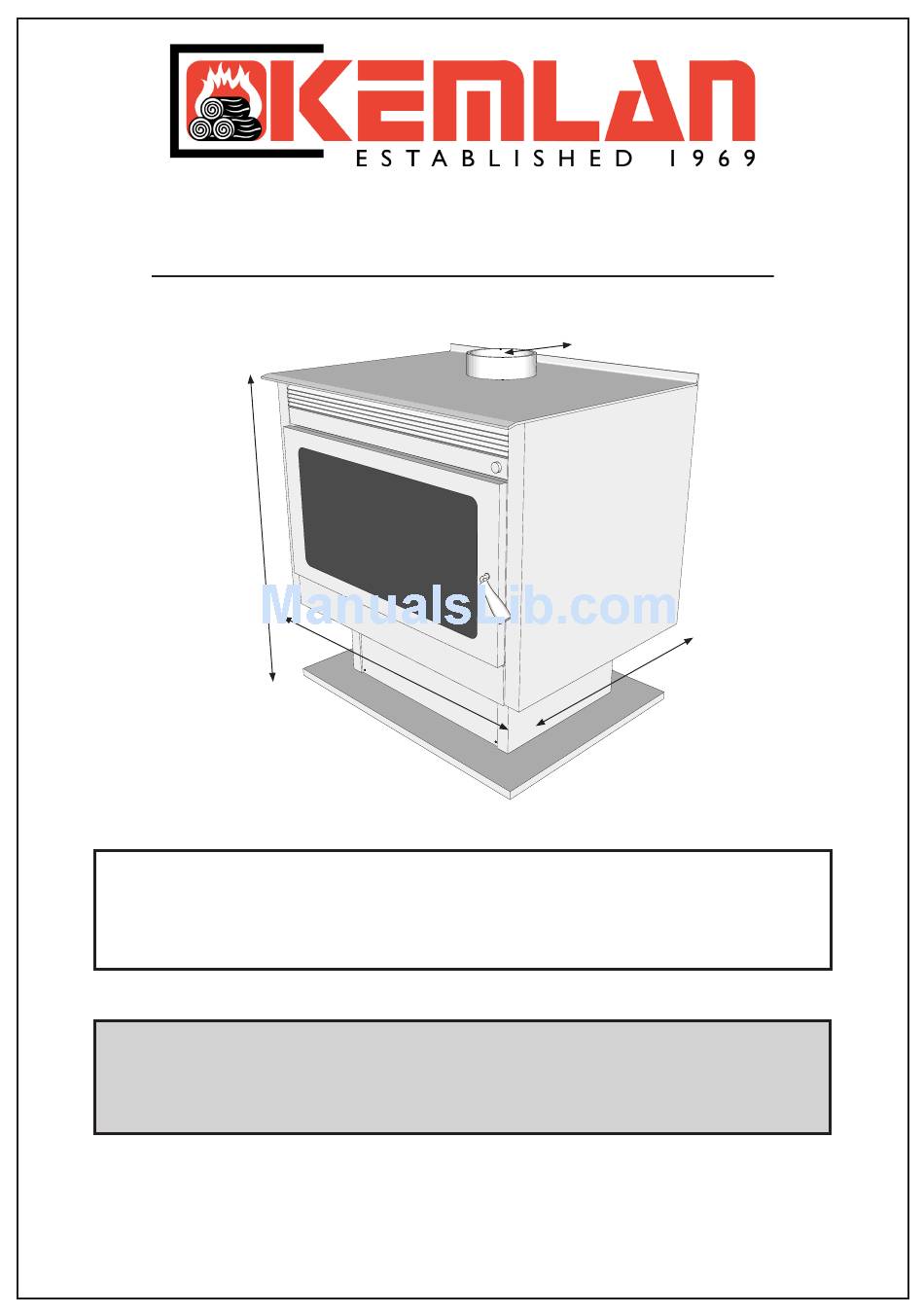

KEMLAN XL FREESTANDING
INSTALLATION & OPERATING INSTRUCTIONS
B
OVERALL DIMENSIONS:
A - 785mm width
B - 838mm height
C - 603mm depth
D - 216mm depth (centre of flue to back)
IMPORTANT:
INSTALLER PLEASE LEAVE THESE INSTRUCTIONS WITH THE UNIT ON COMPLETION.
1x900mm LENGTH HEATSHIELD OR DECROSHIELD MUST BE FITTED TO THE FLUE TO
ACHIEVE CLEARANCES TO HEAT SENSITIVE MATERIALS.
10 YEAR FIREBOX WARRANTY
The firebox is covered by a 10 year warranty.
Other parts are covered by one year limited warranty
Head Office
Telephone
Facsimile
Website
Business hours
Email:
A
-
13 French Avenue, Brendale, Queensland 4500
-
(07) 3263 8448
-
(07) 3263 6452
-
www.kemlan.com
-
Monday to Thursday 7:30am - 4:00pm. Friday 7:30am - 2:00pm
-
sales@kemlan.com.au
D
C
Advertisement
Table of Contents
Related Manuals for Kemlan XL
Summary of Contents for Kemlan XL
- Page 1 & m a n u f a c t u r e KEMLAN XL FREESTANDING INSTALLATION &...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS MINIMUM CLEARANCES FOR THE KEMLAN XL SOLID FUEL APPLIANCE INSTALLED WITH A DEFAULT FLUE KIT STANDARD INSTALLATION CORNER INSTALLATION A - 100mm D - 3200mm G - 1200mm NOTE: B - 550mm E - 945mm H - 1060mm The floor protector consists of a 12mm thick cement fibre sheet which has a thermal resistance of 0.8²... -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS TRIPLE FLUE KIT INSTALLATION TO COMPLY WITH AS/NZS 2918 Stainless steel double cone cowl Support outer flue with bracket supplied 1000mm minimum distance above roof line Roof flashing supplied Trim line by contractor 6” 8” 10” Pop rivet or screw brackets to Support outer flue the outside of the... - Page 4 INSTALLATION INSTRUCTIONS TRIPLE FLUE KIT INSTALLATION TO COMPLY WITH AS/NZS 2918 Stainless steel double cone cowl 1000mm minimum distance above roof line Trim line 6” 8” 10” Pop rivet or Support outer flue screw brackets to with bracket supplied the outside of the outer casing Short tube fits into flue Roof flashing supplied...
-
Page 5: Fan Operation
INSTALLATION INSTRUCTIONS MINIMUM HEIGHT OF FLUE SYSTEM EXIT INSTALLATION TO COMPLY WITH AS/NZS 2918 Any nearby structure 3000 or less 3000 More than 3000 600 min 3000 Increase as necessary until 1000 min if clear within nothing within 3000 of flue top 3000 of top of flue 3000 or less More than 3000... - Page 6 CERTIFICATE GOES HERE...
- Page 7 ABOUT CURING Your stove has been painted with the highest quality silicone stove paint and has special break-in procedures to cure it with heat and make it hard. VENTILATE WELL Ventilate the house during the first three times the stove is used. The paint on the stove will give off smoke heavy with carbon dioxide and has an odor.
- Page 8 INSTRUCTIONS FOR OPERATING YOUR KEMLAN SLOW COMBUSTION WOOD BURNING HEATER Open the air inlet fully by sliding the air inlet control to high. Crumple at least three double pages of newspaper into loose balls and place them into the centre of the firebox.
-
Page 9: Operating Hints
OPERATING HINTS To get the best from your Kemlan heater it is essential that you use good firewood, and use it correctly May people do not understand the principle of using a wood burning appliance and we suggest that it will be worth your while to study the following extract from a well known American publication. -
Page 10: This Warranty Does Not Cover
WARRANTY Kemlan wood heaters carry a warranty on the 6mm firebox for a period of ten (10) years. This warranty also covers other components of the heater for a period of one (1) year. These components include the baffle plate, handle assembly and fan.
