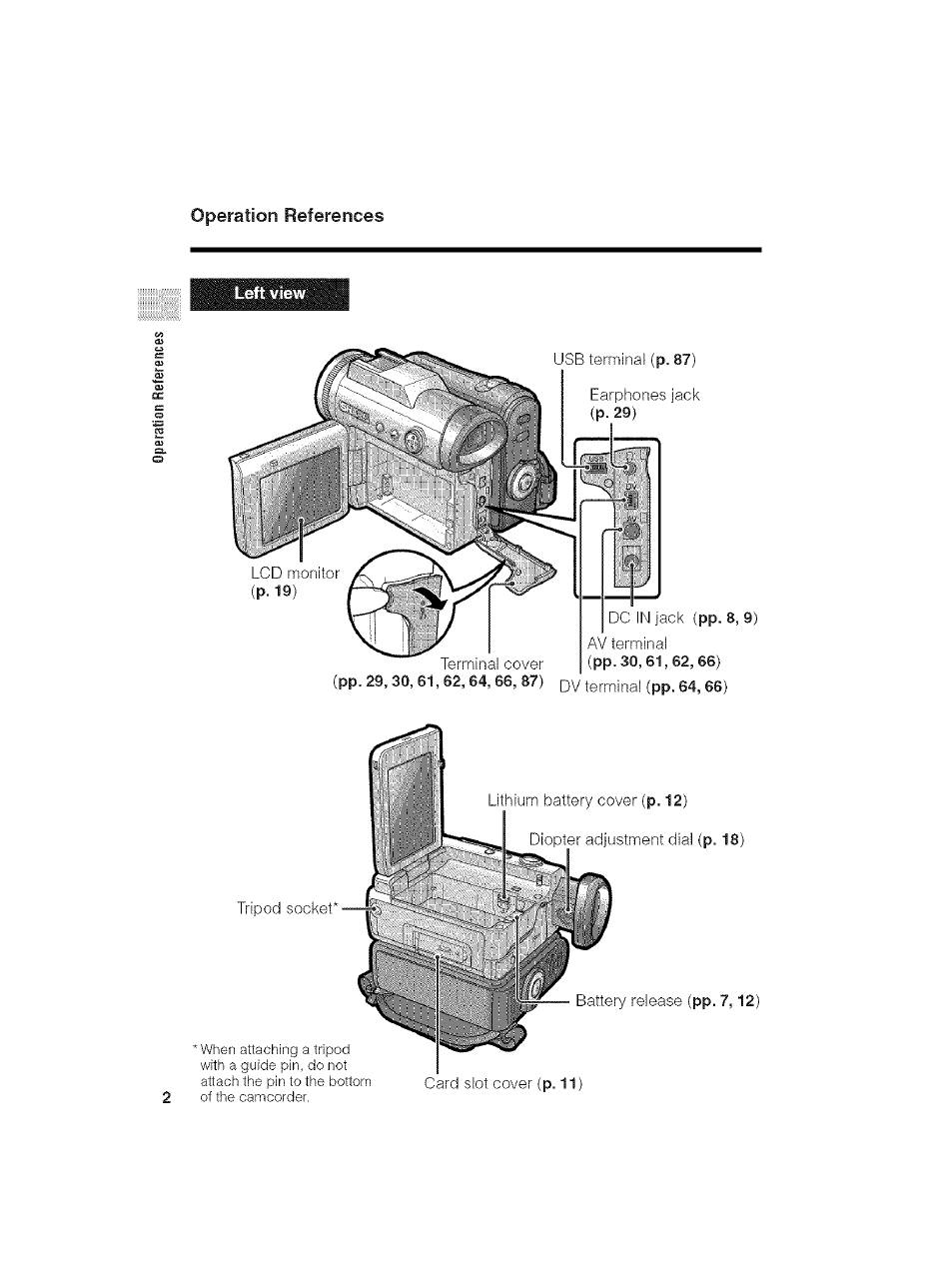

Operation References
ii!i!i!i!i!i!i!i!i!i!i!i!ii!i!!!iiiiii!i!iiiiiiiiiiiii!i!i!i!ii
o.}
£=
USB terminal (p. 87)
Earphones jack
(p. 29)
LCD monitor
(p, 19)
DO IN jack (pp. 8, 9)
AV terminal
Terminal cover (pp. 30, 61,62, 66)
(pp. 29, 30, 61,62, 64, 66, 87) DV terminal (pp. 64, 66)
Lithium battery cover (p. 12)
Diopter adjustment dial (p. 18)
Tri_
Battery release (pp. 7, 12)
*When attaching a tripod
with a guide pin, do not
attach the pin to the bottom
of the camcorder.
Card slot cover (p. 11)
