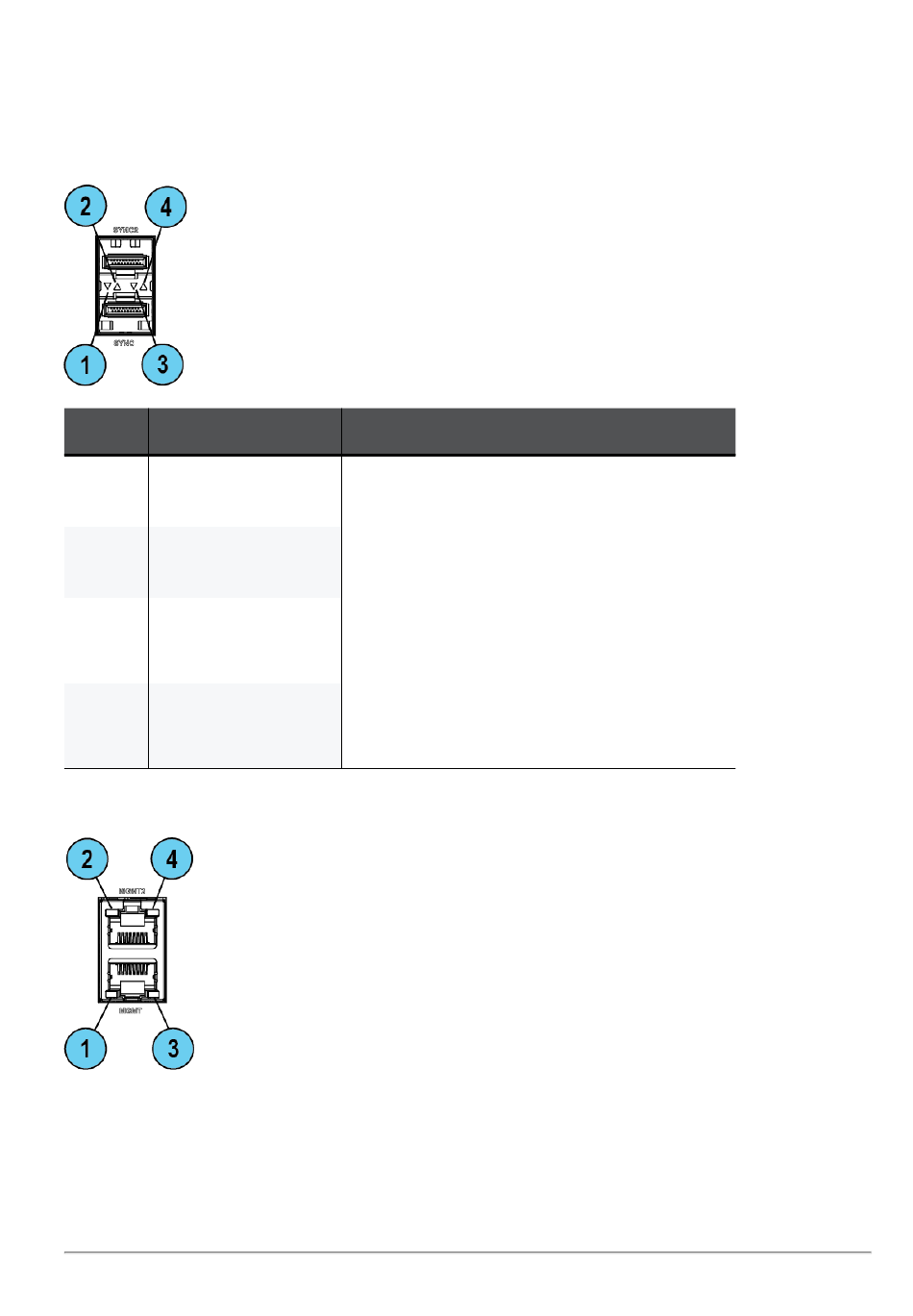

Front Panel LEDs
Synchronization Port LEDs
Item
Component
1
Port activity LED
(bottom port SYNC)
2
Port activity LED
(top port SYNC2)
3
Link Speed LED
(bottom port SYNC)
4
Link Speed LED
(top port SYNC2)
Management Port LEDs
Description
n
Off - No activity
n
On (Green) - Link exists
n
Blinking (Green) - Activity
n
Off - 1 Gbit/s or lower data rate is
selected
n
On (Amber) - 10 Gbit/s data rate is
selected
n
On (Blue) - 25 Gbit/s data rate is
selected
Quantum Force 19000 and 29000 Appliances Getting Started Guide | 47
