StarTech.com 5G7AINDRM-USB-A-HUB Quick Start Manual

7-Port Managed Industrial USB Hub - USB 3.2 Gen 1 5Gbps, ESD Protection
Product ID
5G7AINDRM-USB-A-HUB

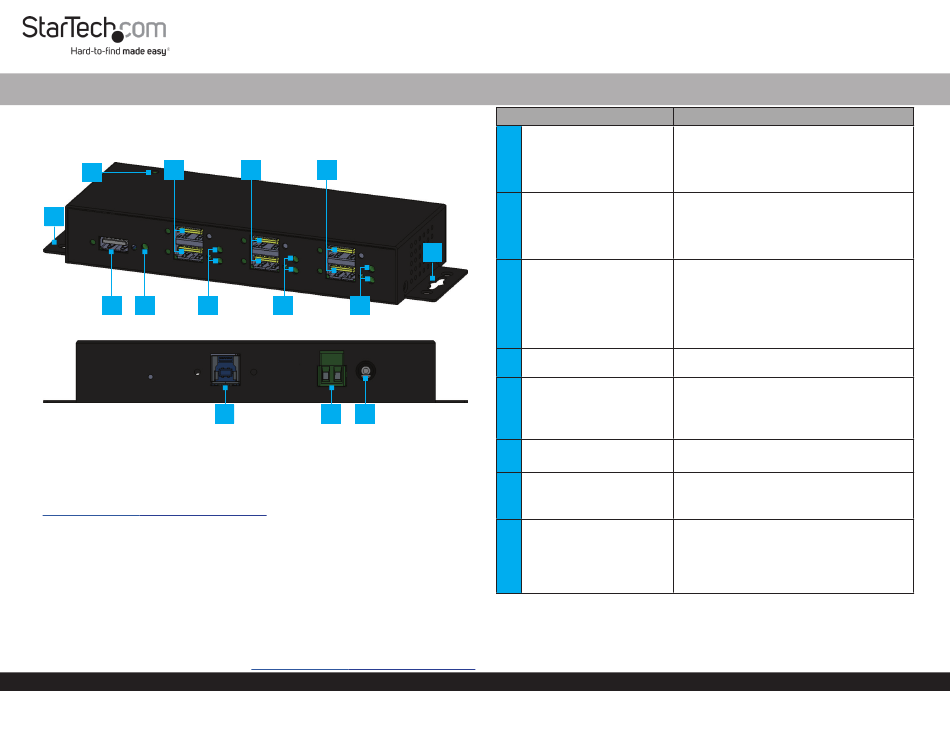

Product Diagram (Side A)
2
5
4
1 3 3
(Side B)
USB Hub Management Software
To utilize the management features of this USB Hub, it is necessary to download and
install the software. To download the USB Hub Management Software, as well as the
accompanying documentation, please visit:
www.StarTech.com/5G7AINDRM-USB-A-HUB
Requirements
Host Computer
•
USB-A Port
•
7-24V DC Power Source
•
Flat head Screwdriver
•
(Optional) Phillips head Screwdriver (for DIN Rail Mounting)
•
For the latest drivers, manuals, product information, technical specifications, and
declarations of conformance, please visit:
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2 2
3 3
6 7 8
www.StarTech.com/5G7AINDRM-USB-A-HUB
Component
USB-A Data Port
1
(Screw Locking)
6x USB-A Data/Charge Port
2
(Screw Locking)
4
3
7x USB Port Status LEDs
4
Mounting Brackets
5
Power LED
USB-B Host Port
6
(Screw Locking)
DC 2-Wire Terminal Block Power
7
Input
8
DC Power Input (Type-M)
Package Contents
USB Hub x 1
•
Terminal Block Connector (Attached) x 1
•
DIN Rail Mounting Bracket (with Mounting Screws) x 2
•
Quick-Start Guide
Function
• Connect USB Peripherals
• USB 3.2 Gen 1 (5Gbps)
• Not Compatible with USB 2.0 (480Mbps)
• Supports up to 5 V/0.9 A (4.5 W) of Power
• Connect USB Peripherals
• USB 3.2 Gen 1 (5Gbps)
• Backward compatible with USB 2.0 (480Mbps)
• BC 1.2 for up to 5 V/2.4 A (12 W) Charging
• Indicates if the Corresponding USB-A Data/Charge
Port is Enabled or Disabled
• Solid Green - USB-A Data/Charge Port Enabled
• Off - USB-A Data/Charge Port Disabled
• Enable/Disable USB-A Data/Charge Ports within the
USB Hub Management Software
• Mount the USB Hub to a wall or the side/underside of
a Desk
• Indicates if the USB Hub is receiving power
• Solid Green - Receiving Power
• Off - Not Receiving Power
• Connect to a USB-A Port on a Host Computer
• USB 3.2 Gen 1 (5 Gbps)
• Connect a +7~24 V DC Power Source
• 90W or Higher Recommended for Maximum
Power Performance
• Connect a +7~24 V DC Power Source
• 90W or higher recommended for maximum
power performance
• Type-M Barrel (5.5 mm Outside Diameter, 2.1 mm
Inside Diameter)
6 ft [1.8 m] USB-A to USB-B Cable x 1
•
Quick-Start Guide x 1
•
Manual Revision: June 22, 2023 2:06 PM
