StarTech.com 5G2A1SGBB-USB-C-HUB Quick Start Manual

2-Port USB-C Hub - 2x USB-A (5Gbps), 100W USB PD Pass-through, GbE, RS-232
Product ID
5G2A1SGBB-USB-C-HUB

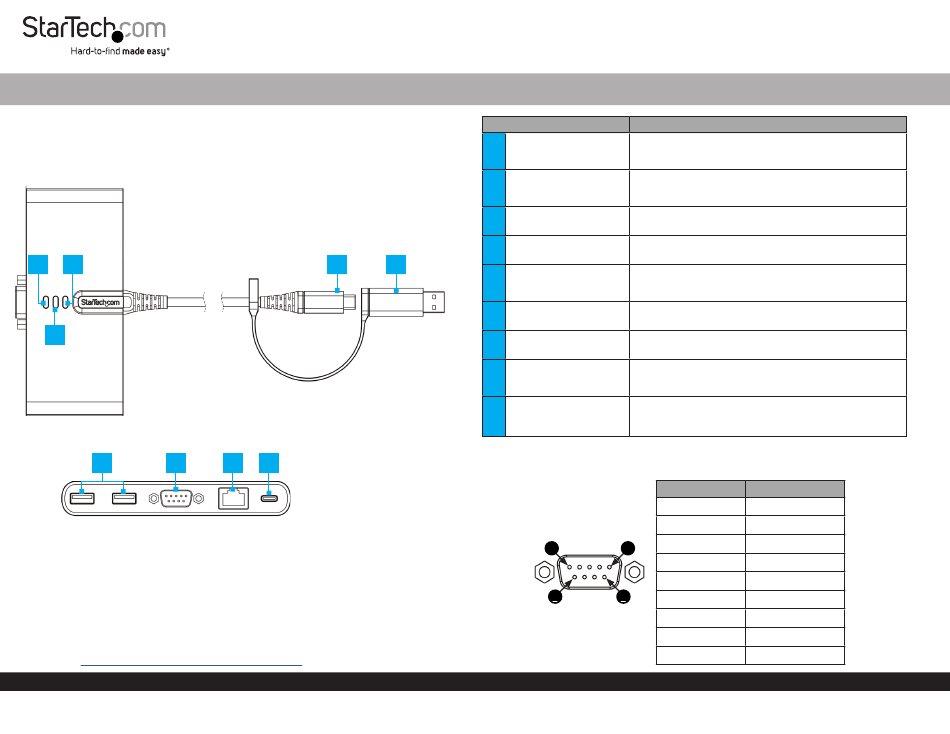

Product Diagram (Side A)
5 3
4
(Side B)
6 7
Requirements
USB Enabled Host Computer
•
Package Contents
USB-C Hub x1
•
Quick-Start Guide x1
•
For the latest drivers/software, technical specifications, and declarations of conformance,
please visit: www.StarTech.com/5G2A1SGBB-USB-C-HUB
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
1 2
8 9
Component
• Connect to a USB-C Port on a Host Computer or to Tethered
Built-In USB Host Cable Built-In USB Host Cable
USB-C to USB-A Adapter
1
(USB-C) (USB-C)
• USB 3.2 Gen 1 (5Gbps)
• Connect to the Built-In USB Host Cable and to a USB-A Port on a
Tethered USB-C to USB-A
Host Computer
2
Adapter
• USB 3.2 Gen 1 (5Gbps)
RS-232 USB Enumeration RS-232 USB Enumeration
• Illuminates Blue to Indicate the RS-232 Functionality of the
3
LED LED
RS-232 Transmitter RS-232 Transmitter
• Illuminates Yellow to Indicate Outbound RS-232
4
LED LED
RS-232 Receiver
• Illuminates Green to Indicate Inbound RS-232
5
LED
2x Downstream USB Ports • Connect to a USB Peripheral Device
6
(USB-A) • USB 3.2 Gen 1 (5Gbps)
RS-232 Serial Port • Connect a Serial Peripheral Device
7
(DB-9) • RS-232
• Connect a CAT 5e/CAT 6 Cable to Establish a Network
Gigabit Ethernet Port
Connection
8
(RJ-45)
• 10/100/1000 Mbps
100W Power Delivery Pass-
• Connect a USB-C Power Adapter
9 Through Port • USB Power Delivery 3.0
(USB-C) • 100W, with Up to 85W Available for Charging
Pin-Out Diagram (DB-9 Serial Port)
1 5
6 9
Quick-Start Guide
Function
USB Hub is in an Operational State
Transmissions
Transmissions
Pins Signal
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
Manual Revision: September 5, 2023 4:59 PM
