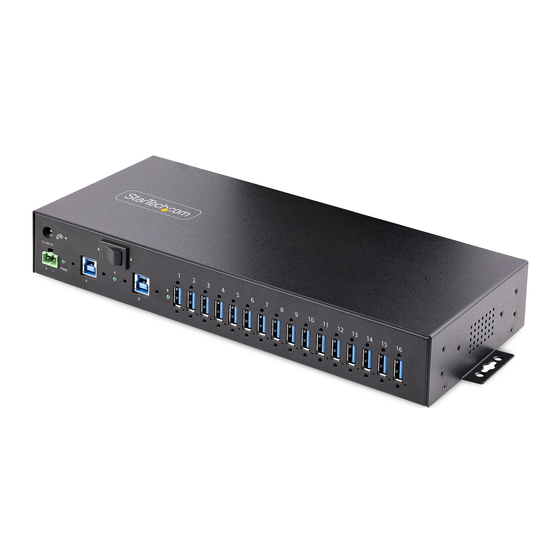

16-Port Industrial USB 3.2 Gen 1 Hub - ESD and Surge Protection - Dual Host
Product ID
5G16AINDS-USB-A-HUB
Product Diagram
1
2
3
4
Component
• Connect a
1
DC Power Input
• Connect a
DC 2-Wire Terminal Block Power
2
Input
• Indicates if the USB Hub is receiving power from either
3
Power LED
• Connect to a USB-A Port on a Host Computer
USB Host Port A
4
(Screw Locking, USB-B)
• Connect to a USB-A Port on a Host Computer
USB Host Port B
5
(Screw Locking, USB-B)
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
6
5
7
Function
+12~24 V
DC Power Source
• 120W or higher recommended for maximum
power performance
+12~24 V
DC Power Source
• 120W or Higher Recommended for maximum
power performance
a USB Host or a DC Power Source
• Solid Green - Receiving Power
• Off - Not Receiving Power
• USB 3.2 Gen 1 (5 Gbps)
• USB 3.2 Gen 1 (5 Gbps)
8
9
6
Host Device Port Switch
7
USB Host Selection LEDs
16x USB Data/Charge Ports
8
(Screw Locking, USB-A)
9
1U Mounting Brackets
Package Contents
USB Hub x 1
•
10 ft [3 m] USB-A to USB-B Cable x 1
•
Terminal Block Connector (Attached)
•
Din Rail Mounting Brackets (with Mounting Screws) x 2
•
Quick-Start Guide x 1
•
Quick-Start Guide
• Switches Hub Connectivity between USB Host Ports
A & B
• Indicates which Host Device is currently selected
• Solid Green - Host Device Selected
• Off - Host Device Not Selected
• Connect USB Peripherals
• USB 3.2 Gen 1 (5 Gbps)
• BC 1.2 Charging with 5V 2.0A Maximum or 1.5A
Simultaneous
• Mount the USB Hub into 1U of Rack Space
• Mount the USB Hub to a wall or the side/underside of
a Desk
Manual Revision: March 21, 2023 11:11 AM
