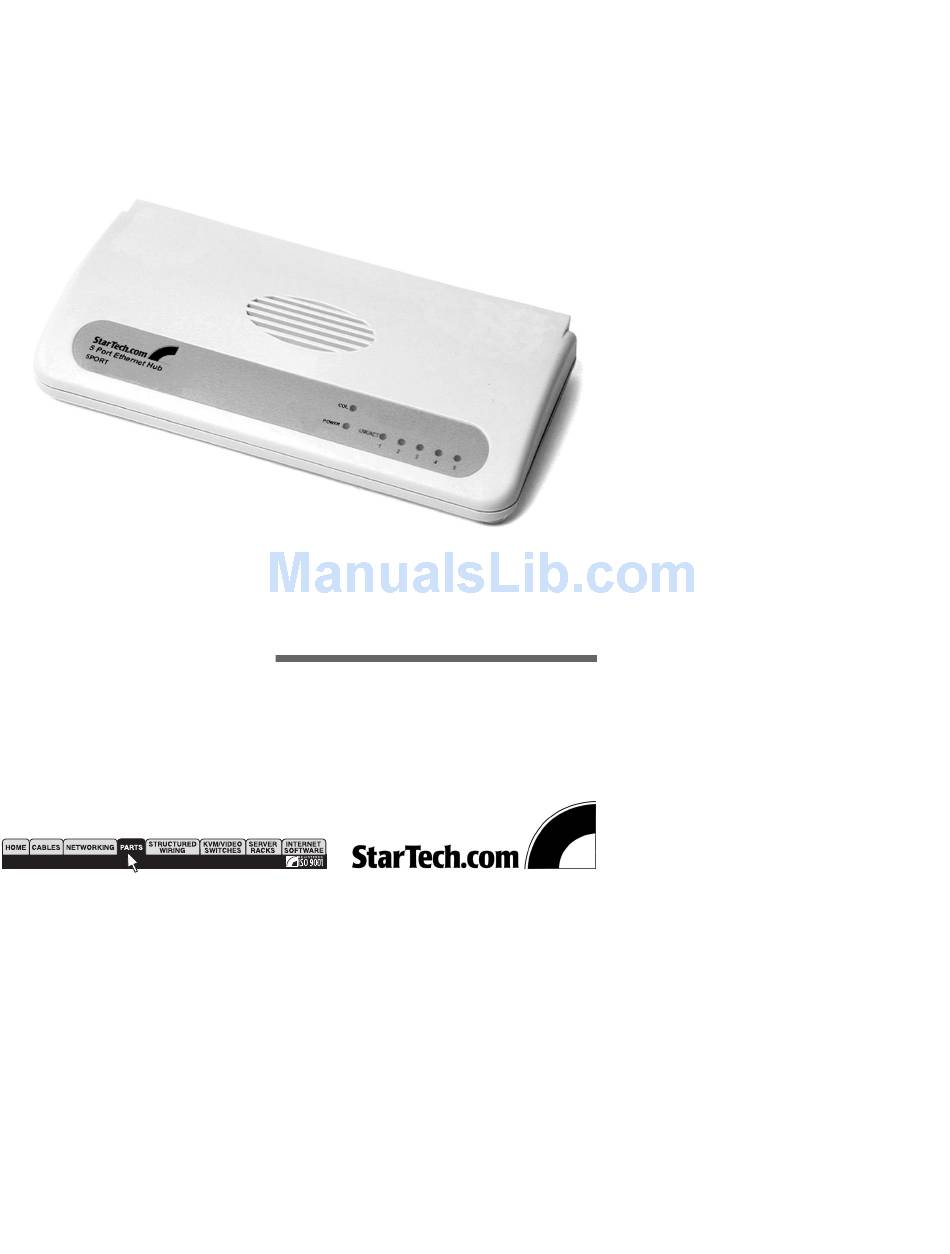

Page 1: Ethernet Hub

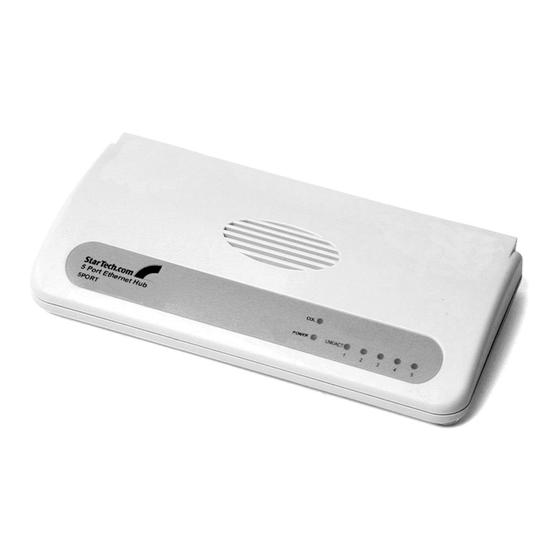

Ethernet Hub 5 Port 10BaseT Micro Hub Installation Manual 5PORT... -
Page 2: Specifications
Overview The StarTech.com 5 Port 10BaseT micro hub may be small in size, but it is not small on value. With 5 UTP/STP ports, and the ability to be daisy chained with up to 4 other hubs, the 5PORT delivers lots of expandability for the future. - Page 3 Installation Physical Description Panel 5 Port Ethernet Hub 5PORT Power LED Power Connector Status Power is supplied Power Collision detected in this segment A valid link is LNK/ACT (Link/Activity) Flash Data packets received No link is established Operating Environment This hub must be installed and operated within the limits of the specified operating temperature and humidity (see Specifications).
-
Page 4: Troubleshooting
Connecting Network Devices 1. Connect a Category 5 patch cable to the RJ45 jack on your computer’s network card. (The RJ45 jack looks like an oversized phone jack) 2. Connect the other end of the cable to port 1, 2, 3, 4 or 5 on the hub (not the uplink port) 3.
