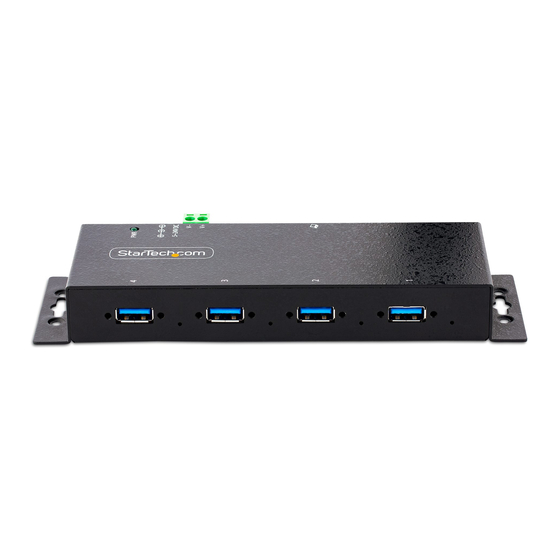

StarTech.com 5G4AINDNP-USB-A-HUB Quick Start Manual

4-Port Industrial USB Hub - 15kV/8kV Air/Contact ESD Protection - Mountable
Product ID
5G4AINDNP-USB-A-HUB
Product Diagram
1
5
Package Contents
USB Hub x 1
•
6 ft [1.8 m] USB-A to USB-B Cable x 1
•
Terminal Block Connector (Attached)
•
DIN Rail Mounting Brackets (with Mounting Screws) x 2
•
Quick-Start Guide x 1
•
Requirements
Computer
•
USB-A Port
•
5-24V DC Power Source
•
For the latest drivers, manuals, product information, technical specifications, and
declarations of conformance, please visit:
www.StarTech.com/5G4AINDNP-USB-A-HUB
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
2 3
4

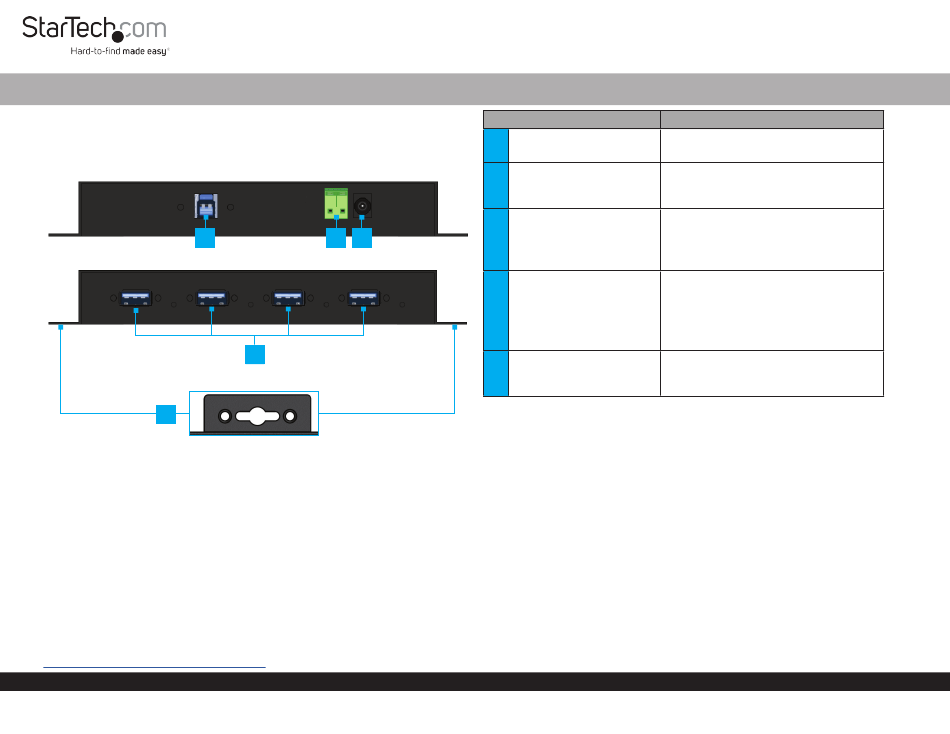

Component
USB Host Port
1
(Screw Locking, USB-B)
DC 2-Wire Terminal Block Power
2
Input
3
DC Power Input
4x USB Data/Charge Ports & Port
4
Connectivity LEDs
(Screw Locking, USB-A)
5
Mounting Brackets
Installation
Notes:
Connect the Power Source after all the other installation steps have been completed.
•
There are two ways to power the USB Hub.
•
Using an external DC Power Adapter or a Terminal Block Power Source.
Voltage (+5 - 24 V DC).
Connect the USB Ports
Connect up to four USB peripherals to the Screw Locking USB Data/Charge
1.
Ports, located on the USB Hub.
USB-A to USB-B Cables, to connect a USB port on each Computer to the
Use the
2.
USB Host Port, located on the USB
The Computer will automatically detect the device and install the required
•
drivers for the USB Hub.
Quick-Start Guide
Function
• Connect to a USB-A Port on a Host Computer
• USB 3.2 Gen 1 (5 Gbps)
• Connect a +5~24 V DC Power Source
• 30W or higher recommended for maximum
power performance
• Connect a +5~24 V DC Power Source
• 30W or higher recommended for maximum
power performance
• Connect USB Peripherals
• USB 3.2 Gen 1 (5 Gbps)
• BC 1.2 for up to 5 V/1.5 A (7.5 W) Charging
• LED illuminates green when a device is
actively connected to the host computer
• Wall mount the USB Hub
• Mount the USB Hub to the side/underside of
a Desk
Hub.
Manual Revision: June 3, 2022 4:17 PM
