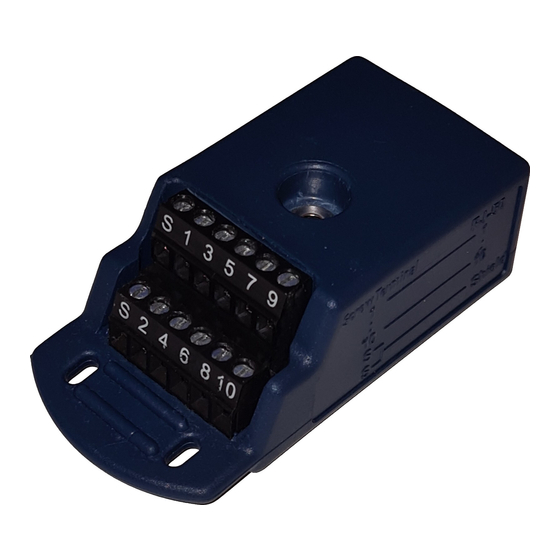

  • Page 2 NI 9949 RJ-50 to Screw-Terminal Accessory This user guide describes the features of the National Instruments 9949 RJ-50 to Screw-Terminal Accessory. You can use the NI 9949 to provide screw-terminal access to devices that use RJ-50 cables, such as the NI 9237 with RJ-50 and the SCXI-1314T.
  • Page 3 Refer to the device manual for information about device pin assignments. Note National Instruments does not recommend using an RJ-45 cable with the NI 9949 because it can physically damage pins 1 and 10 on the device, and thus permanently disable shunt calibration no matter what connector you use.
  • Page 4 NI 9949. Figure 4. RJ-50 and Screw-Terminal Connectors on the NI 9949 Specifications Weight ............ 43 g (1.5 oz) Operating temperature......–40 to 70 °C © National Instruments Corporation NI 9949 Accessory User Guide...
  • Page 5 Thailand 662 278 6777, Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks.
