E-Vision PRO Series User Manual

PRO-line IP cameras
Security camera
User manual
CAUTION
Thank you for purchasing this product. Before attempting to connect or
use the product, read the instructions carefully and keep the manual
safe for future reference.
HAZARD. DO NOT OPEN
WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT REMOVE THE COVER OR REAR PANEL.
THERE ARE NO PARTS INSIDE THAT CAN BE REPAIRED
BY THE USER. FOR TECHNICAL SUPPORT, CALL IN
QUALIFIED PERSONNEL
- Connect to a power supply with the specified ratings.
- Do not operate the product incorrectly, subject it to knocks or vibrations, or
strong pressure that can damage the unit.
- Do not use corrosive detergents to clean the camera's main body. Where
necessary, use a soft, dry cloth to clean it; for stubborn dirt, use a mild cleaner.
You can use cleaners designed for use on quality furniture.
- Do not aim the camera directly at extremely bright objects, such as the sun, as
this could damage the image sensor.
- Install the camera following the instructions. Do not turn the camera upside
down, otherwise you will get an upside-down image.
- Do not operate the unit if the temperature, humidity level or power supply do not
match the specified ranges or values.
- Keep away from sources of heat like radiators, hot air vents, stoves and such like.
- This document contains the product's operating instruc ions. It is not a quality
warranty. We reserve the right to correct misprints and inconsistencies wi h the
latest version, and introduce software updates and improvements, interpretation
and product changes. These changes will be published in the latest version
without prior notice.
- Using the product involves using content from Microsoft, Apple and Google. The
images and screens herein are given to illustrate the product's use. The
trademarks, logos and other intellectual property rela ing to Microsoft, Apple and
Google are the property of said respective companies.

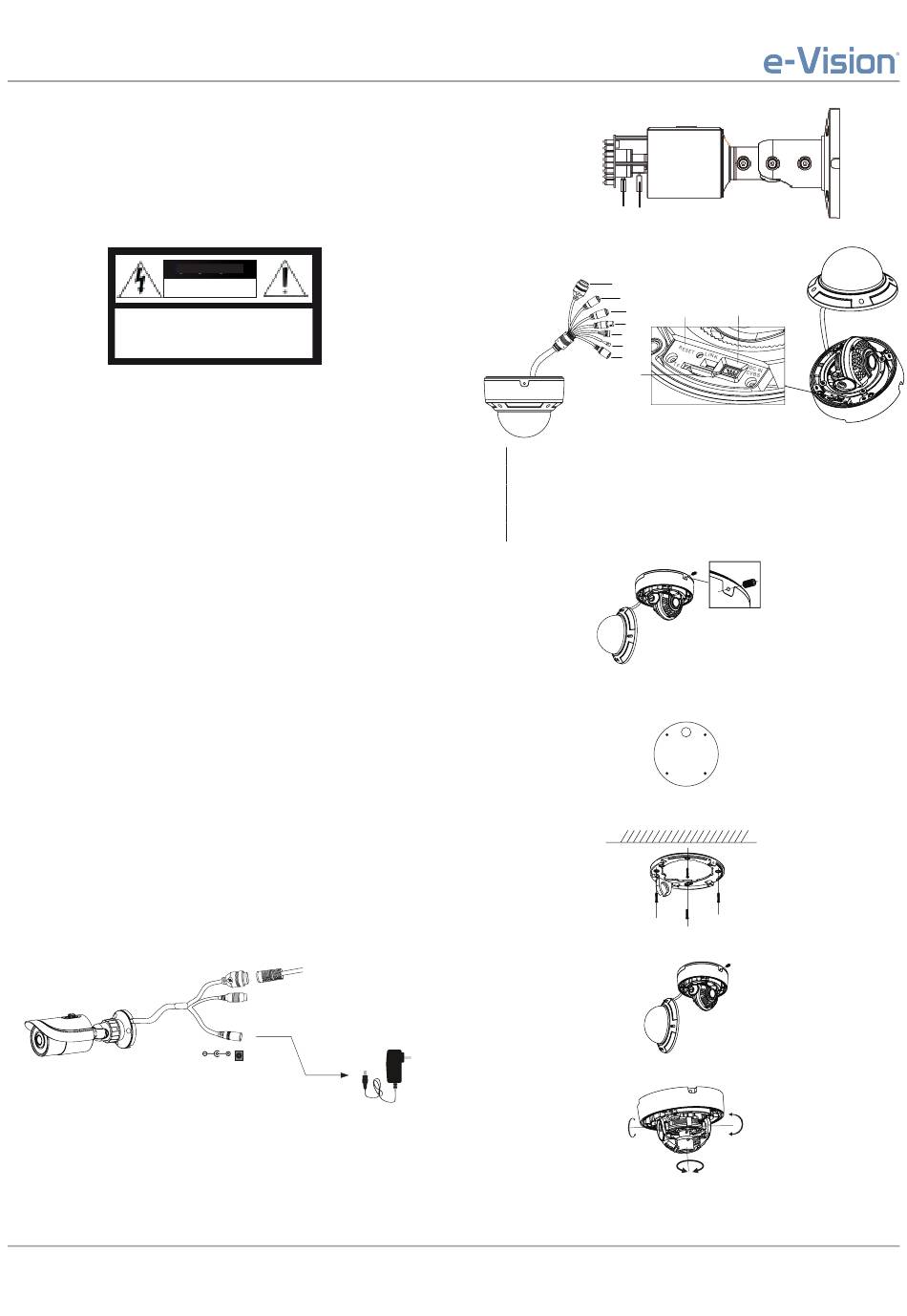

Installation on an Ethernet network
The steps to connect the unit are illustrated below:
Step 1: Connect the monitor and network to the device.
Step 2: Connect the power supply.
Step 3: Install the device.
► Direct access from Internet Explorer
The default network settings are given below:
IP Address: 192.168.226 201
Subnet Mask: 255.255.255.0
Gateway: 192.168.226.1
INSTRUCTIONS AND PART INSTALLATION PROCEDURE
Note: the housings and cables illustrated are given as an example only.
Bullet cameras
1. Fasten the camera bracket in the desired location using the screws.
2. Loosen the horizontal adjustment ring, adjust to the required
position, then tighten the ring back up.
Loosen the angle fastening screw, adjust to the required position,
then tighten the screw back up.
3. On varifocal models, adjust the zoom and focus.
On some models, the adjustment screws are on the inside: open the
bottom panel or unscrew the front ring to gain access.
WARNING
ELECTRIC SHOCK
HTTP:80
Data Port:9008
Focus Zoom
Dome cameras
1
2
3
4
5
6
7
8
Network cable
1
2 Microphone cable
3 Headphon cablees
Video output
4
5 Alarm Input-Output
1. Loosen the screws to open the lower dome, then loosen the locking
screw to remove the mounting base.
2. Drill the 4 holes for the screws and make the hole for the cables (if you
are planning to feed the cables through the mounting base) using the
template.
3. Fasten the base in the desired position using the screws.
4. Secure the camera to the mounting base using the locking screw.
Tilt
0~-75°
5. Adjusting the three axes. Before adjusting, view the camera
image on a monitor and then adjust it as shown in the figure to
achieve the best angle.
10
9
6 RS-485 cable
Power cable
7
TF card slot
8
9 Reset hole
CVBS/DC IN port for testing
10
Locking grub screw
Ceiling or wall
Vertical rotation 0~-360°
Pan 0~-360°
